Memory Seat/Mirror Module Connector End View (C1)

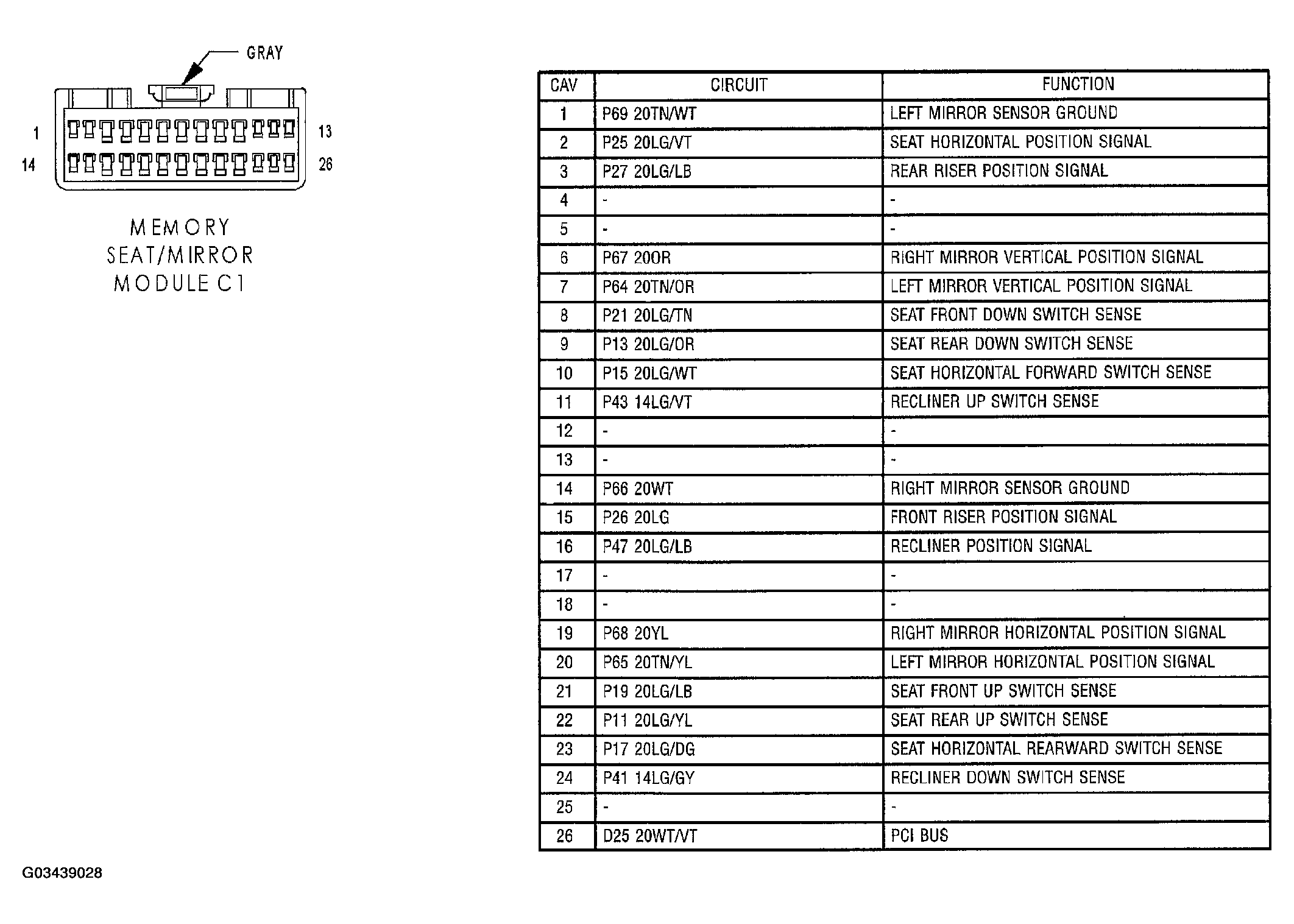

Fig 1: Memory Seat/Mirror Module Connector End View (C1)
G03439028Courtesy of DAIMLERCHRYSLER CORP.
