Left Sliding Door Control Module Connector End View (C1)

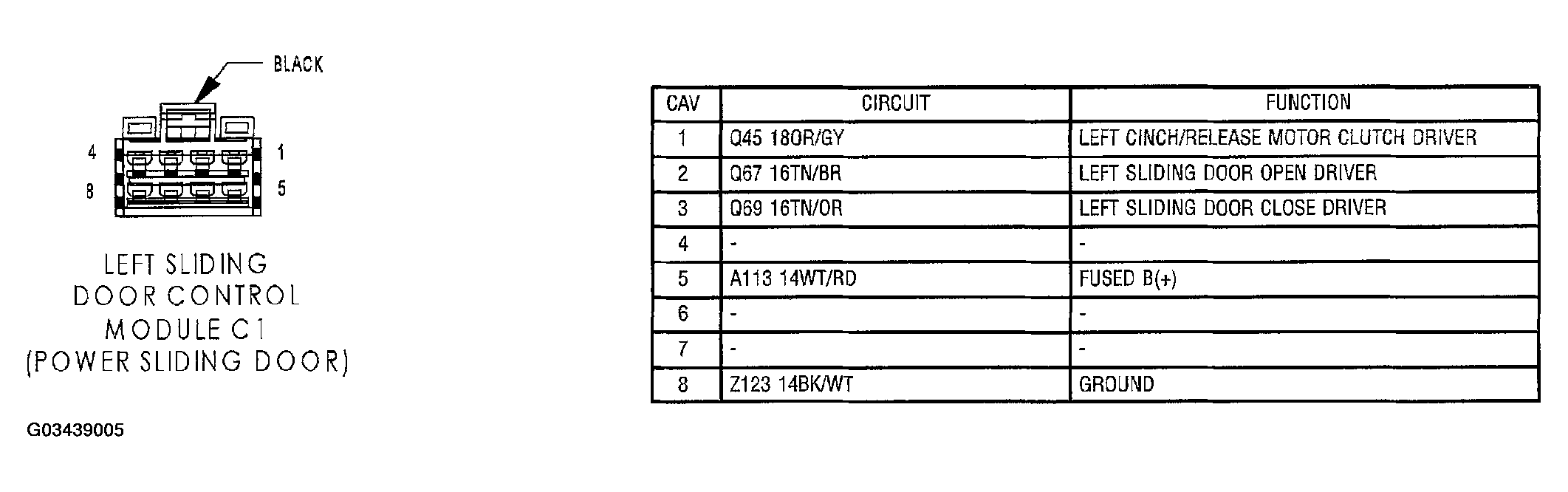

Fig 1: Left Sliding Door Control Module Connector End View (C1)
G03439005Courtesy of DAIMLERCHRYSLER CORP.
