Home › Dodge and Ram › 2003 › Neon SE, Automatic › Repair and Diagnosis › Electrical › Body Electrical › Connector End Views › Connector Pin - Out › Powertrain Control Module (2.0L Next Generation Controller) Connector End View (C3)

Powertrain Control Module (2.0L Next Generation Controller) Connector End View (C3)

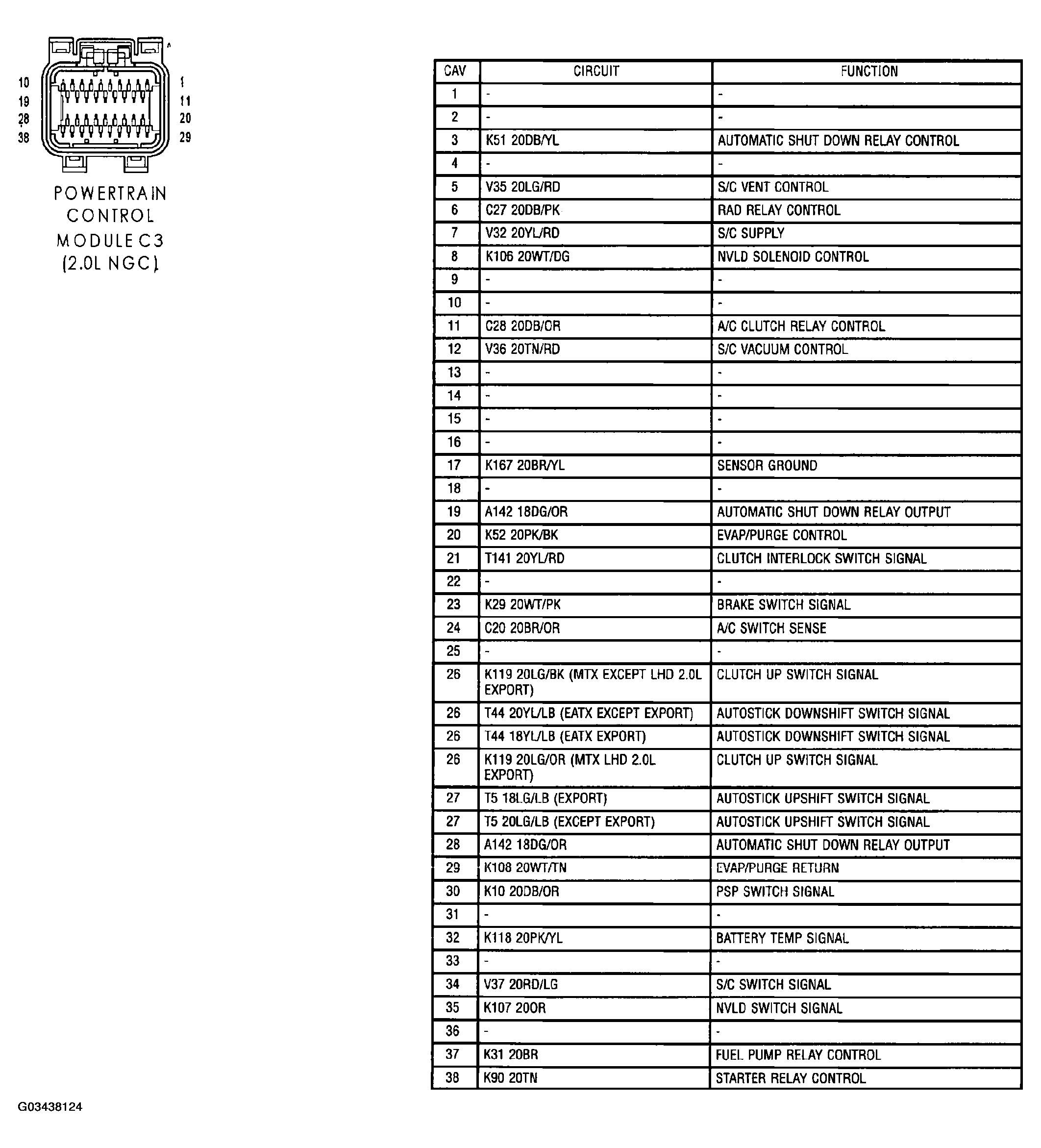

Fig 1: Powertrain Control Module (2.0L Next Generation Controller) Connector End View (C3)
G03438124Courtesy of DAIMLERCHRYSLER CORP.
