Brake Light Switch Connector End View
Brake Light Switch Connector End View

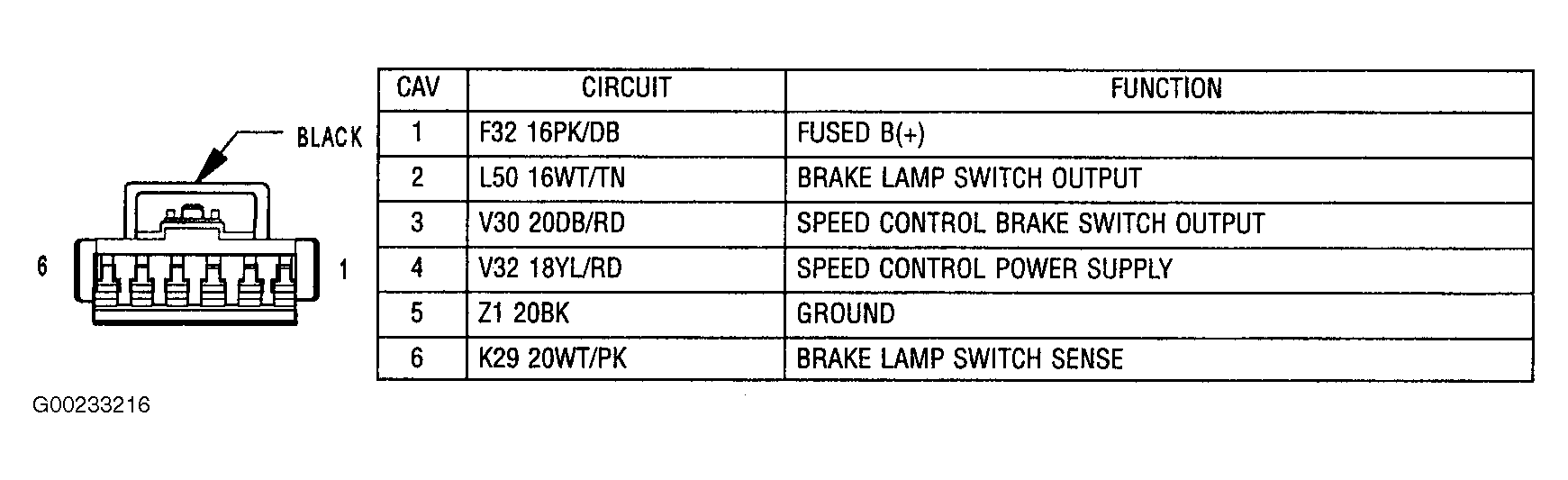

Fig 1: Identifying Brake Light Switch Connector Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
