Ram Van B2500, Van Cargo Extended, 5.2 T
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Self-Diagnostics
›
Connector Identification
›
CLOCKSPRING Connector End View
CLOCKSPRING Connector End View

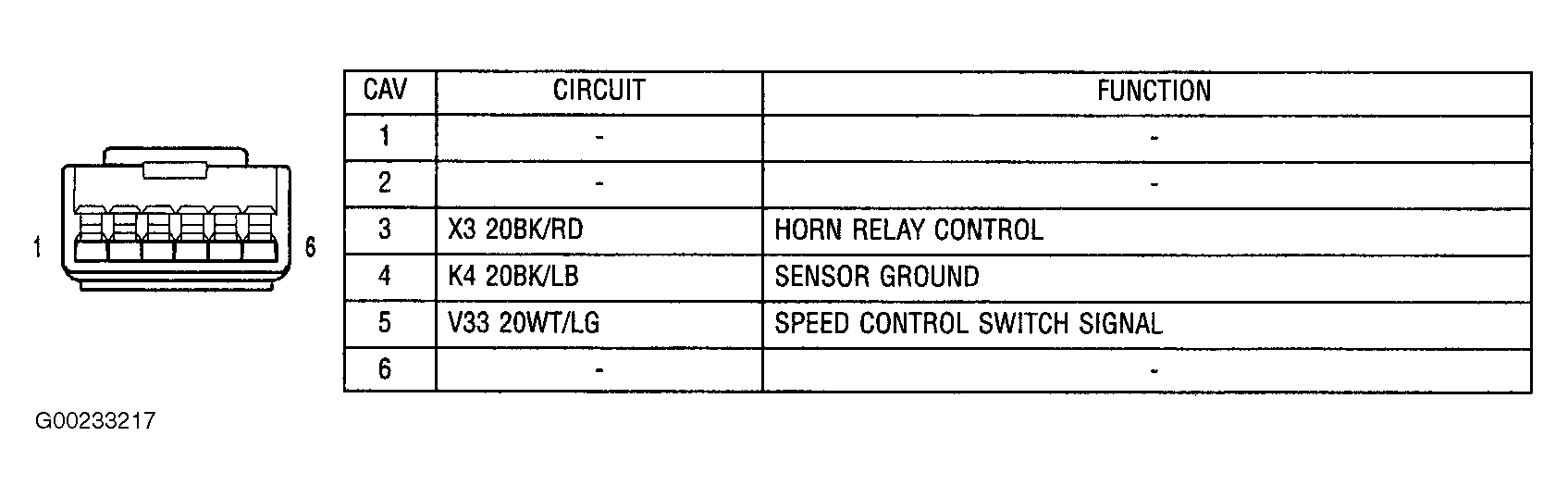

Fig 1: Identifying Clockspring C1 Connector Terminals
Courtesy of CHRYSLER CORP.

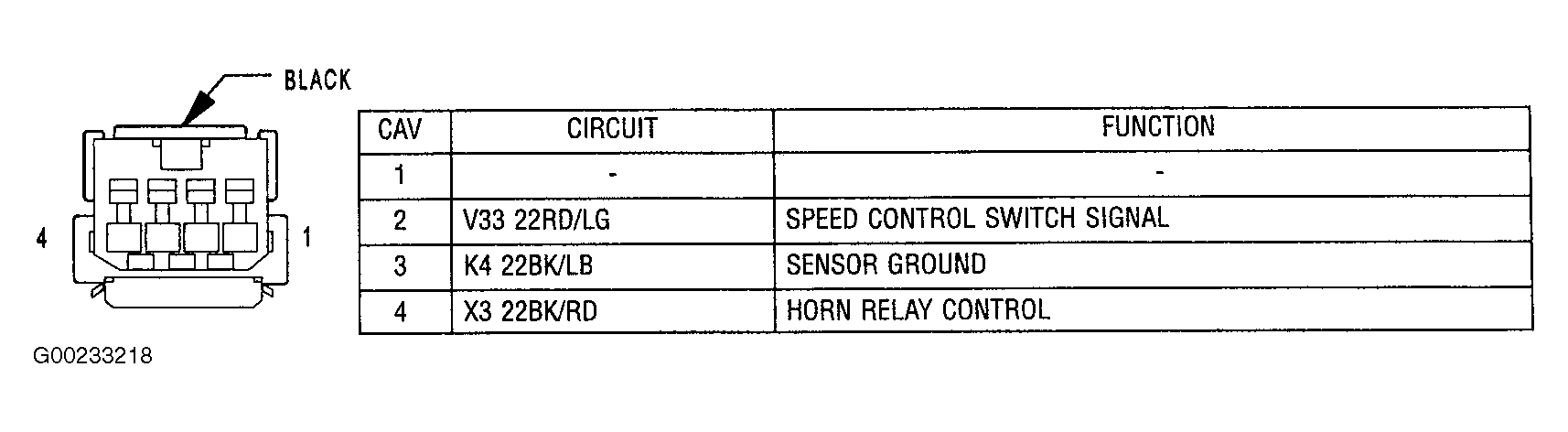

Fig 2: Identifying Clockspring C3 Connector Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
