Ignition Switch Connector End View

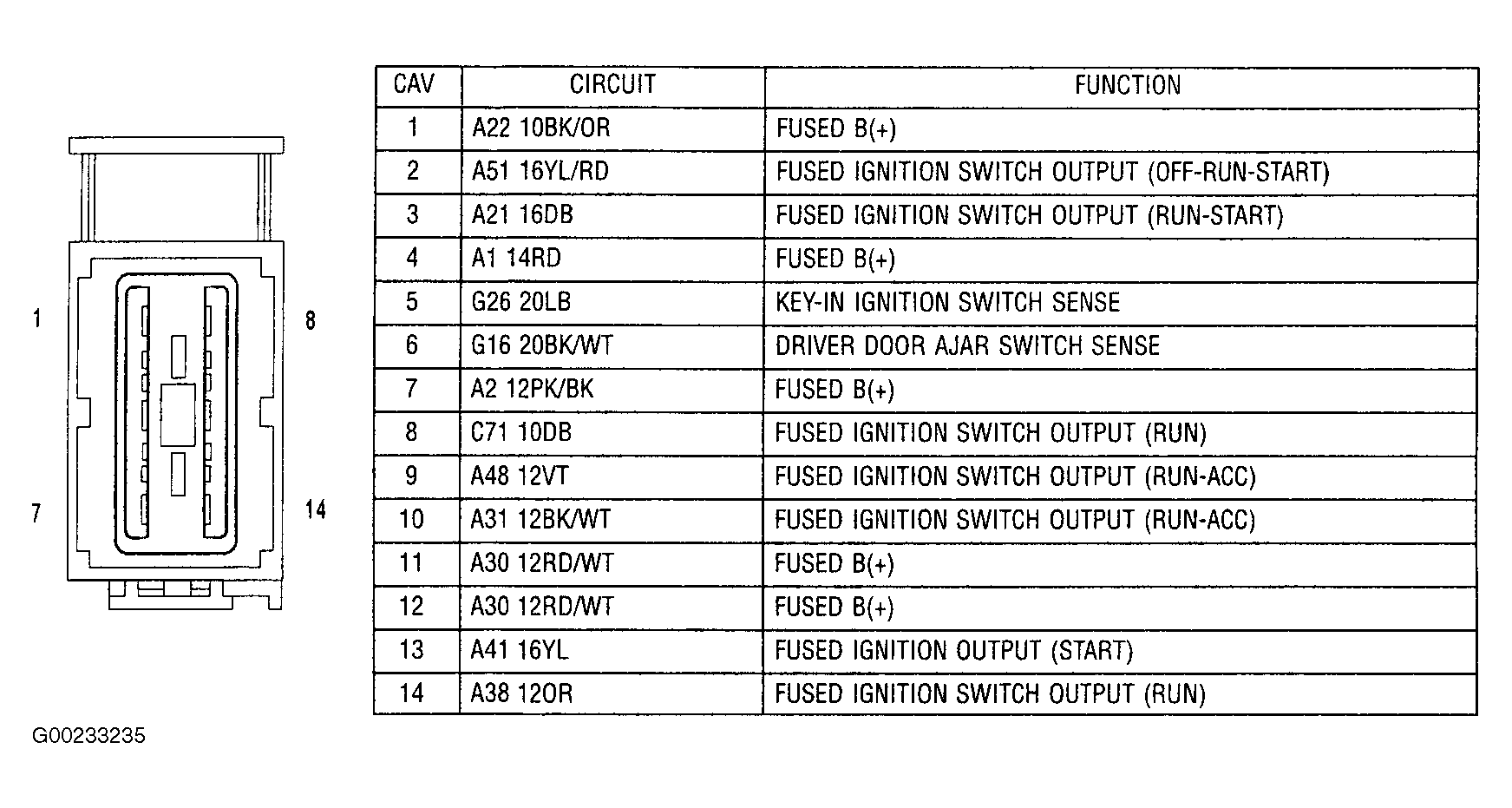

Fig 1: Identifying Ignition Switch Connector Terminals
G00233235Courtesy of CHRYSLER CORP.
