Oxygen Sensor Connector End View
Oxygen Sensor Connector End View

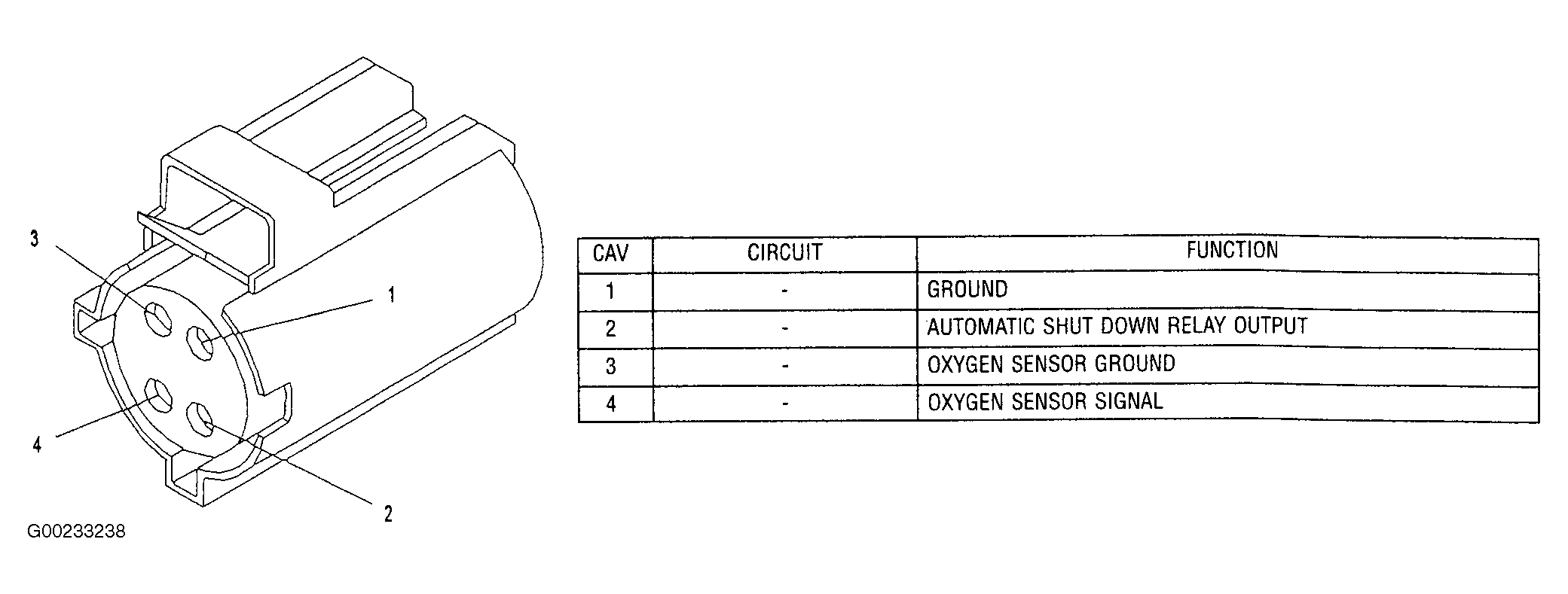

Fig 1: Identifying Oxygen Sensor Connector Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
