Transmission Range Sensor Connector End View
Transmission Range Sensor Connector End View

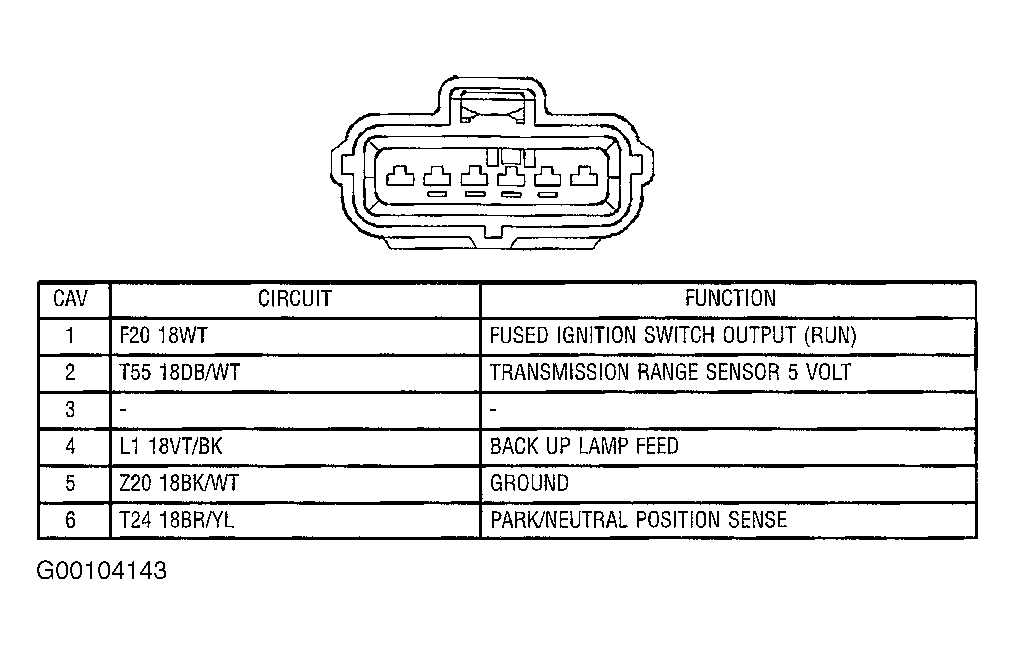

Fig 1: Identifying Transmission Range Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
