DTC P0141: O2 Sensor 1/2 Heater Failure

NOTE: For component location, see COMPONENT LOCATIONS . For connector identification, see CONNECTOR IDENTIFICATION . For circuit identification and wiring diagram, see WIRING DIAGRAMS . If Powertrain Control Module (PCM) is replaced, PCM must be reprogrammed. See PROGRAMMING .

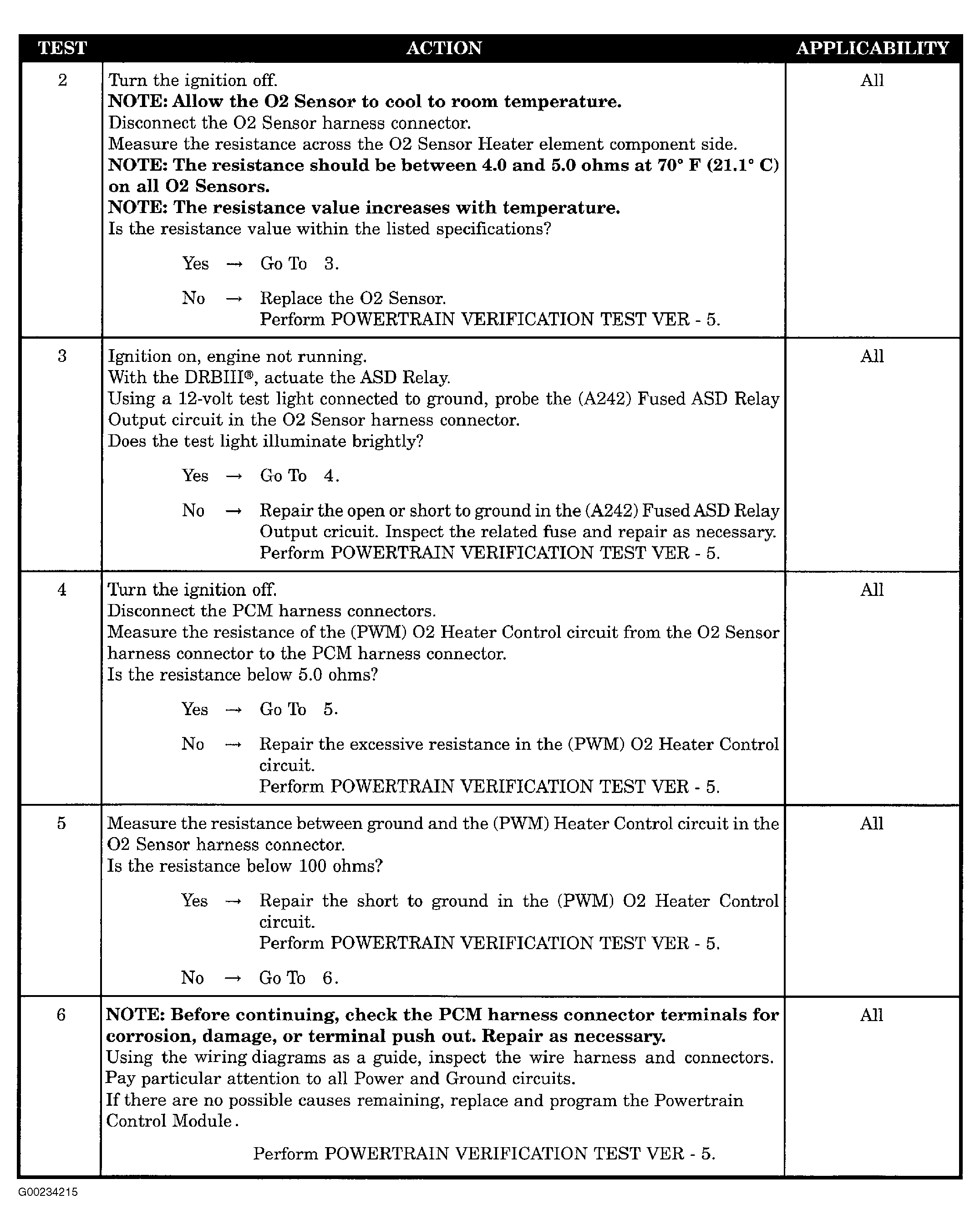

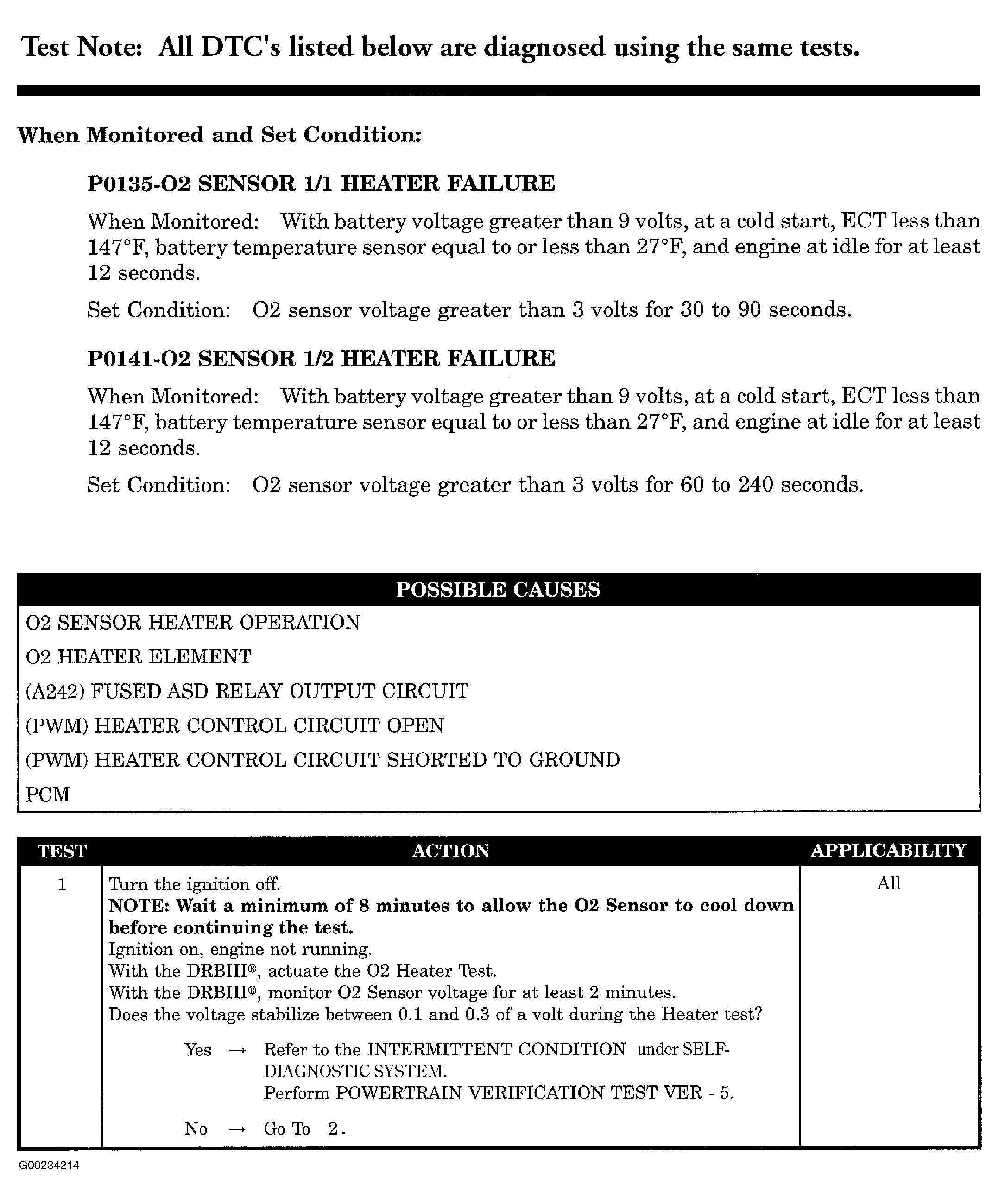

For testing procedures, see Figure and Figure .
