DTC P0171: 1/1 O2 Sensor Fuel System Lean

NOTE: For component location, see COMPONENT LOCATIONS . For connector identification, see CONNECTOR IDENTIFICATION . For circuit identification and wiring diagram, see WIRING DIAGRAMS . If Powertrain Control Module (PCM) is replaced, PCM must be reprogrammed. See PROGRAMMING .

For testing procedures, see Fig 1-Fig 4 .

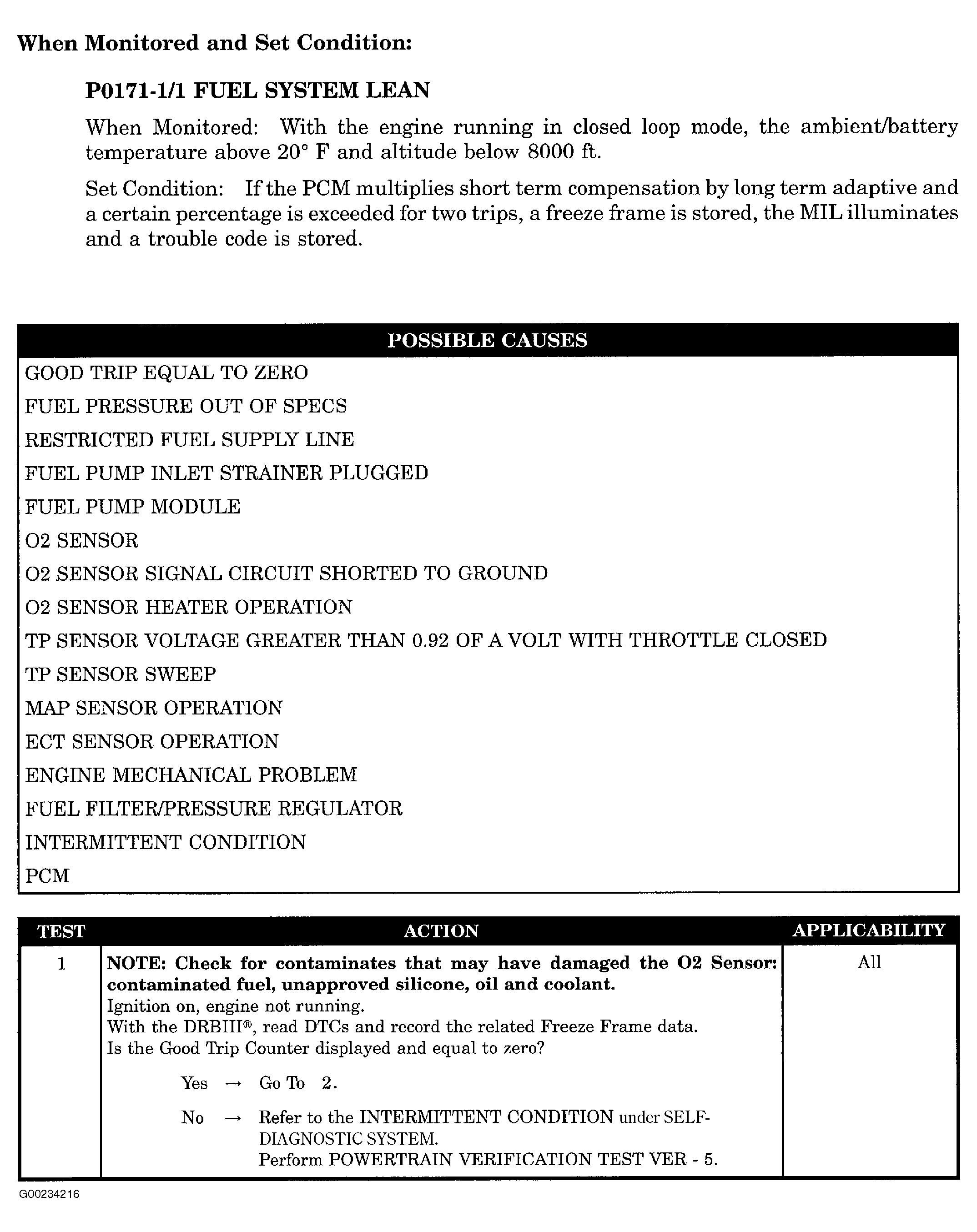

Fig 1: DTC P0171: 1/1 Fuel System Lean - Step 1 (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

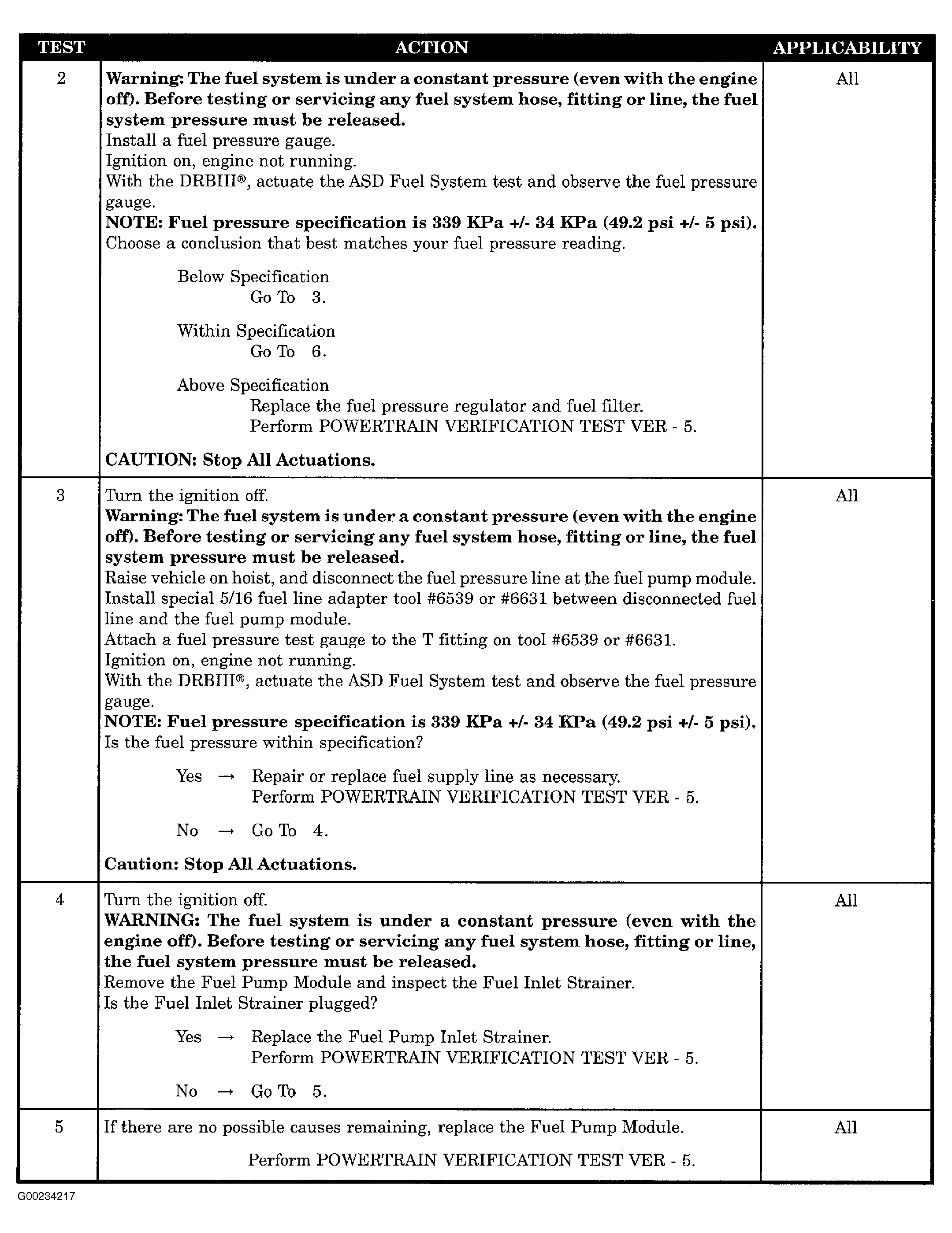

Fig 2: DTC P0171: 1/1 Fuel System Lean - Steps 2-5 (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

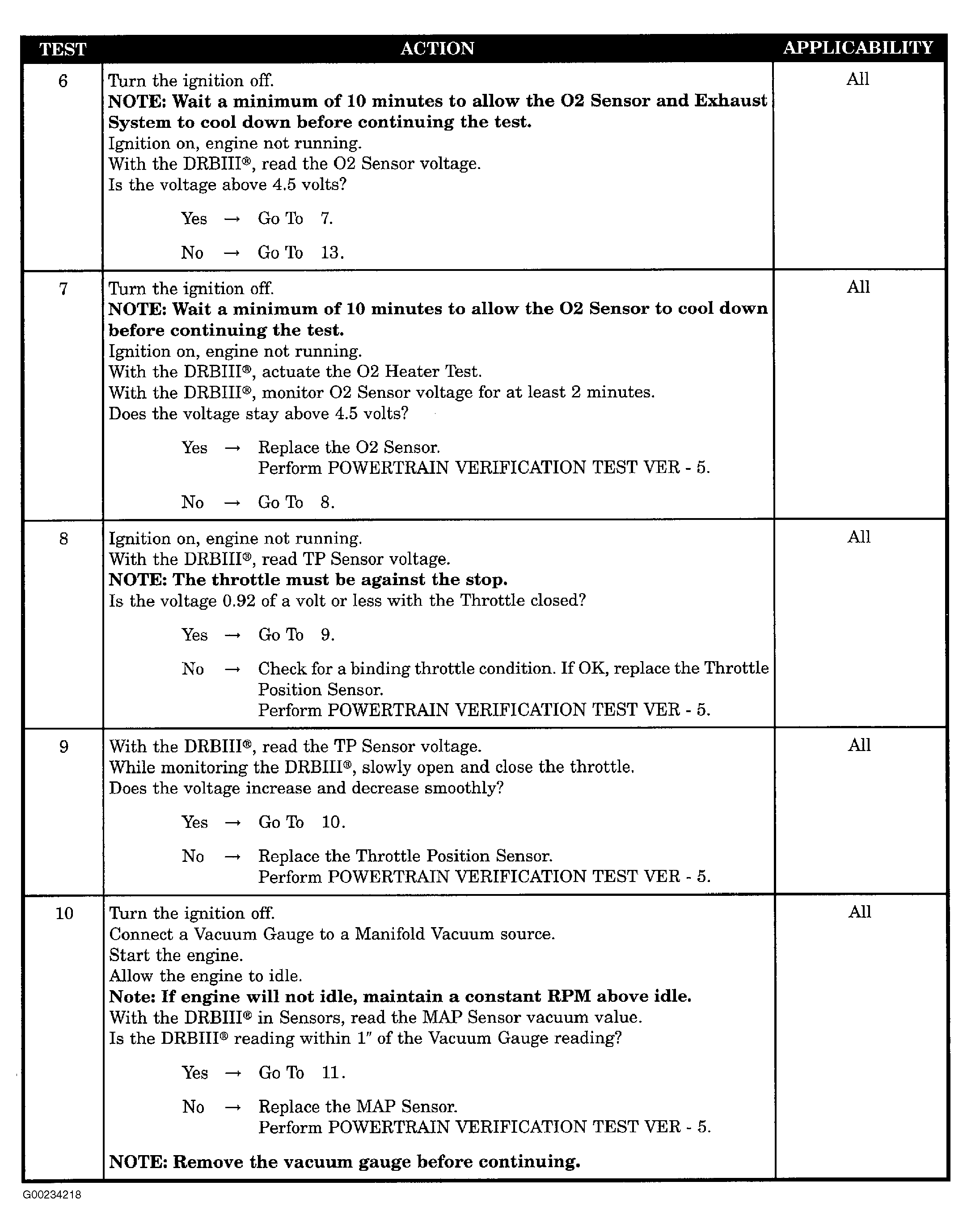

Fig 3: DTC P0171: 1/1 Fuel System Lean - Steps 6-10 (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

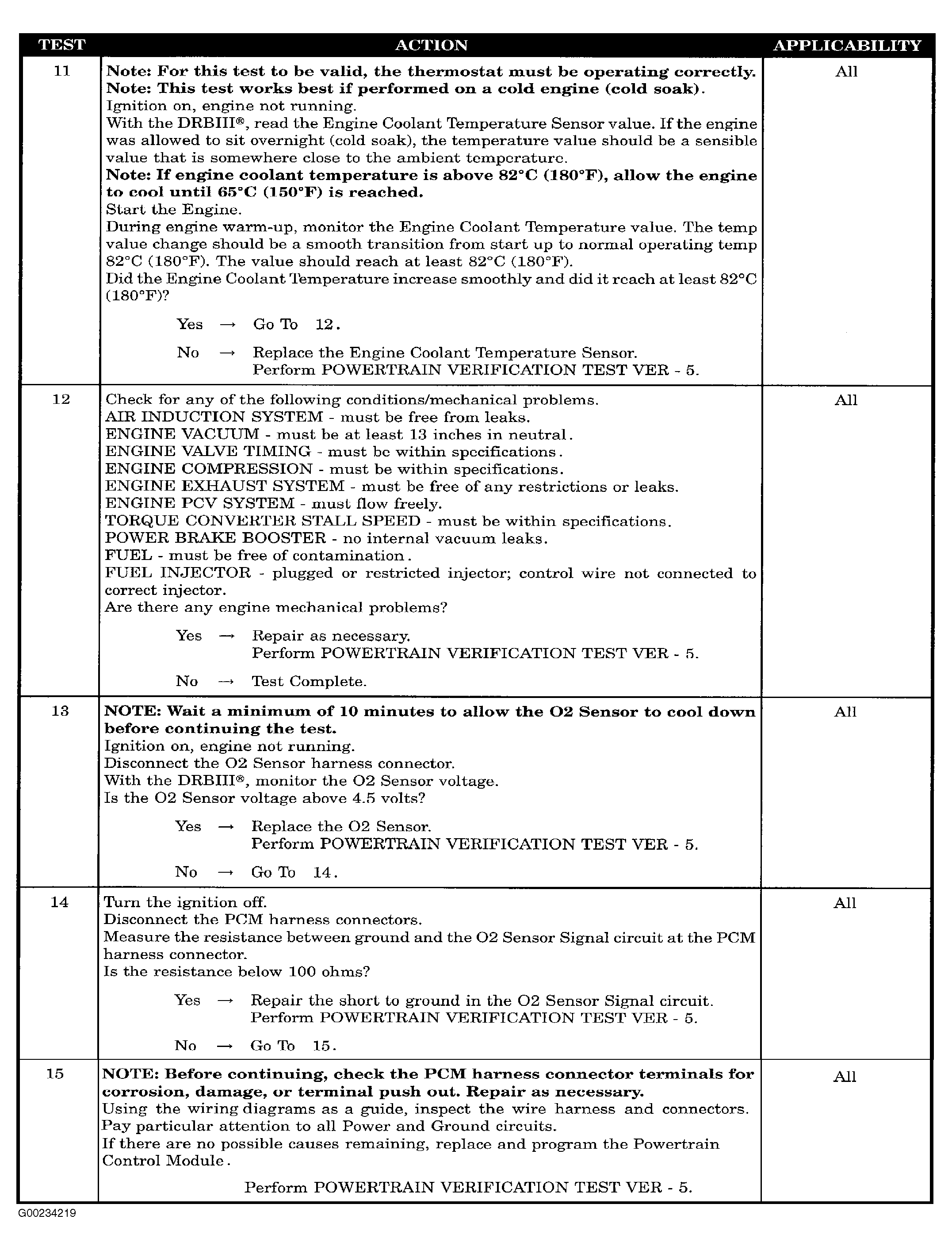

Fig 4: DTC P0171: 1/1 Fuel System Lean - Steps 11-15 (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
