DTC P1195: O2 Sensor 1/1 Slow During Catalyst Monitor

NOTE: For component location, see COMPONENT LOCATIONS . For connector identification, see CONNECTOR IDENTIFICATION . For circuit identification and wiring diagram, see WIRING DIAGRAMS . If Powertrain Control Module (PCM) is replaced, PCM must be reprogrammed. See PROGRAMMING .

For testing procedures, see Fig 1 and Fig 2 .

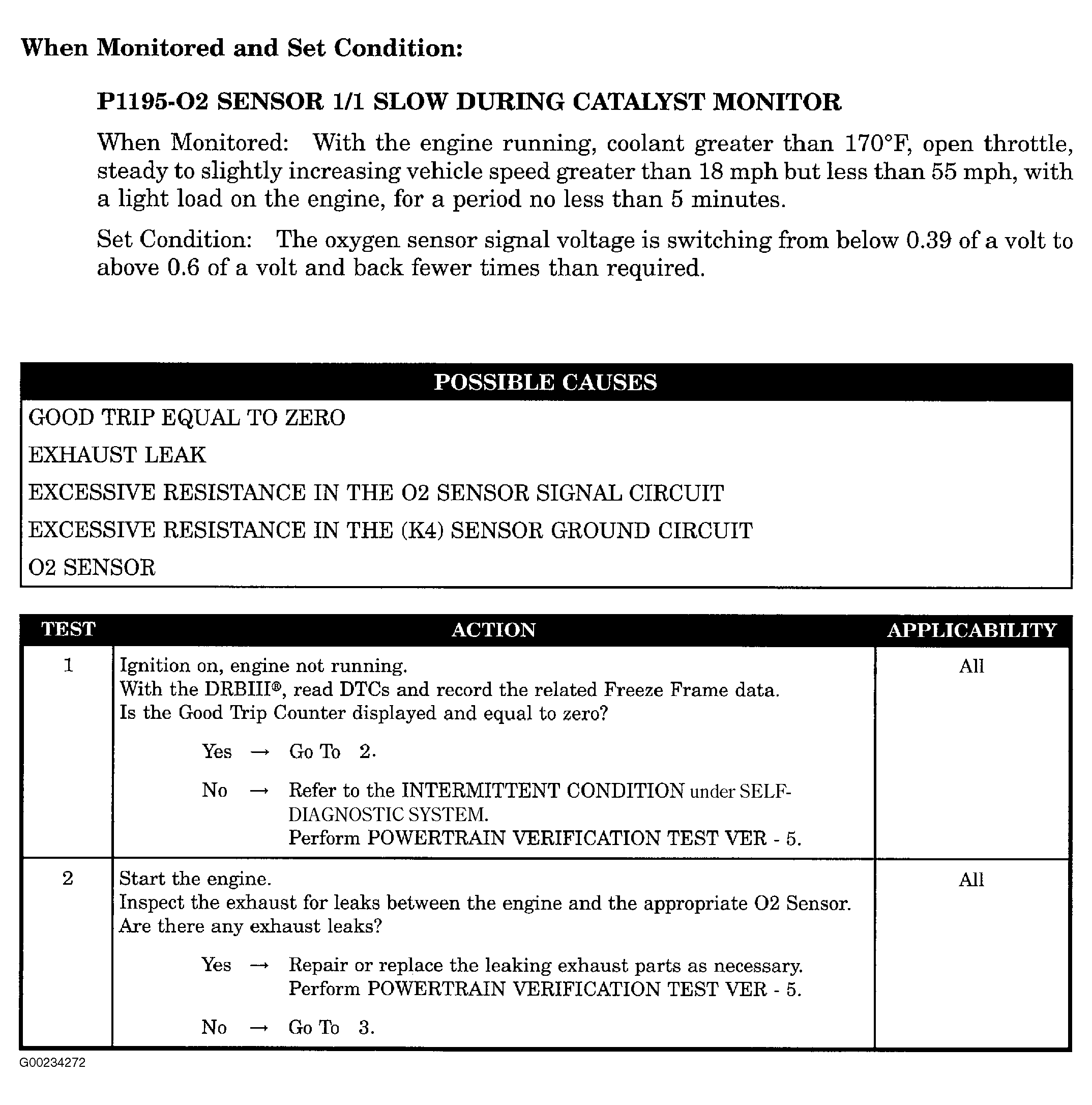

Fig 1: DTC P1195: O2 Sensor 1/1 Slow During Catalyst Monitor - Steps 1 & 2 (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

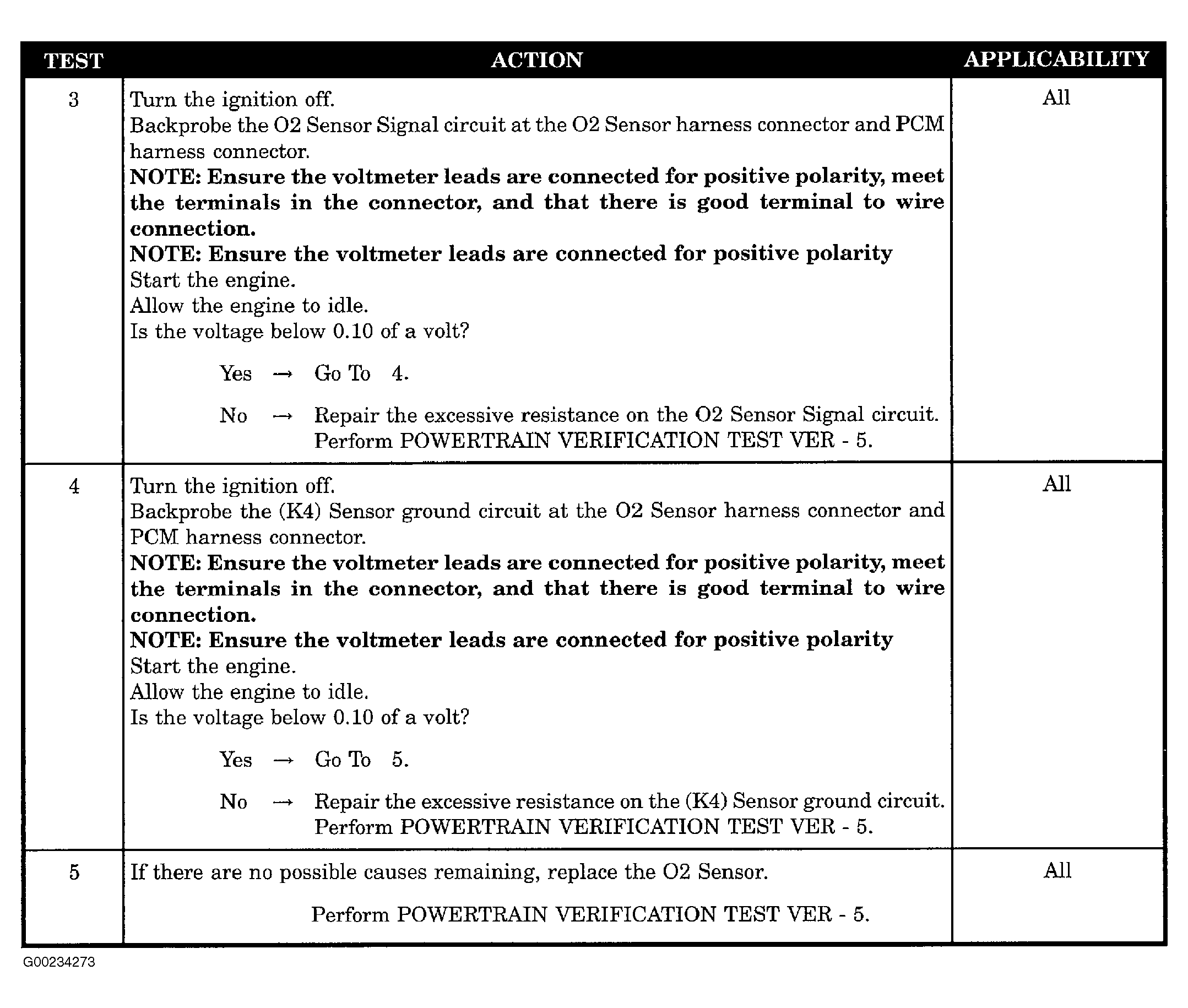

Fig 2: DTC P1195: O2 Sensor 1/1 Slow During Catalyst Monitor - Steps 3-5 (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
