Automatic Transmission Verification Test VER-1

For testing procedures, see Fig 1.

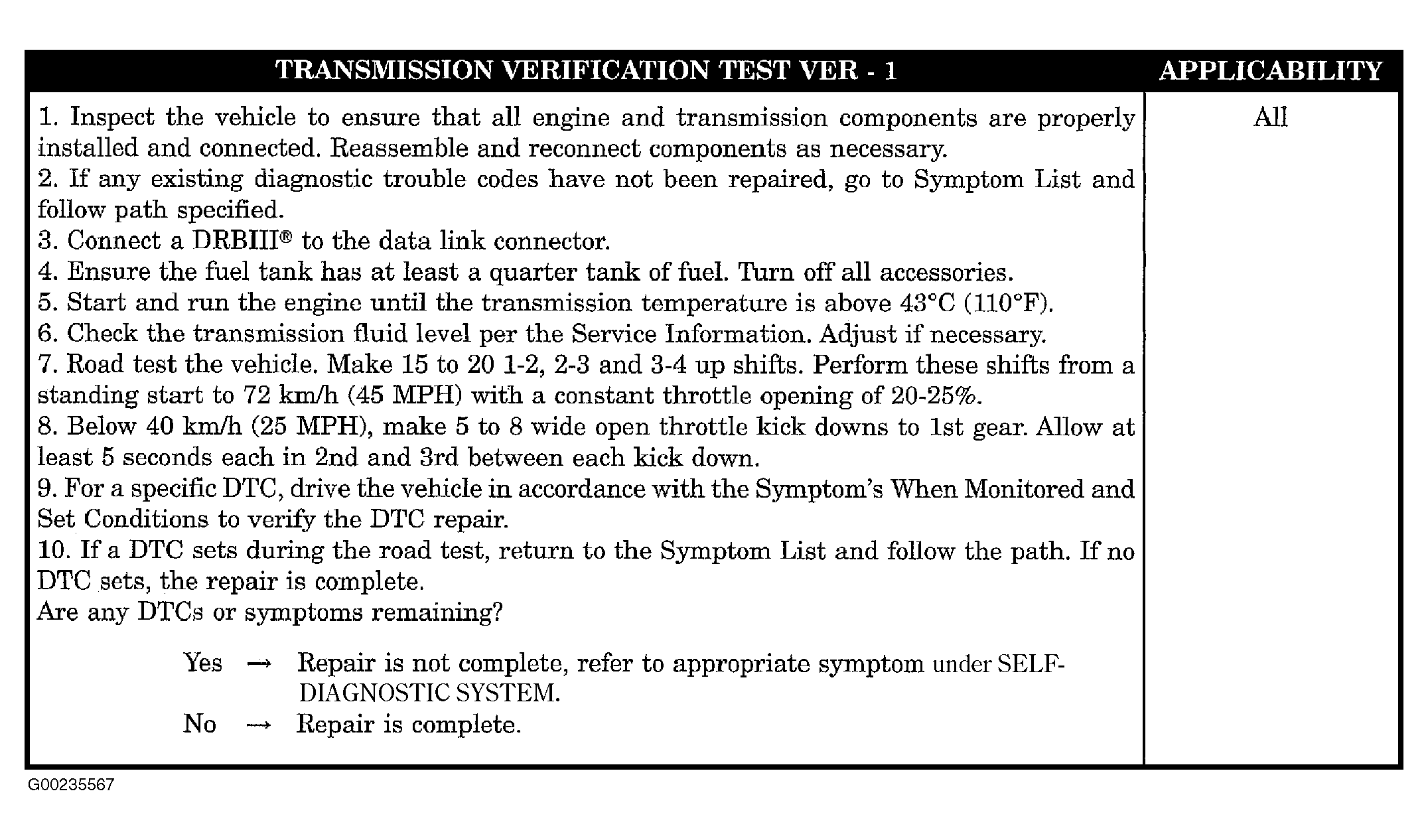

Fig 1: Transmission Verification Test VER-1
G00235567Courtesy of DAIMLERCHRYSLER CORPORATION
