Powertrain Verification Test VER-1

For testing procedures, see Fig 1.

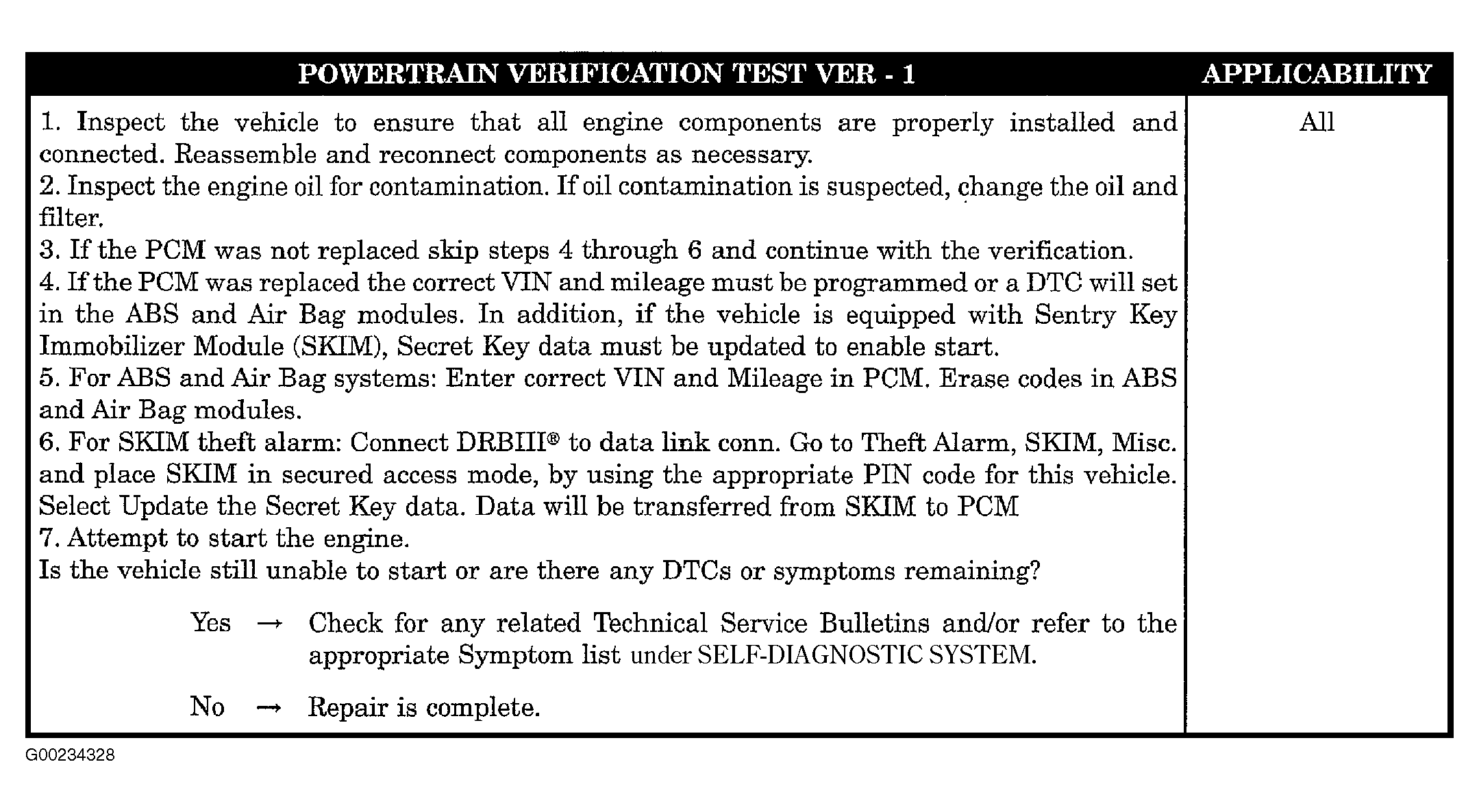

Fig 1: Powertrain Verification Test VER-1
G00234328Courtesy of DAIMLERCHRYSLER CORPORATION
