Powertrain Verification Test VER-2

For testing procedures, see Fig 1.

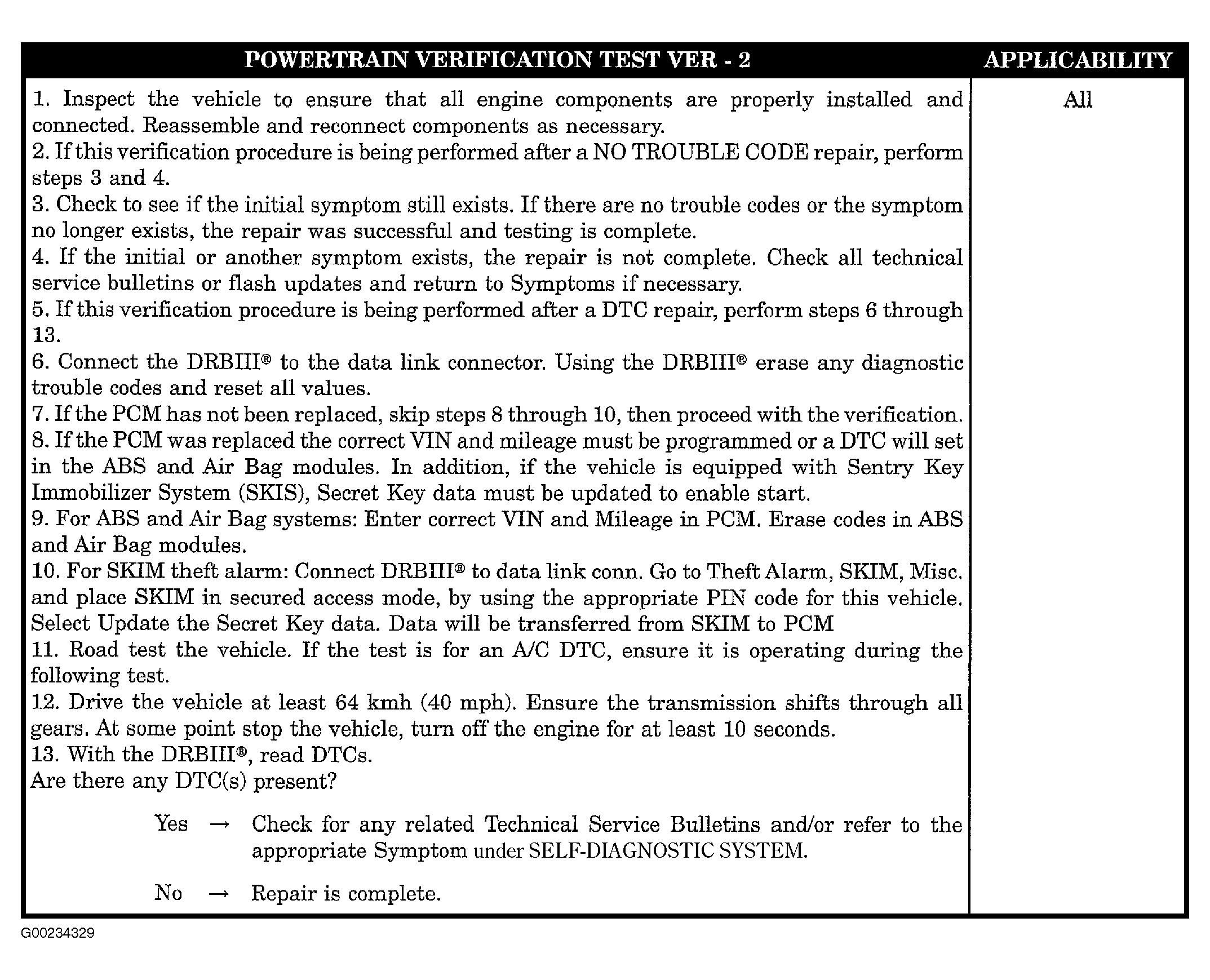

Fig 1: Powertrain Verification Test VER-2
G00234329Courtesy of DAIMLERCHRYSLER CORPORATION
