Powertrain Verification Test VER-3

For testing procedures, see Fig 1.

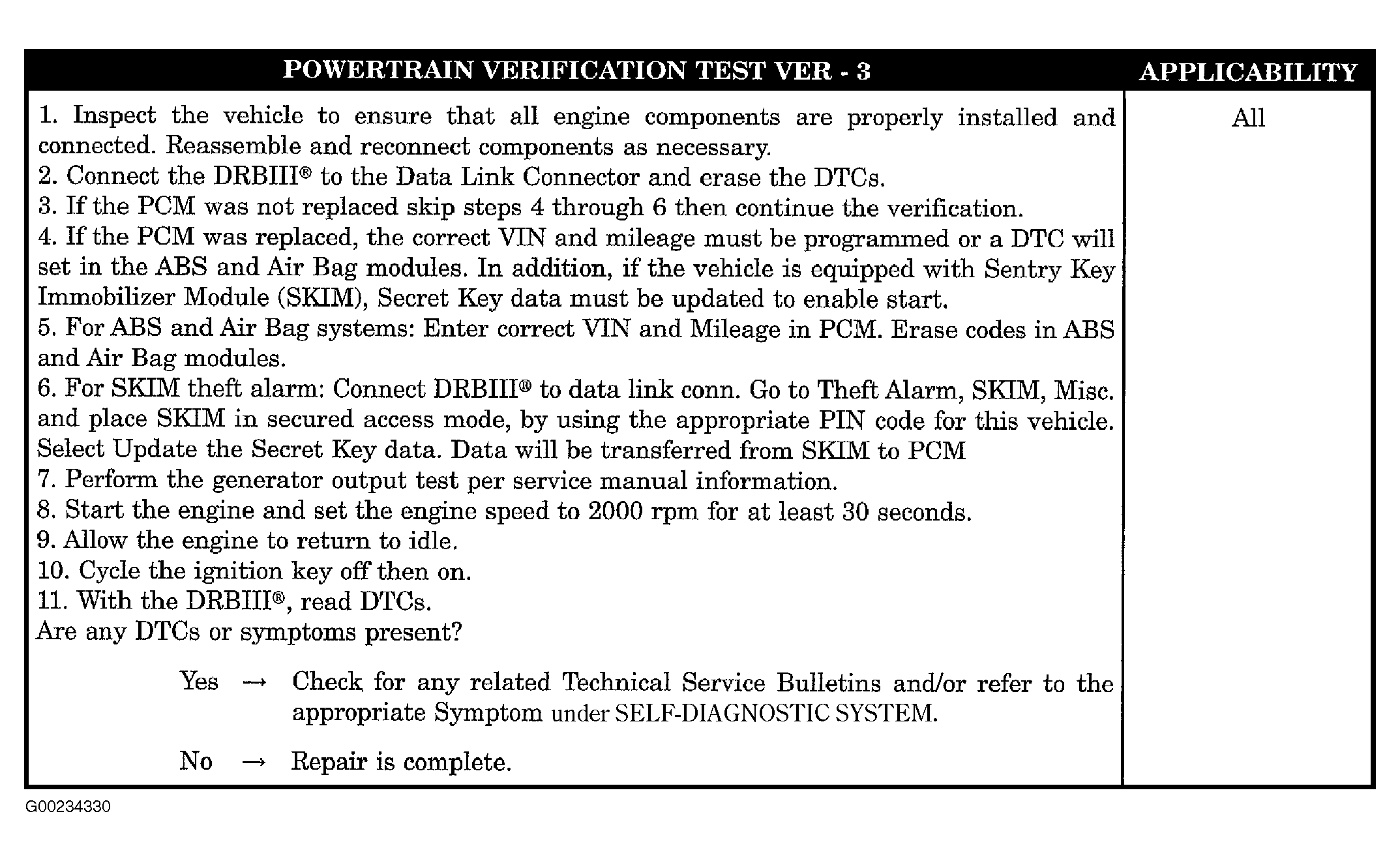

Fig 1: Powertrain Verification Test VER-3
G00234330Courtesy of DAIMLERCHRYSLER CORPORATION
