Powertrain Verification Test VER-4

For testing procedures, see Fig 1.

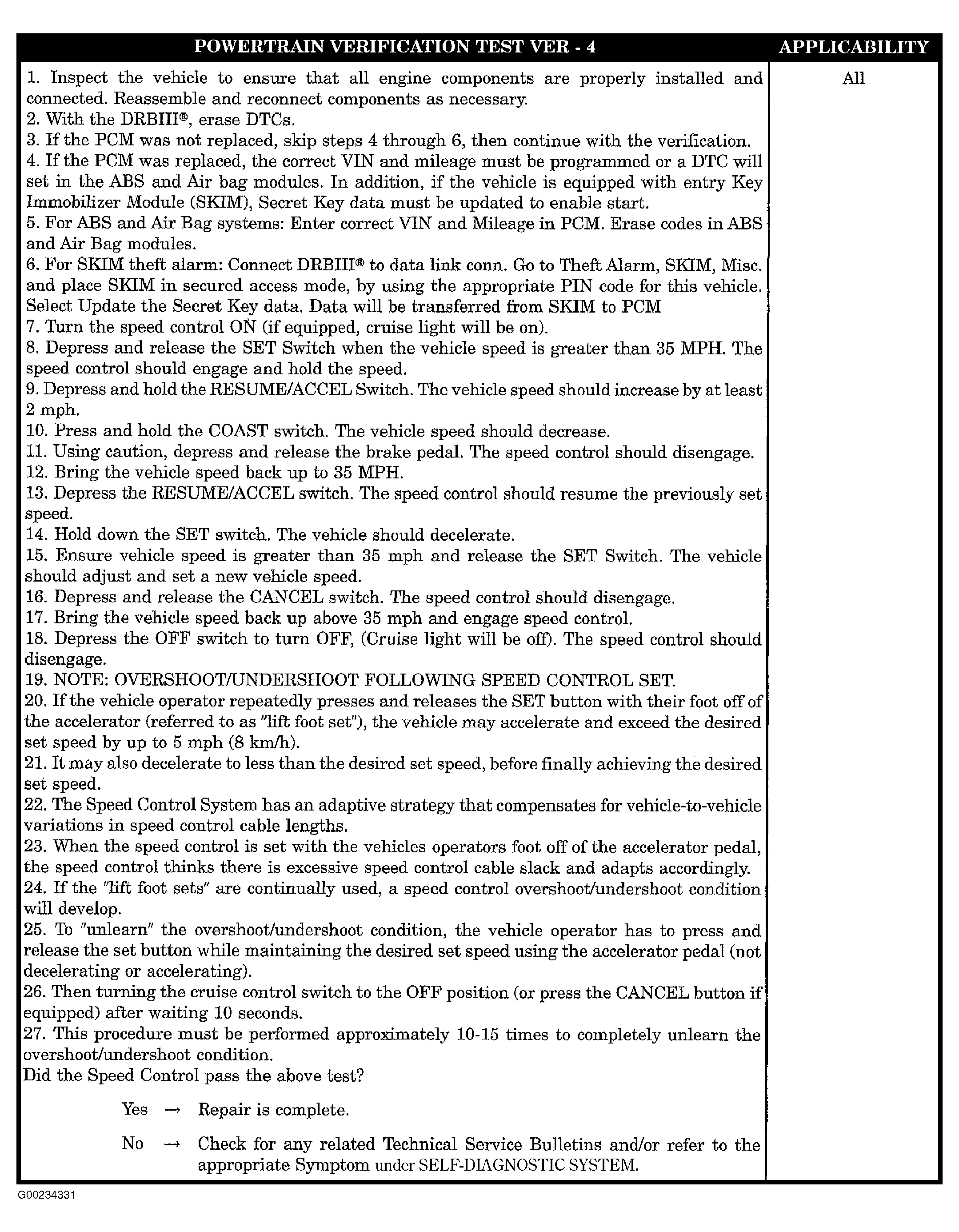

Fig 1: Powertrain Verification Test VER-4
G00234331Courtesy of DAIMLERCHRYSLER CORPORATION
