Powertrain Verification Test VER-5

For testing procedures, see Fig 1.

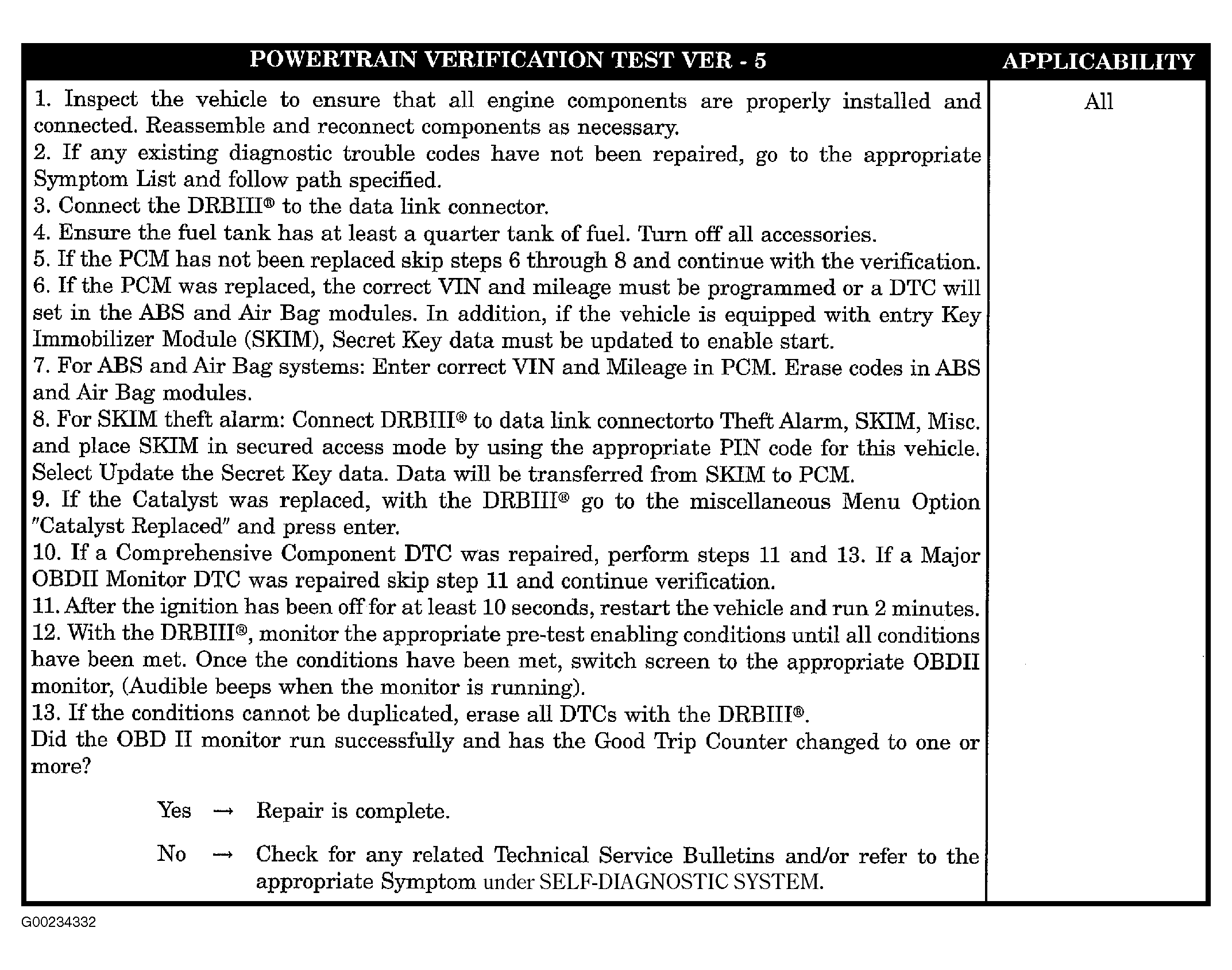

Fig 1: Powertrain Verification Test VER-5
G00234332Courtesy of DAIMLERCHRYSLER CORPORATION
