Home › Dodge and Ram › 2003 › Ram Van B2500, Van Cargo Extended, 5.2 T › Repair and Diagnosis › Engine Performance › System › Engine Controls - Self-Diagnostics › Verification Tests › Powertrain Verification Test VER-6

Powertrain Verification Test VER-6

For testing procedures, see Fig 1.

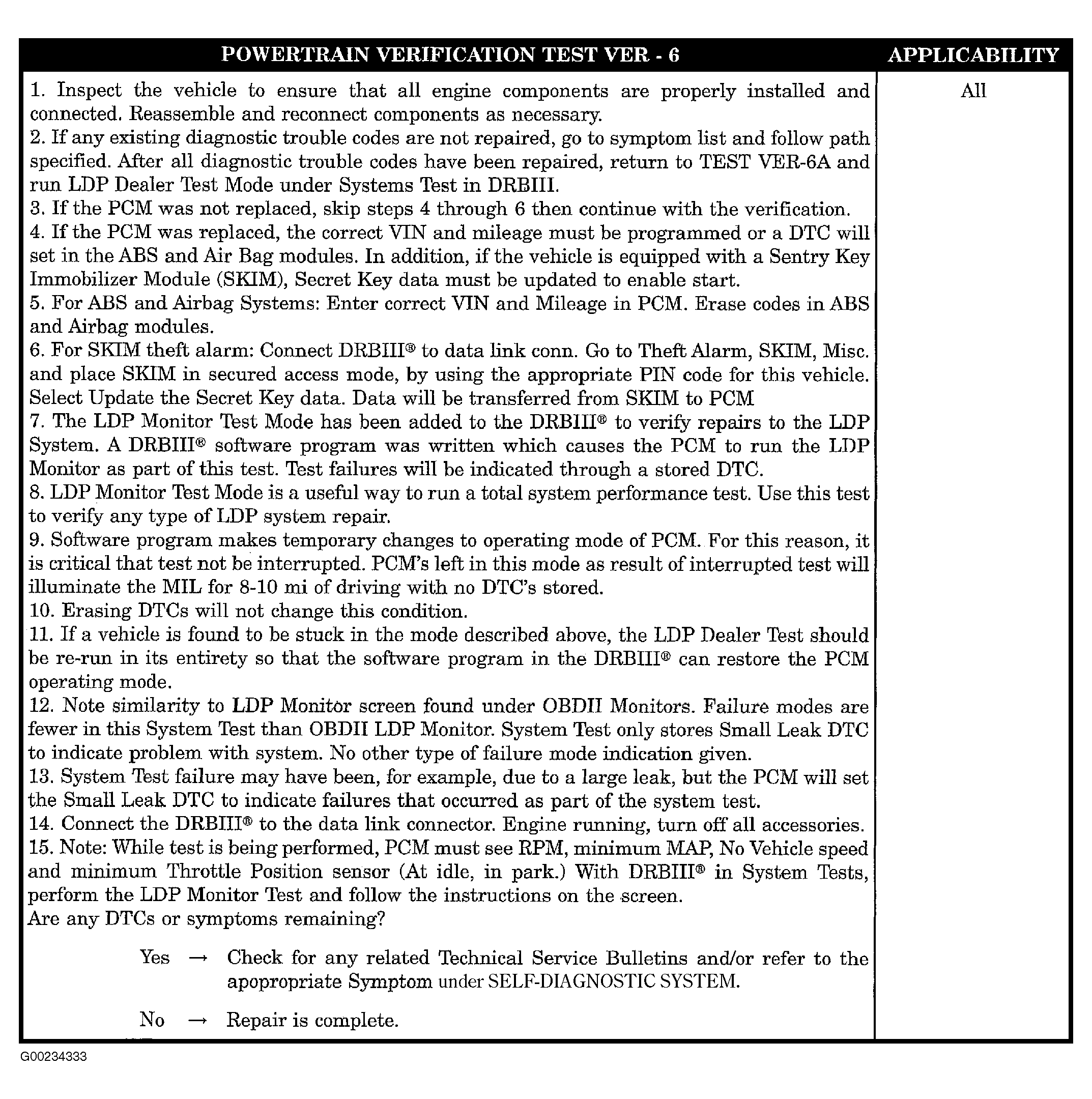

Fig 1: Powertrain Verification Test VER-6
G00234333Courtesy of DAIMLERCHRYSLER CORPORATION
