Remote Keyless Entry Transmitter: Description

The Remote Keyless Entry (RKE) system Radio Frequency (RF) transmitter (Fig 1) is equipped with four buttons, labeled LOCK, UNLOCK, DECK LID RELEASE, and PANIC. It is also equipped with a key ring and is designed to serve as a key fob. The operating range of the transmitter radio signal is up to 10 meters (30 feet) from the RKE receiver.

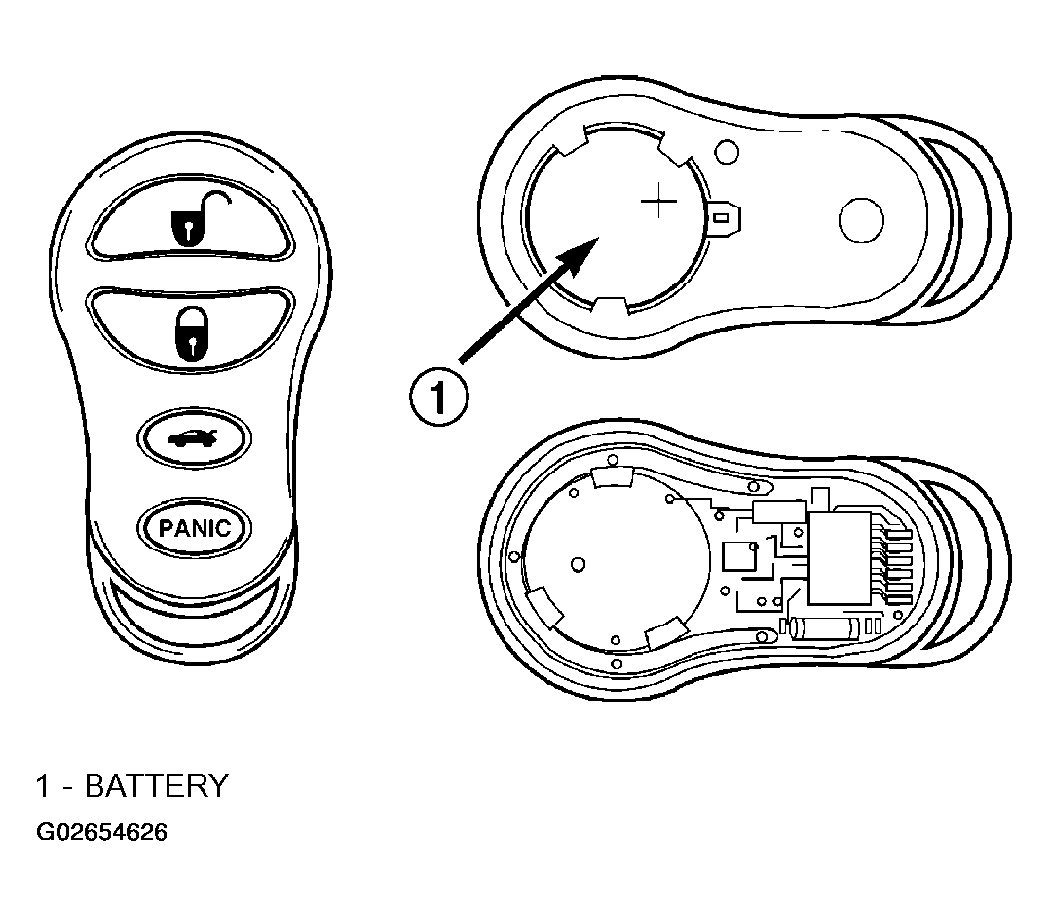

Fig 1: Identifying Remote Keyless Entry Transmitter

Courtesy of DAIMLERCHRYSLER CORP.

Each RKE transmitter has a different vehicle access code, which must be programmed into the memory of the RKE receiver in the vehicle in order to operate the RKE system. Two transmitters are provided with the vehicle, but the RKE receiver can retain the access codes of up to four transmitters in its memory.

The RKE transmitter operates on two Panasonic CR2016 (or equivalent) batteries (Fig 1). Typical battery life is from one to two years. The RKE transmitter cannot be repaired and, if faulty or damaged, it must be replaced.
