Window Regulator: Installation

  1. Position window regulator and crank housing on door panel through access hole in door panel.
  2. Tighten bolts attaching window regulator to door panel.
  3. Engage window regulator bolt heads on channel to key hole slots in door panel.
  4. Tighten screw attaching window regulator channel and crank housing.

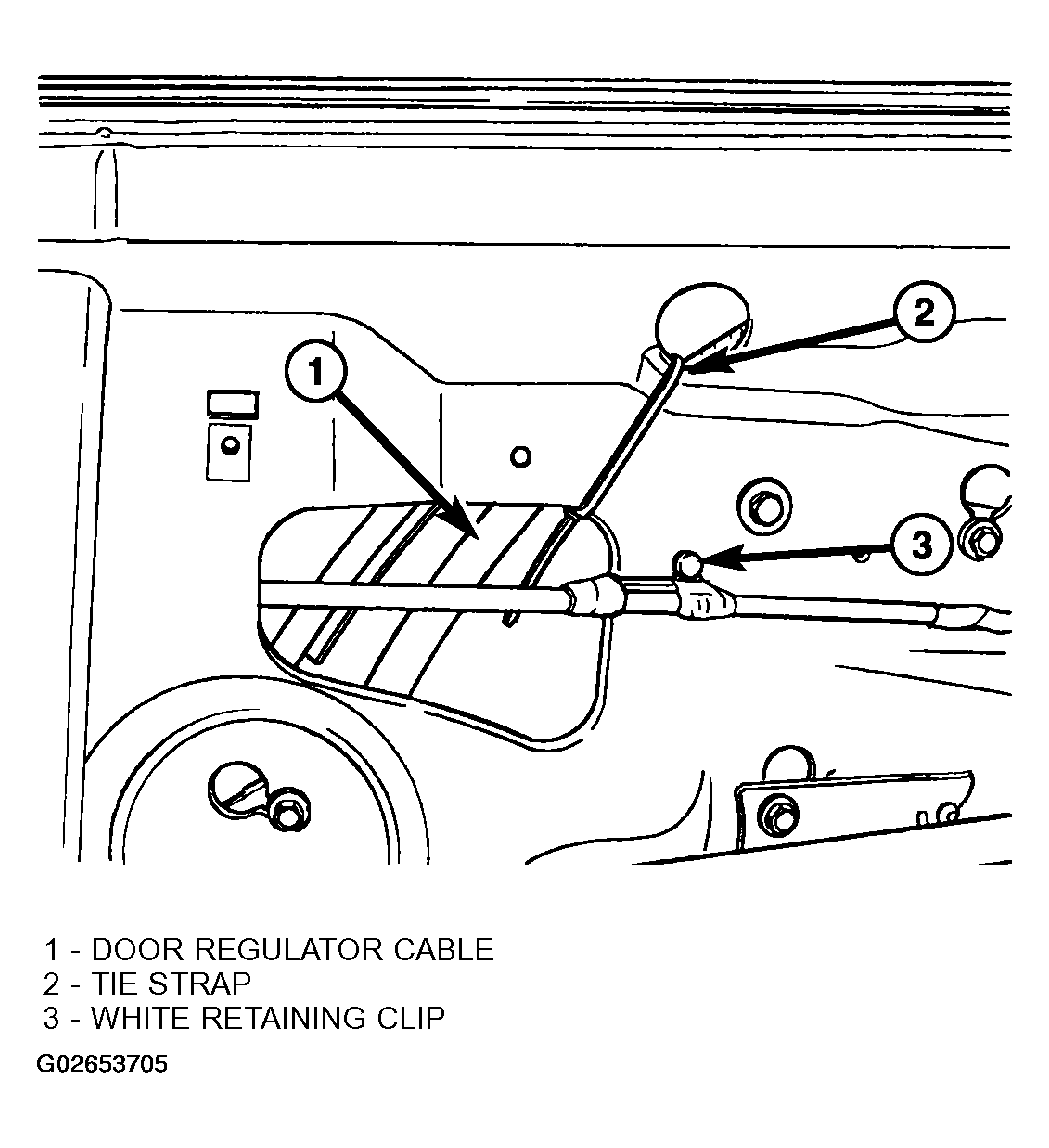

  5. Install a new tie strap around the outboard regulator cable and door inner sheet metal. (Figure)
  6. Position glass to regulator roller channel.
  7. Tighten fasteners attaching door glass to roller channel.
  8. Install door trim panel.
