Modular Clutch: Description

The modular clutch assembly (Fig 1 ) is located between the engine and manual transaxle in the transaxle bellhousing, and is responsible for transmitting engine power to the transaxle. The modular clutch assembly consists of the following components:

• Flywheel
• Clutch Disc
• Pressure Plate
• Diaphragm Spring

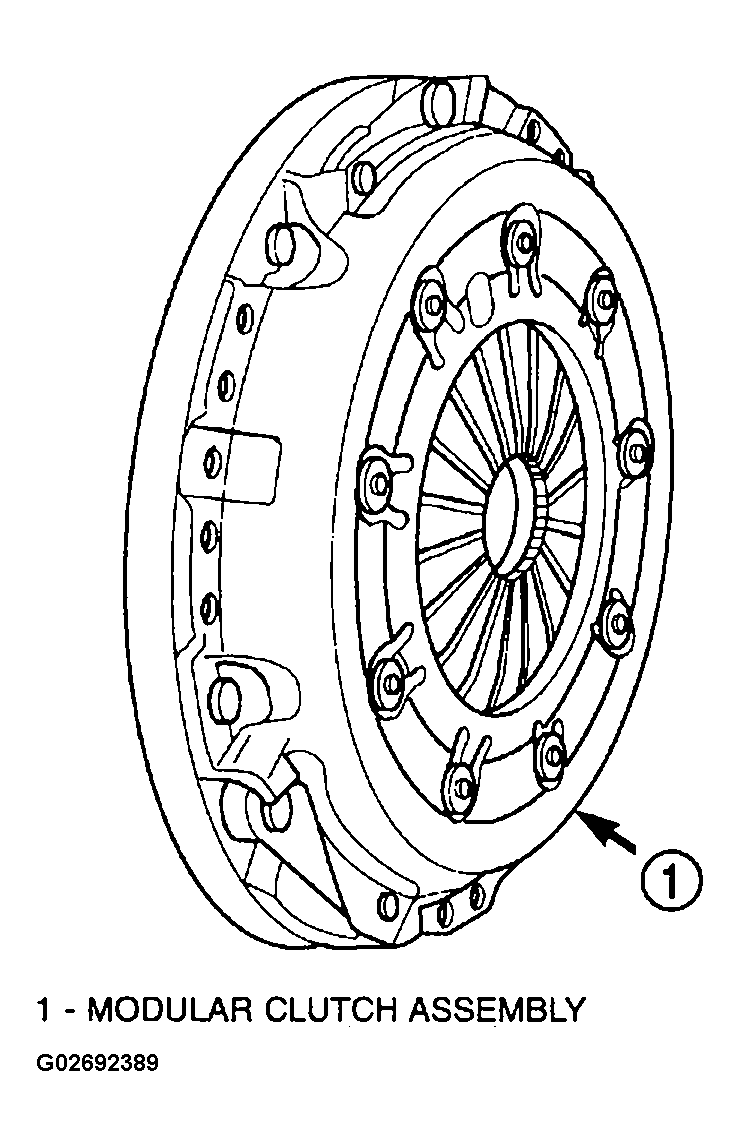

Fig 1: Locating Modular Clutch Assembly

Courtesy of DAIMLERCHRYSLER CORP.
