Axle Seals: Installation

1. Using driver handle C-4171 and installer 8476, install axle seals into position (Fig 2 ) (Fig 1 ).
2. Install one or both front halfshaft assemblies. (Refer to HALF SHAFT - INSTALLATION )
3. Check transaxle fluid level and adjust if necessary. (Refer to FLUID - STANDARD PROCEDURE  )
4. Lower vehicle.

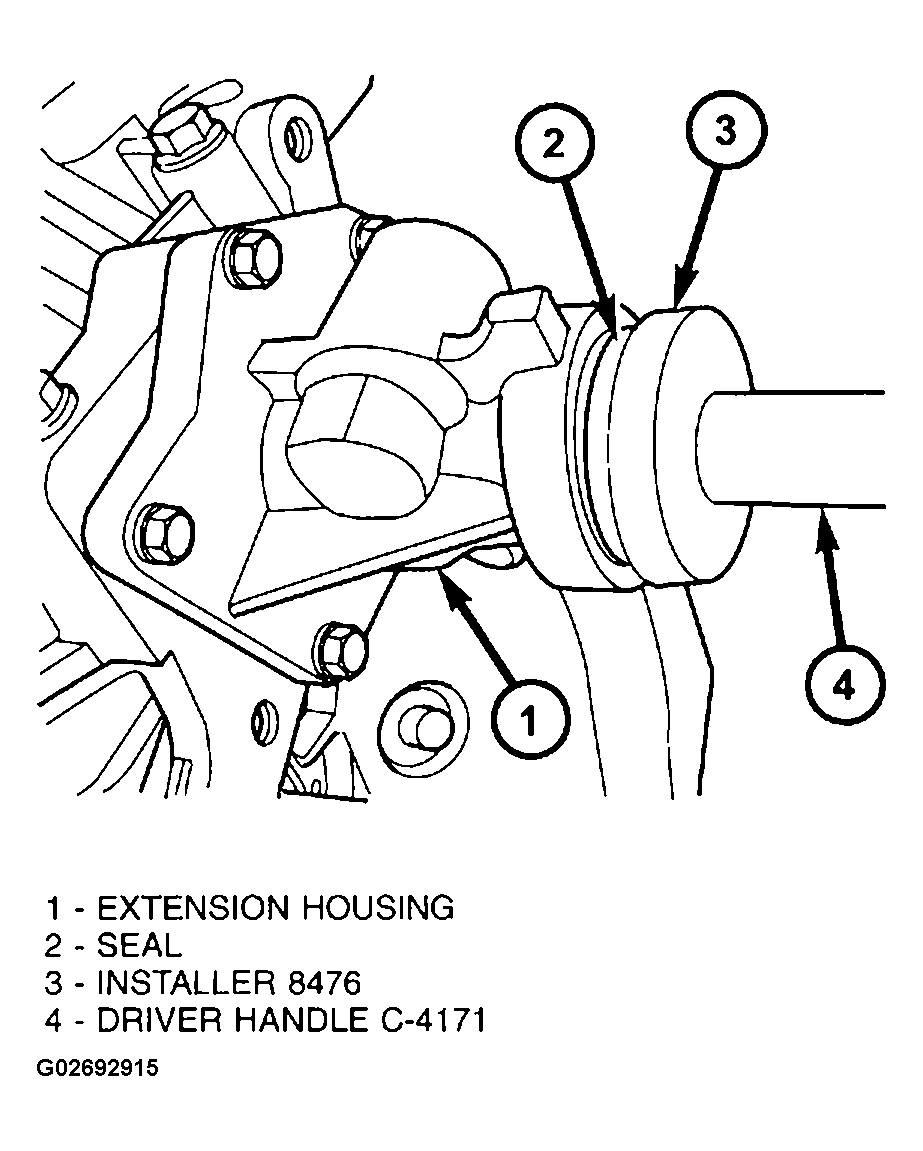

Fig 1: Installing Axle Seal (Extension Housing Side)

Courtesy of DAIMLERCHRYSLER CORP.

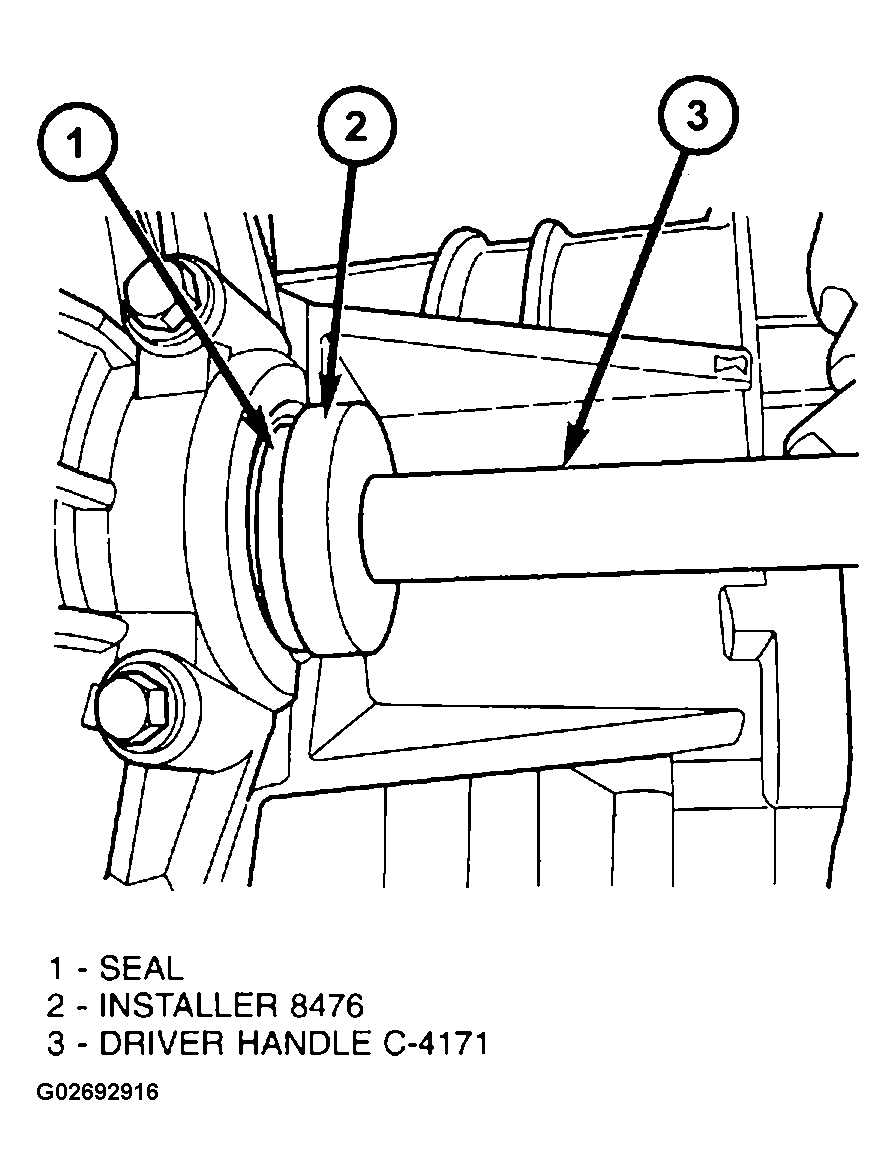

Fig 2: Installing Axle Seal

Courtesy of DAIMLERCHRYSLER CORP.
