Axle Seals: Removal

  1. Raise vehicle on hoist.
  2. Remove one or both front halfshaft assemblies. (Refer to HALF SHAFT - REMOVAL )
  3. Using a suitable screwdriver, remove one or both axle seals (Fig 1 ).

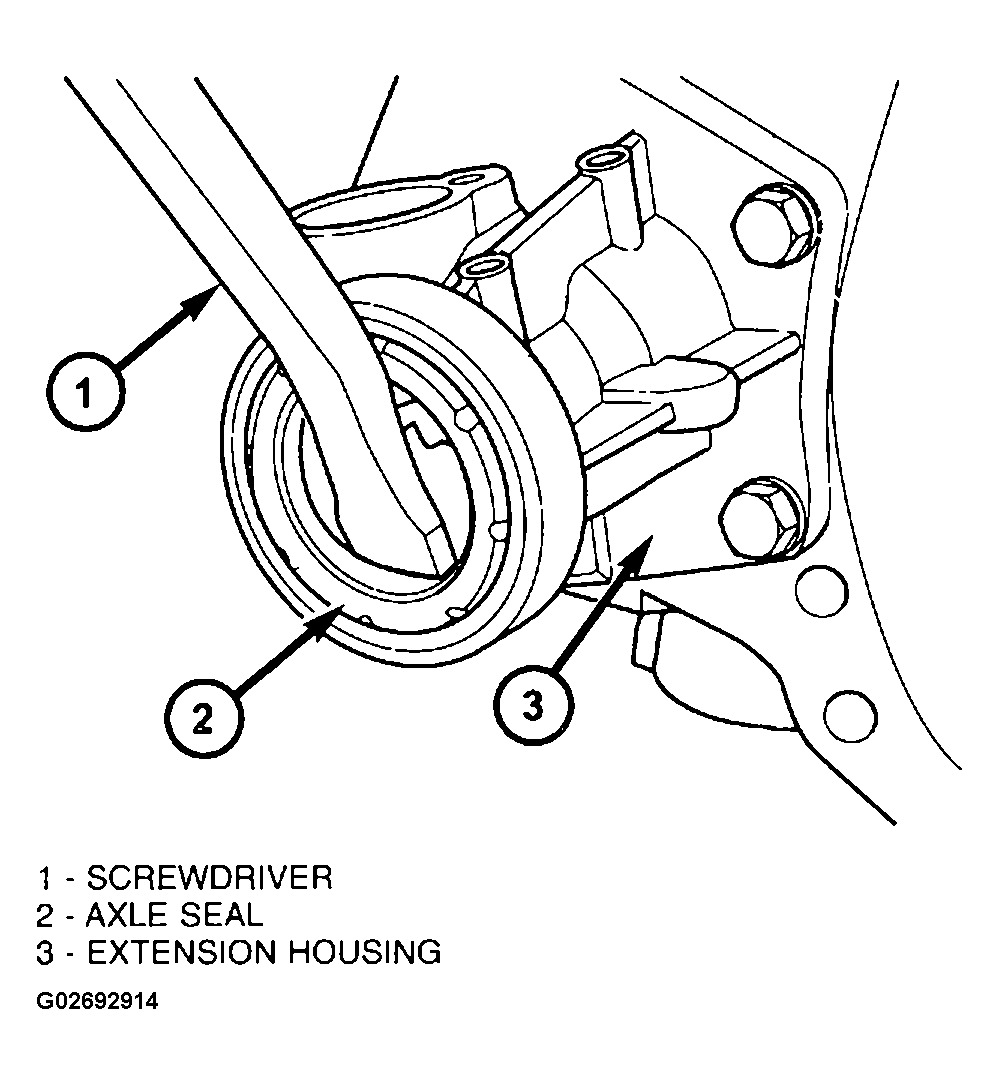

Fig 1: Removing Axle Seal (Extension Housing Side Shown)
G02692914Courtesy of DAIMLERCHRYSLER CORP.
