Manual Transaxle: Differential: Description

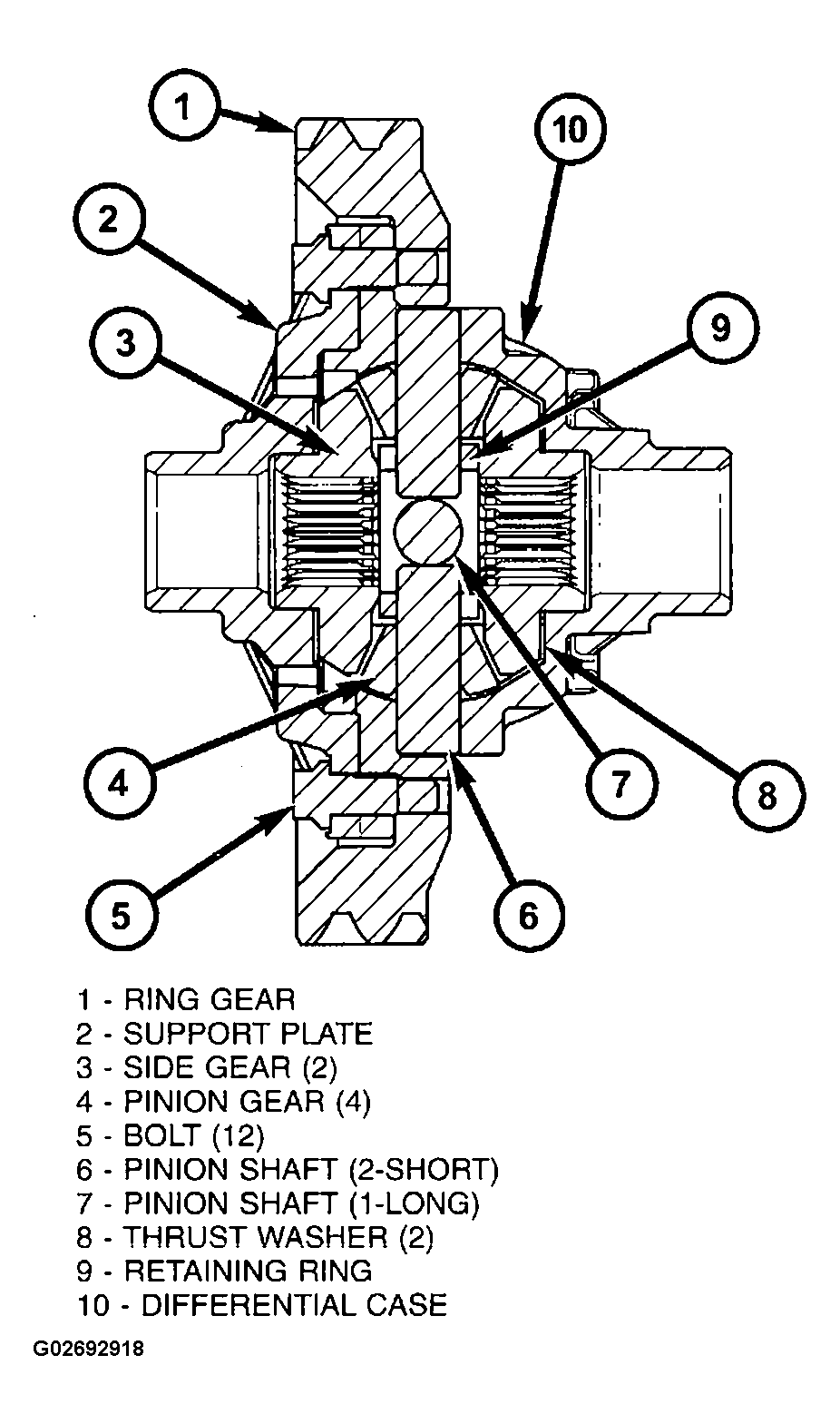

The T850 differential is a conventional open design. It consists of a ring gear and a two-piece differential case. The differential case contains the pinion and side gears, three floating pinion shafts, and a pinion shaft retaining ring (Fig 1 ). The differential case is supported in the transaxle by tapered roller bearings.
