Input Shaft: Assembly
NOTE:
Depending on date of manufacture, some input shafts will utilize a needle bearing under the 3rd and 4th Speed Gears.
NOTE:
When servicing the input shaft assembly, all snap rings MUST be replaced with new ones upon assembly. 5th gear nut must also be replaced.
NOTE:
When installing 3/4 synchronizer hub to shaft, make sure to align oil slots on synchronizer hub face with oil hole in the shaft splined hub journal.
NOTE:

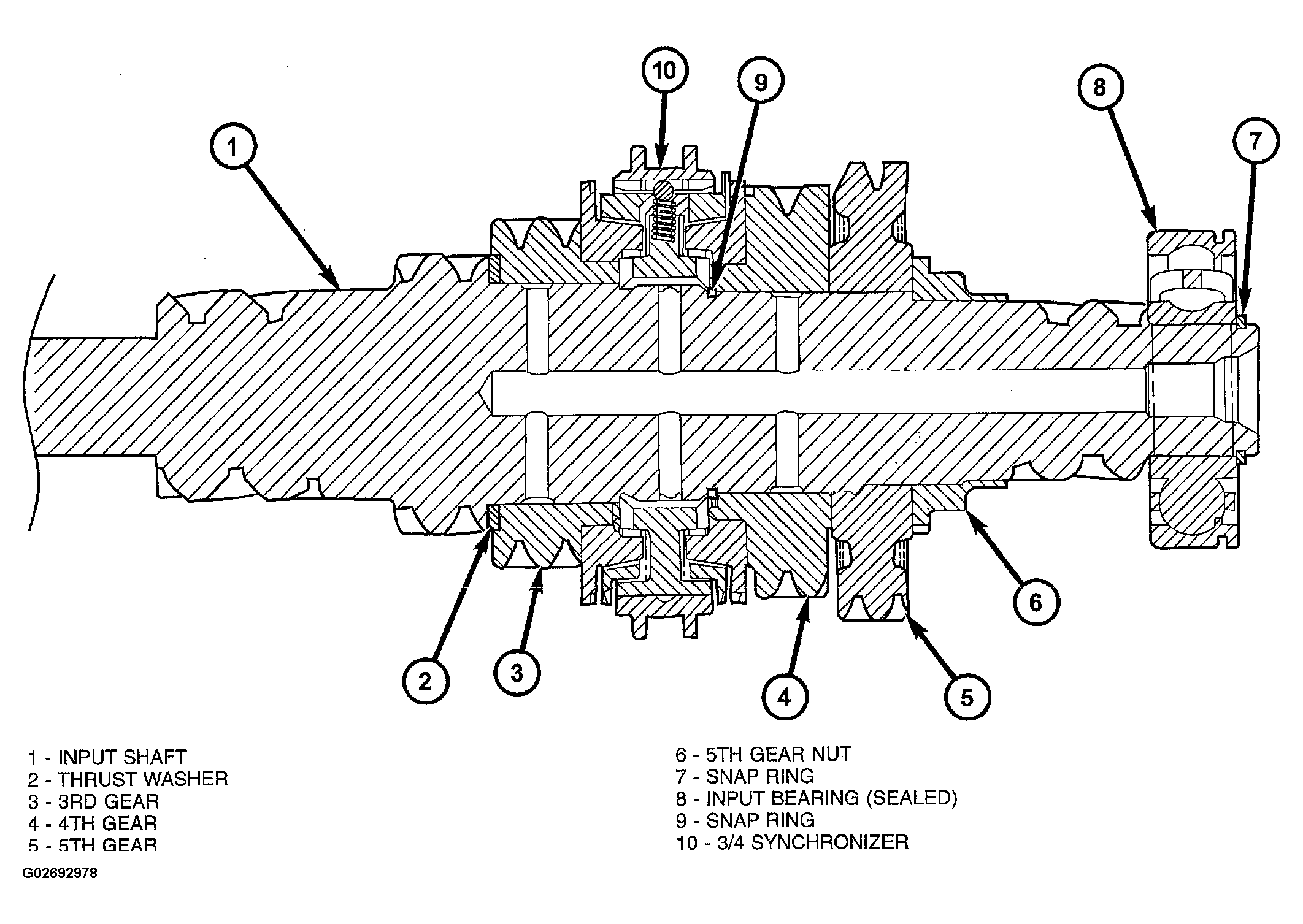

Refer to (Fig 1
) for input shaft assembly reference.
- Install input shaft into fixture 8487.
- Install thrust washer if removed upon disassembly.

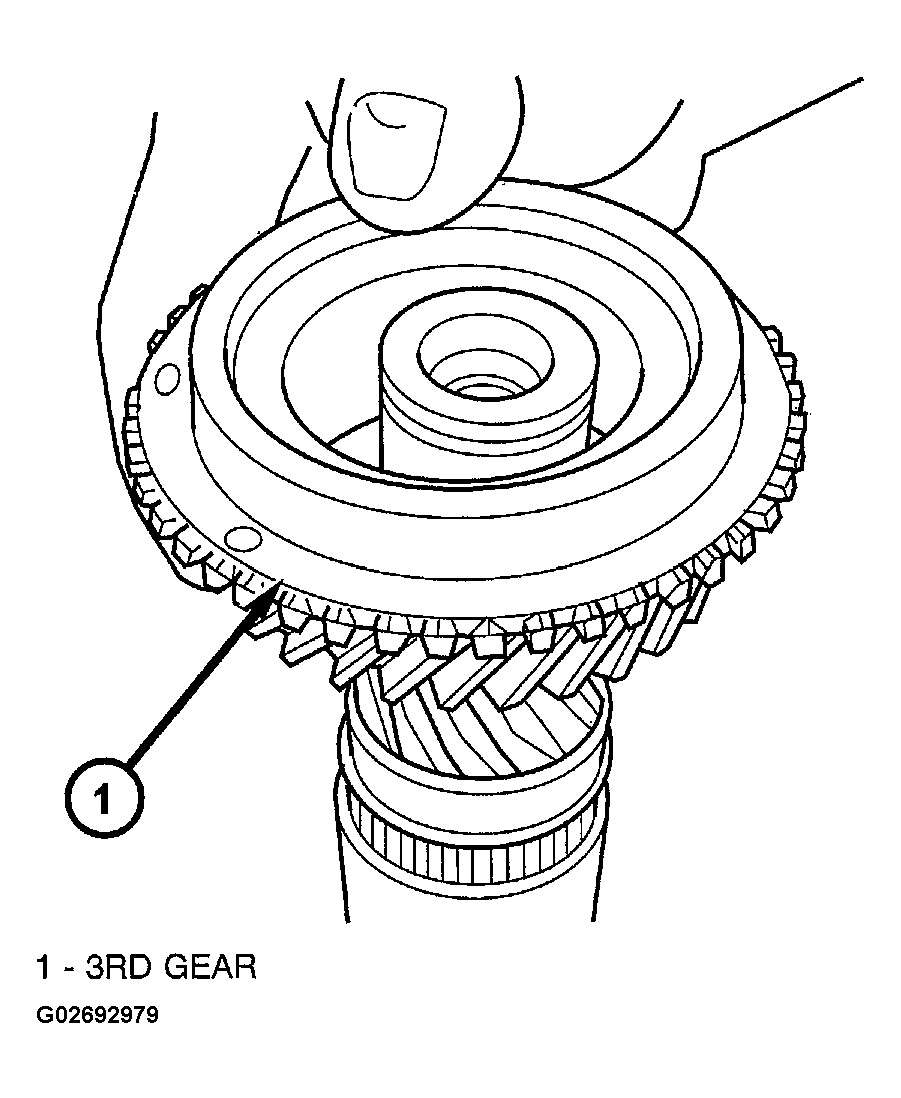

- Install 3rd gear and needle bearing (if equipped) (Fig 2 ).

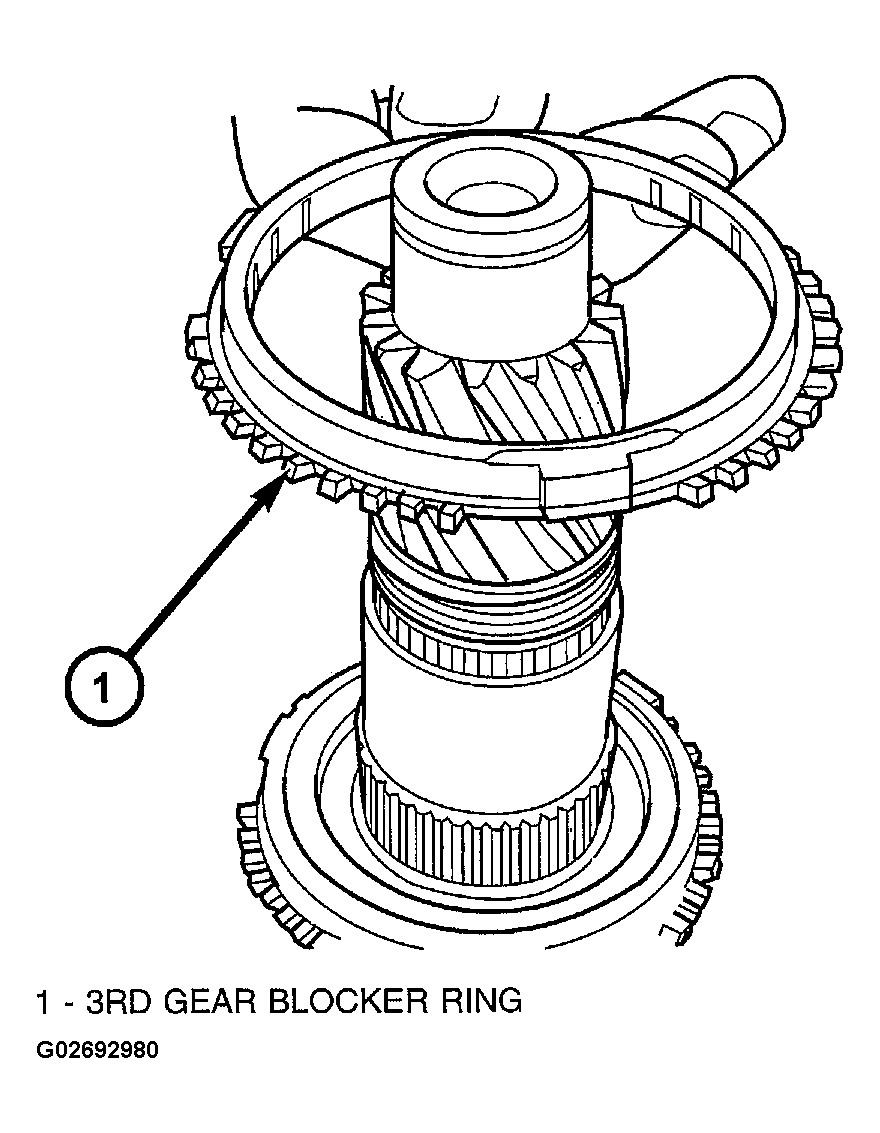

- Install 3rd gear blocker ring (Fig 3 ).

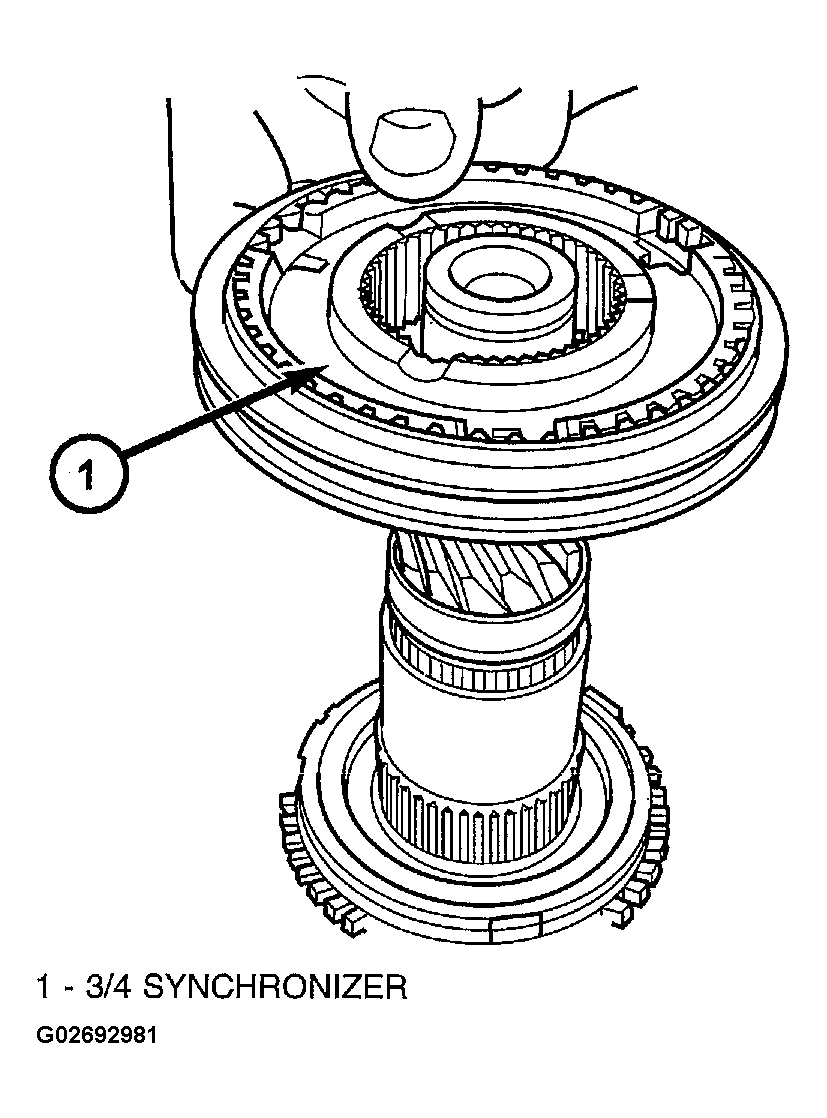

- Install 3/4 synchronizer (Fig 4 ). When installing 3/4 synchronizer hub to shaft, make sure to align oil slots on synchronizer hub face with oil hole in the shaft splined hub journal.

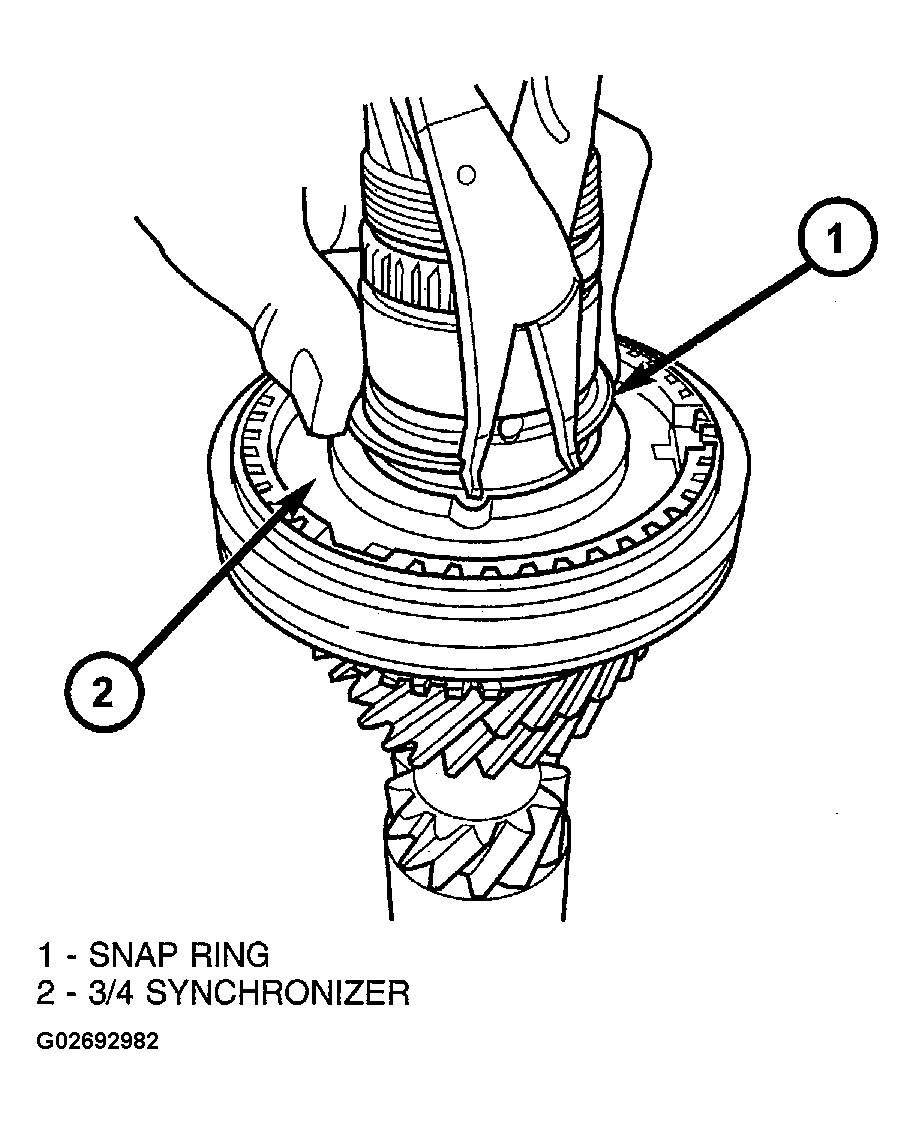

- Install NEW 3/4 synchronizer snap ring (Fig 5 ).

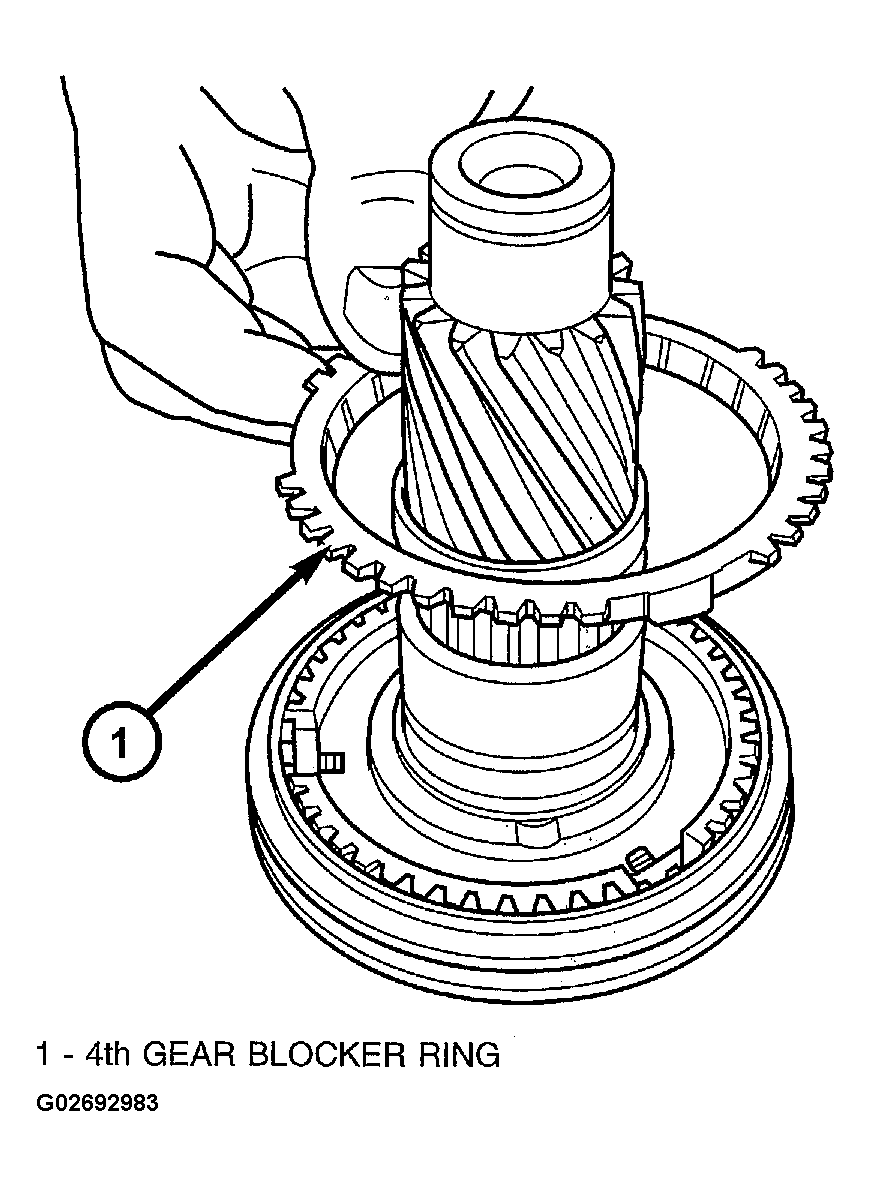

- Install 4th gear blocker ring (Fig 6 ).

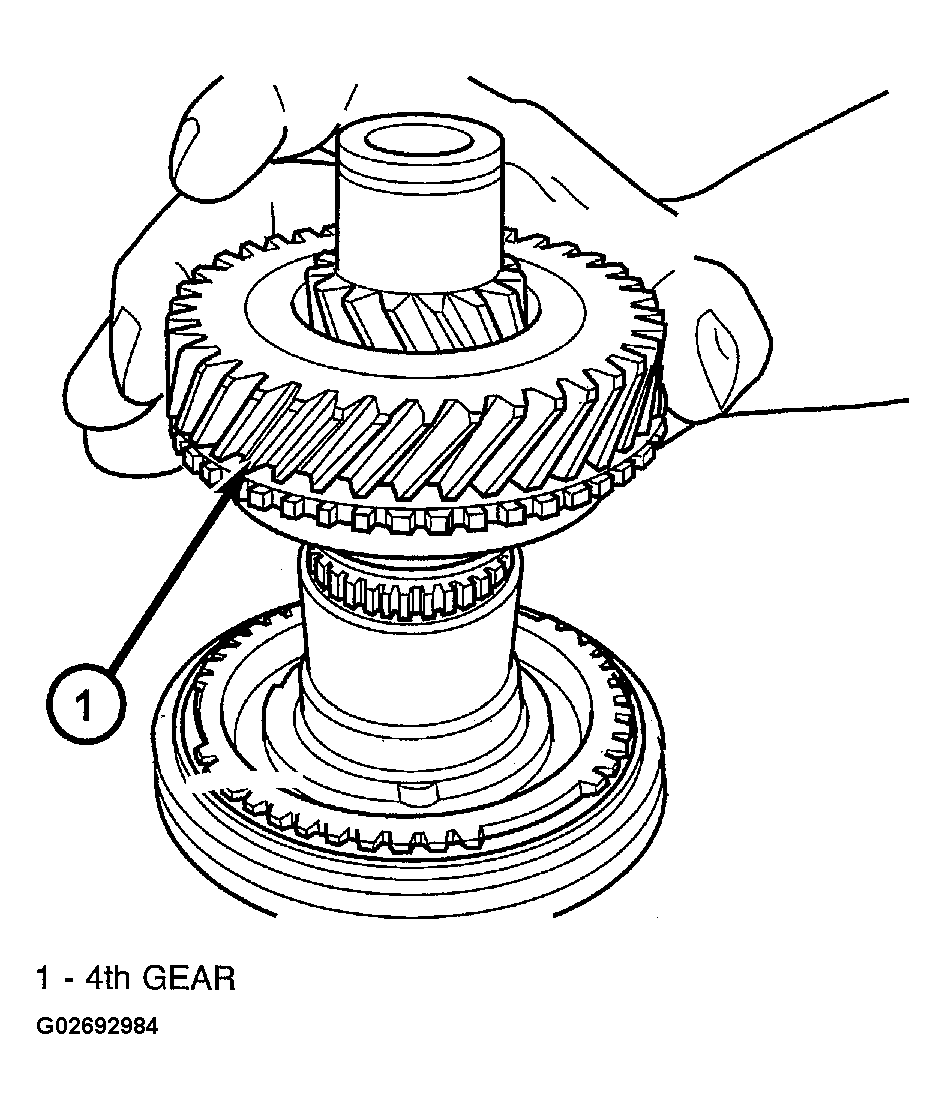

- Install 4th gear and needle bearing (if equipped) (Fig 7 ).

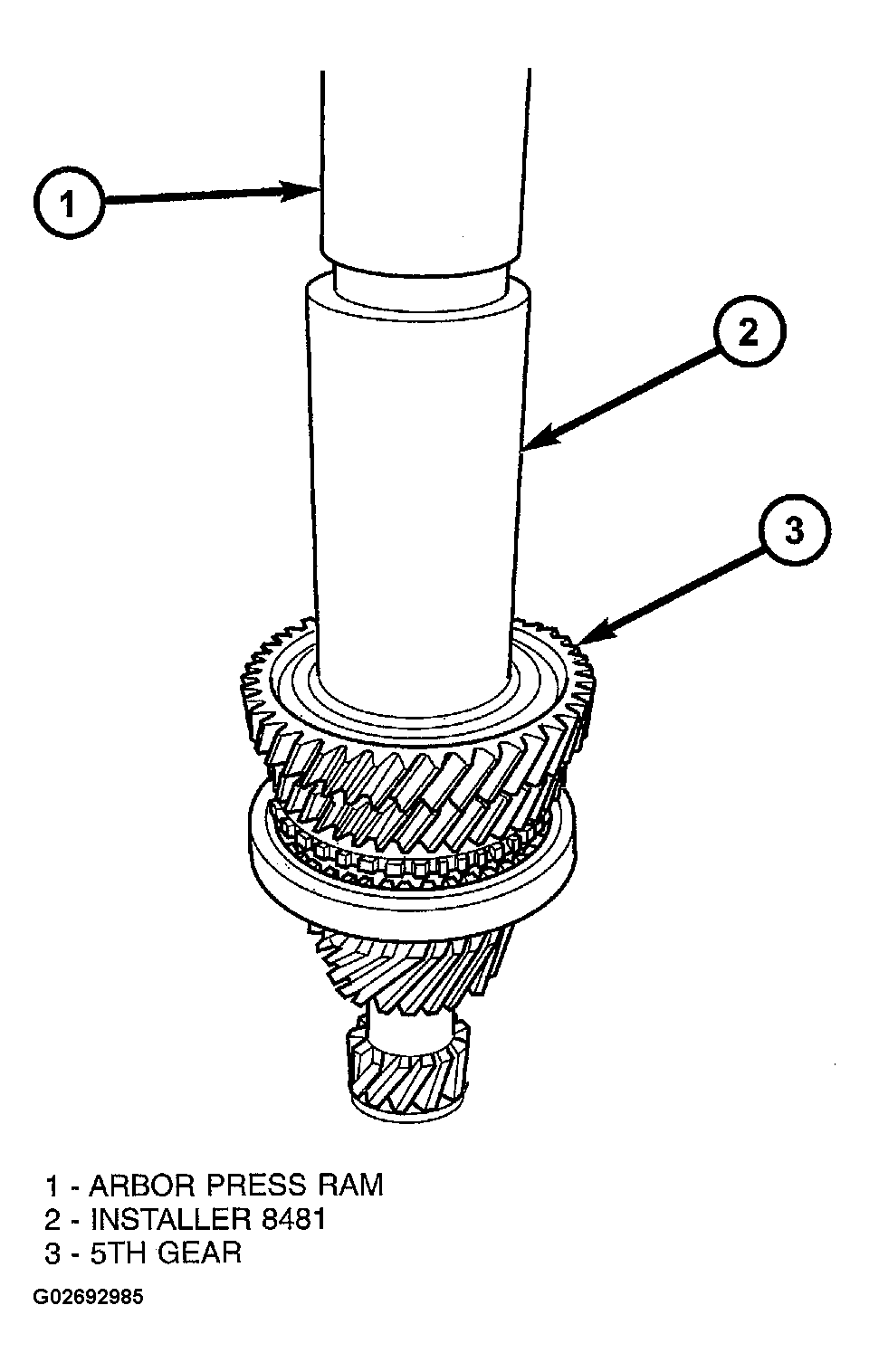

- Install 5th gear and press into position using installer 8481 (Fig 8 ).

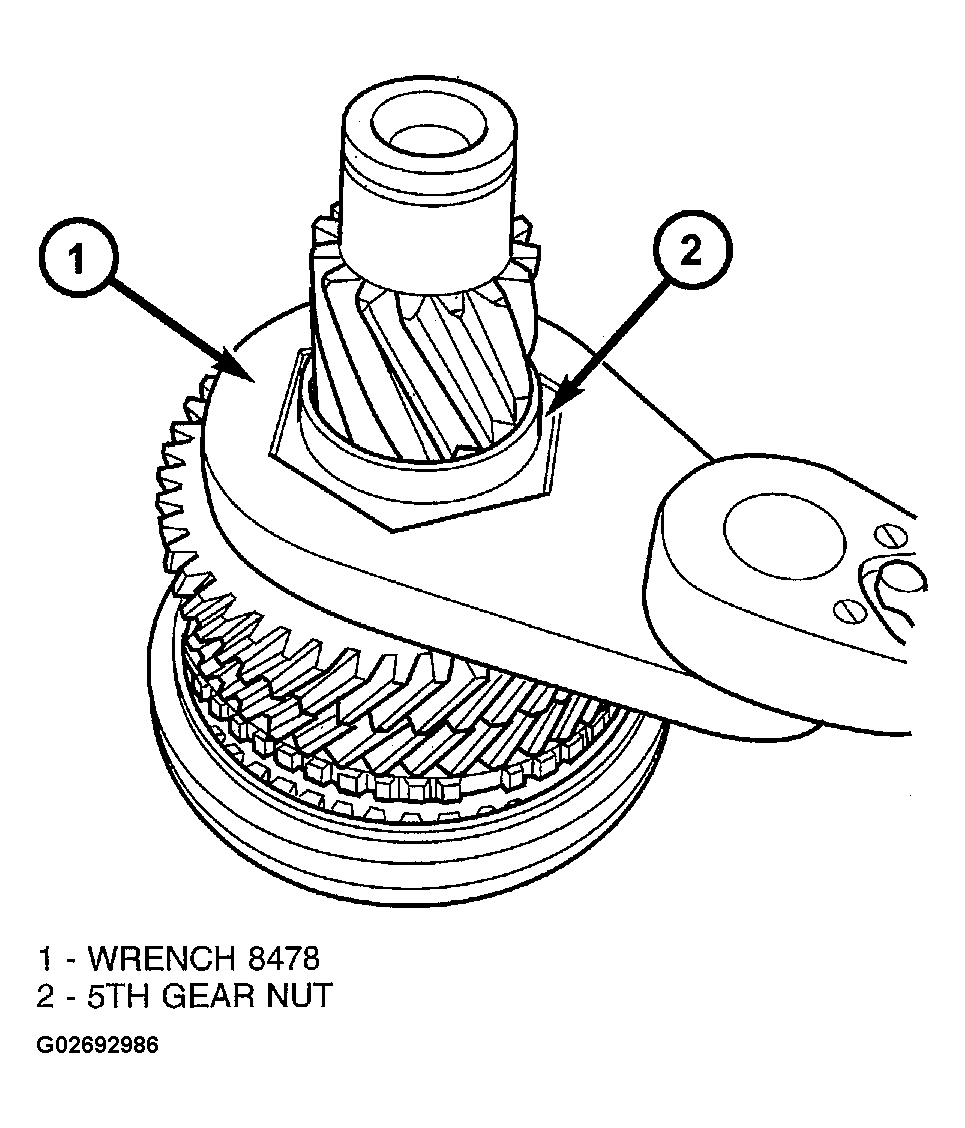

- Install NEW 5th gear nut and torque to 262 N.m (193 ft. lbs.) using wrench 8478 (Fig 9 ).
- Stake 5th Gear nut in four (4) places as follows:
- Install staking tool 8479 to 5th gear nut.

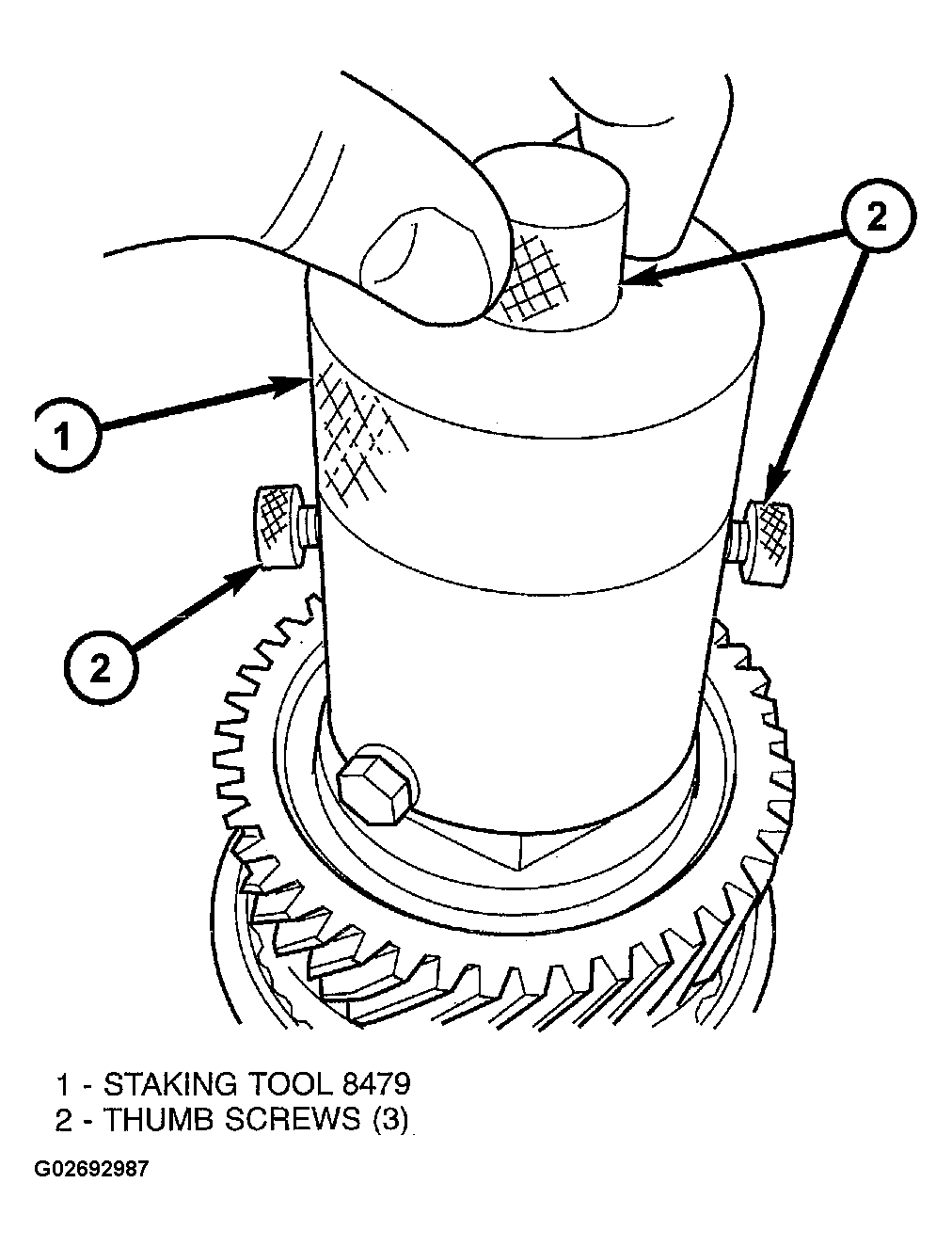

- Tighten upper thumb screw by hand (Fig 10 ).
- Tighten two (2) side thumb screws by hand.

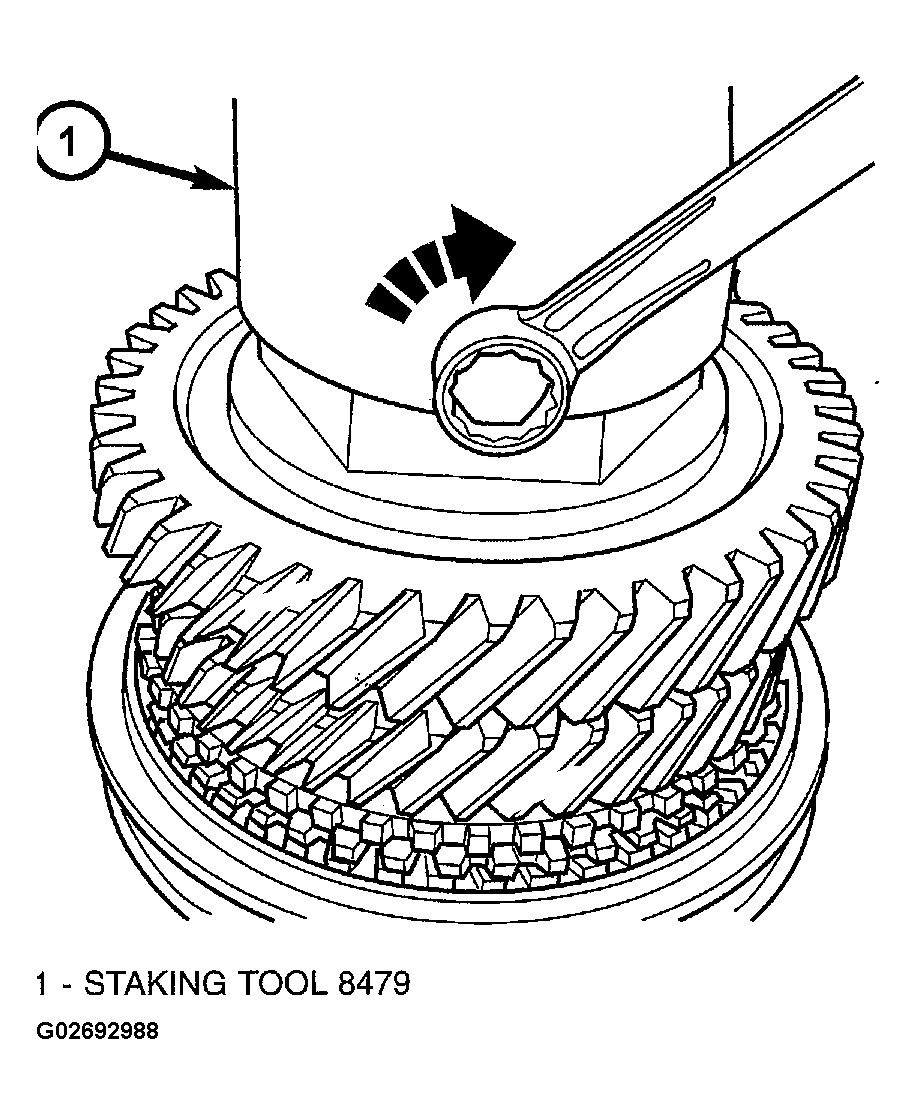

- Tighten both staking screws until they bottom on tool body (Fig 11 ).

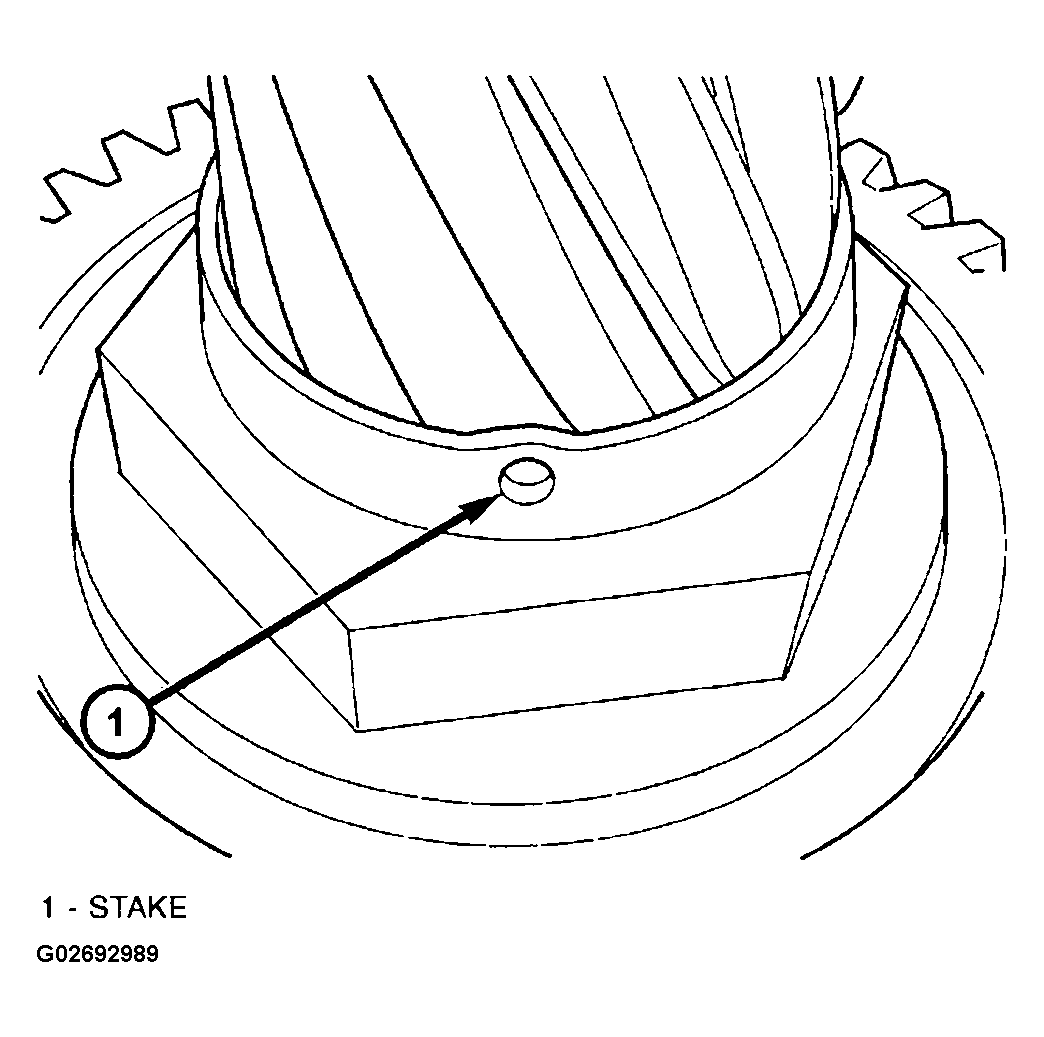

- Loosen staking screws and thumb screws. Remove tool and visually inspect stake (Fig 12 ).
- Remove tool, rotate 90°, and repeat process to stake in four (4) places.
NOTE: The input shaft sealed roller bearing and snap ring do not get installed until transaxle assembly to facilitate installation of the reverse idler gear mechanism.
