Manual Transaxle: Synchronizer: Description

The T850 transaxle uses two styles of synchronizer assemblies; a conventional single-cone style is used for the 5th/Reverse and 3rd/4th applications (Fig 1 ), and a dual-cone style for the 1st/2nd gear application (Fig 2 ).

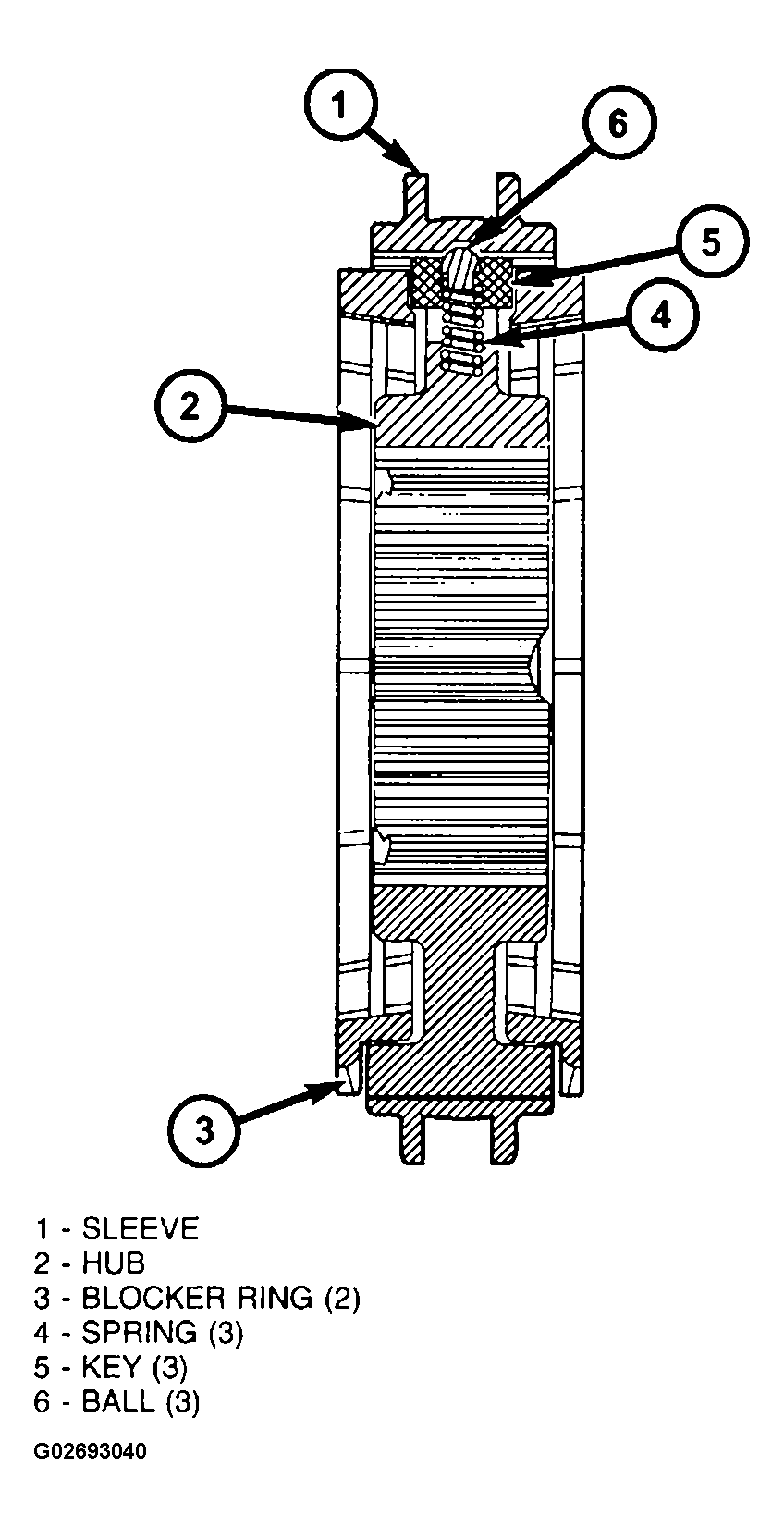

Fig 1: Identifying Components Of 3/4 - 5/R Synchronizer Assembly

Courtesy of DAIMLERCHRYSLER CORP.

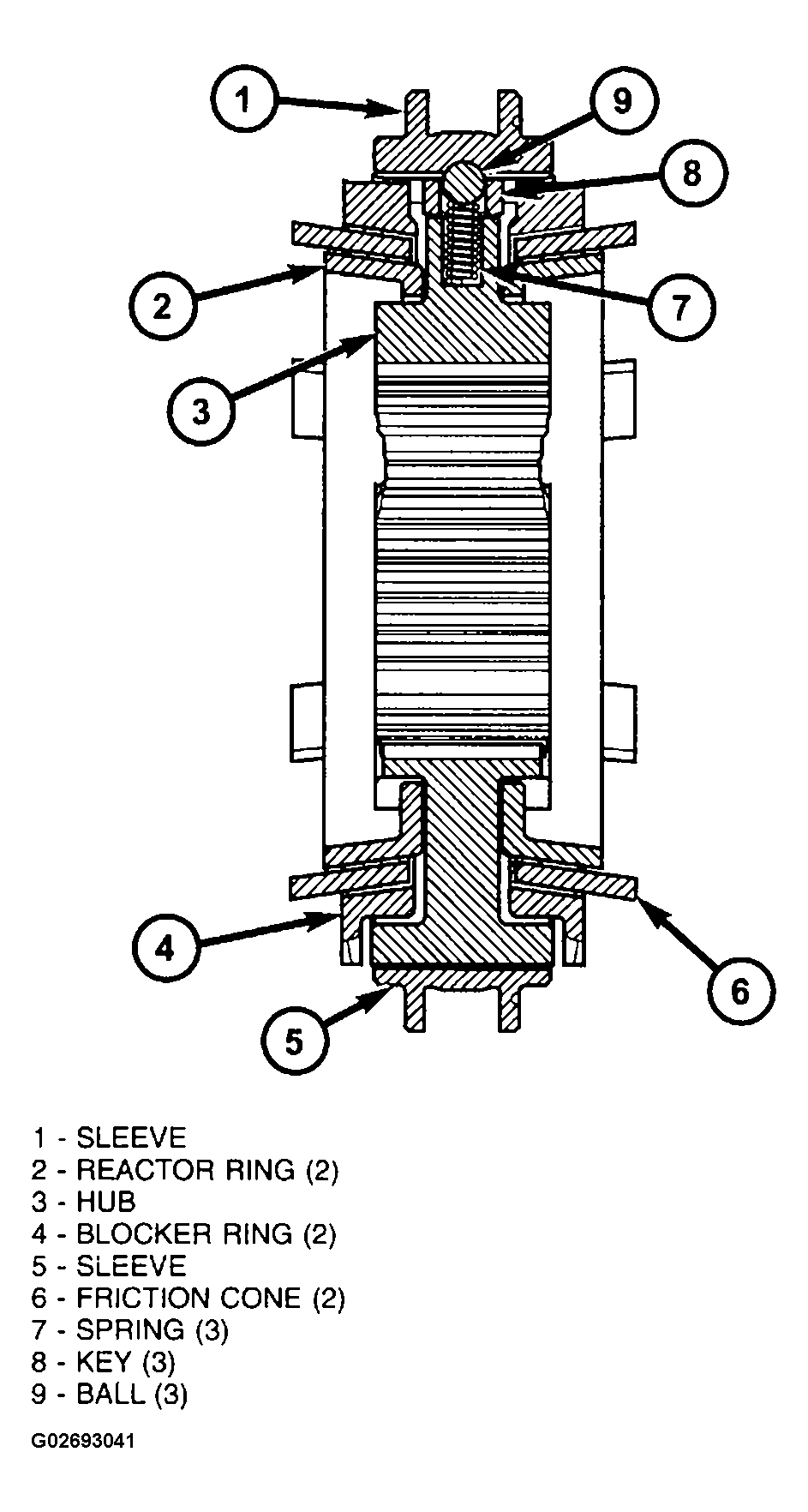

Fig 2: Identifying Components Of 1/2 Synchronizer Assembly

Courtesy of DAIMLERCHRYSLER CORP.
