Right Lavaliere Module (Export) Connector End View
Right Lavaliere Module (Export) Connector End View

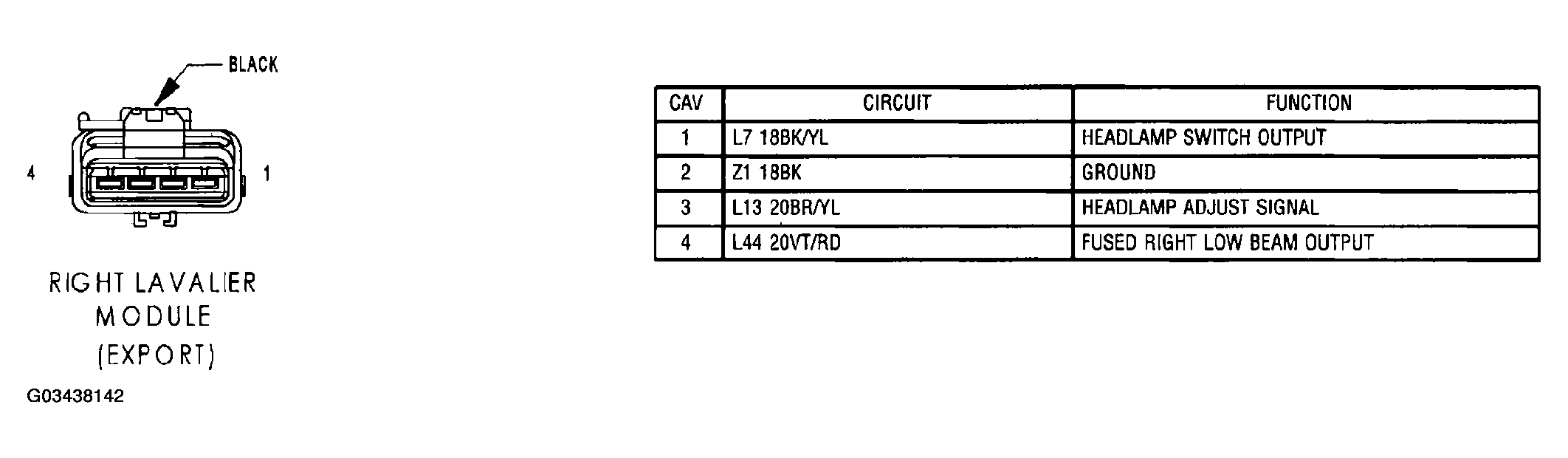

Fig 1: Right Lavaliere Module (Export) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
