Dodge and Ram
›
2003
›
Sprinter 2500, Van Cargo, 2.7 41
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Component Locations
›
Controls And Solenoids
Controls And Solenoids

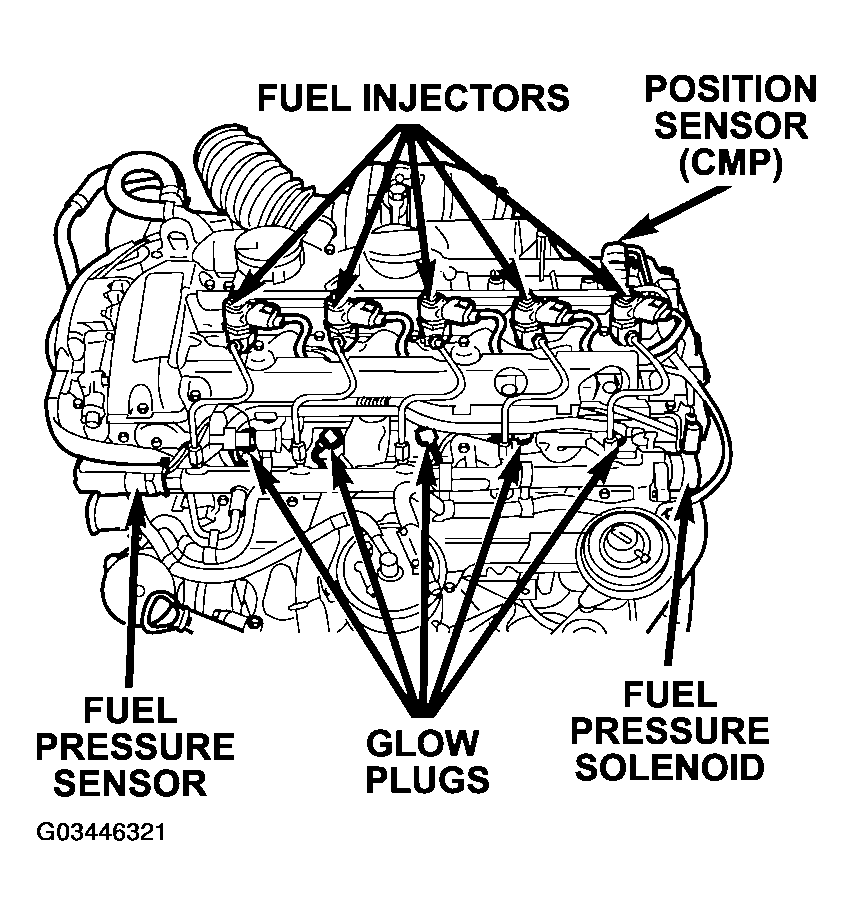

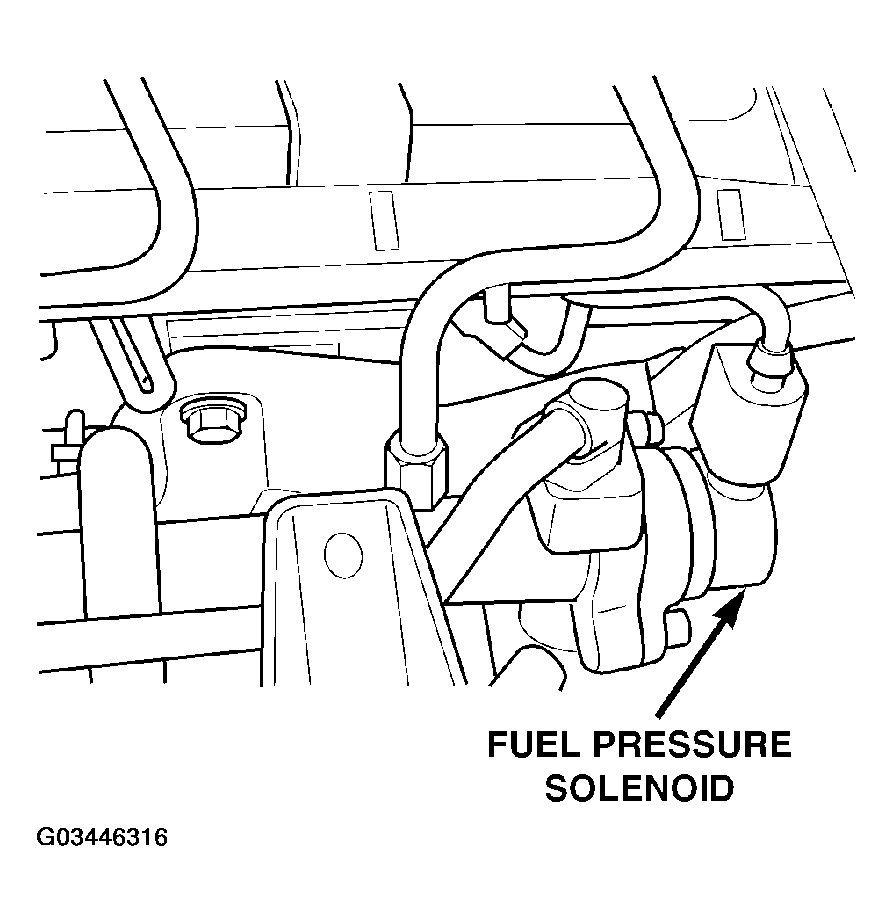

Fig 1: Identifying Fuel Pressure Solenoid
Courtesy of DAIMLERCHRYSLER CORP.

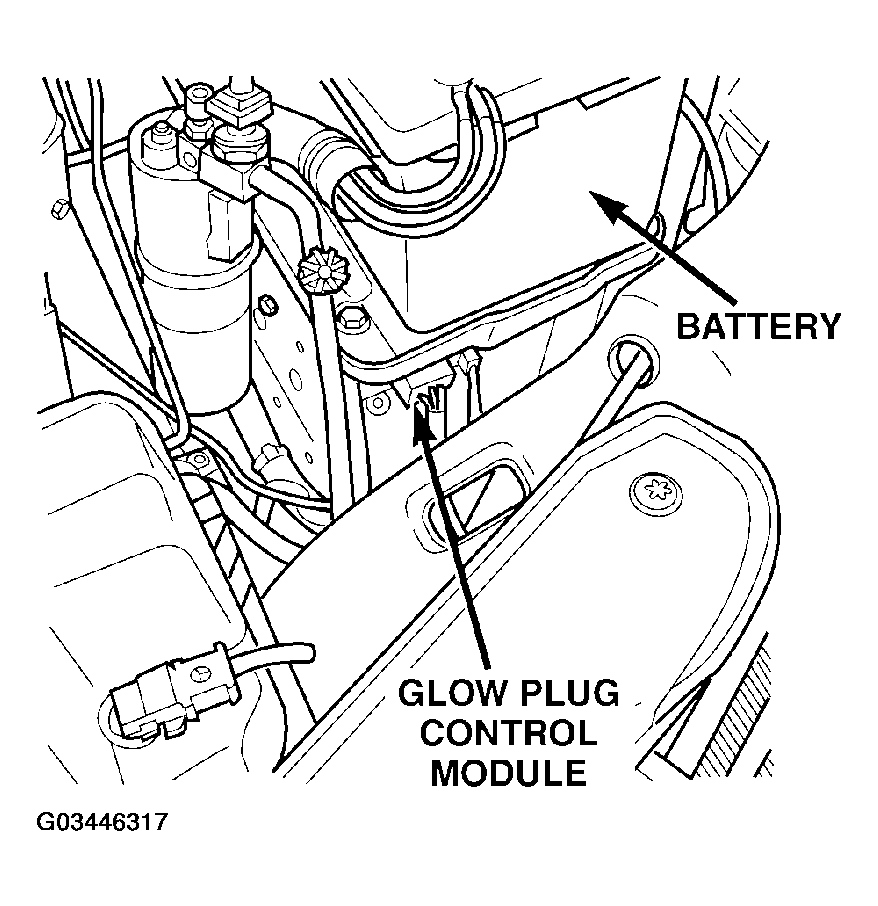

Fig 2: Identifying Glow Plug Control Module
Courtesy of DAIMLERCHRYSLER CORP.

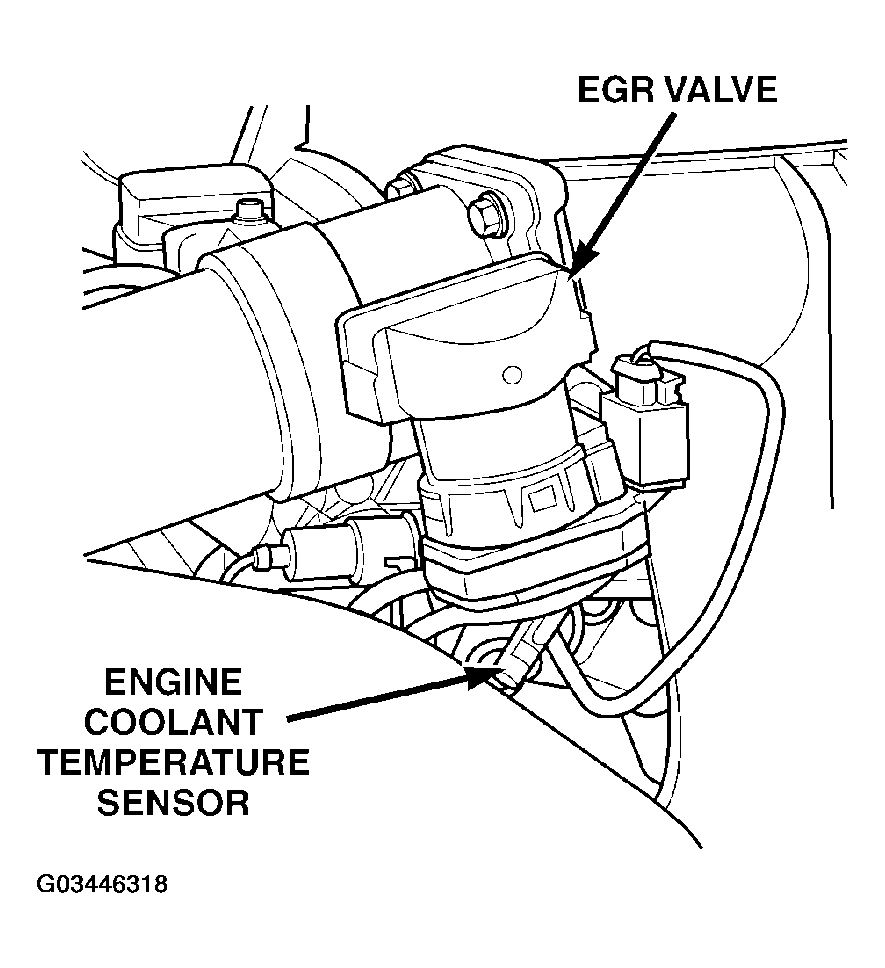

Fig 3: Identifying Engine Coolant Temperature Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Identifying Fuel Injecting Pump
Courtesy of DAIMLERCHRYSLER CORP.

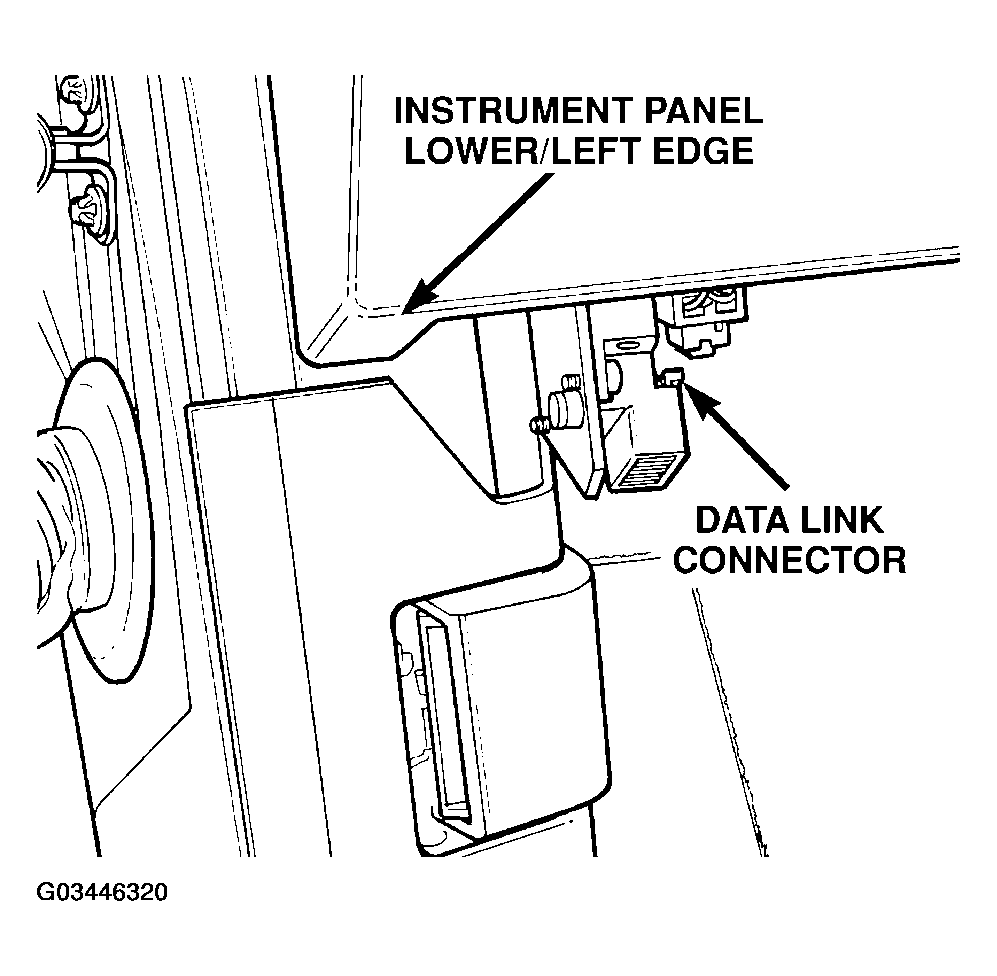

Fig 5: Identifying Data Link Connector
Courtesy of DAIMLERCHRYSLER CORP.

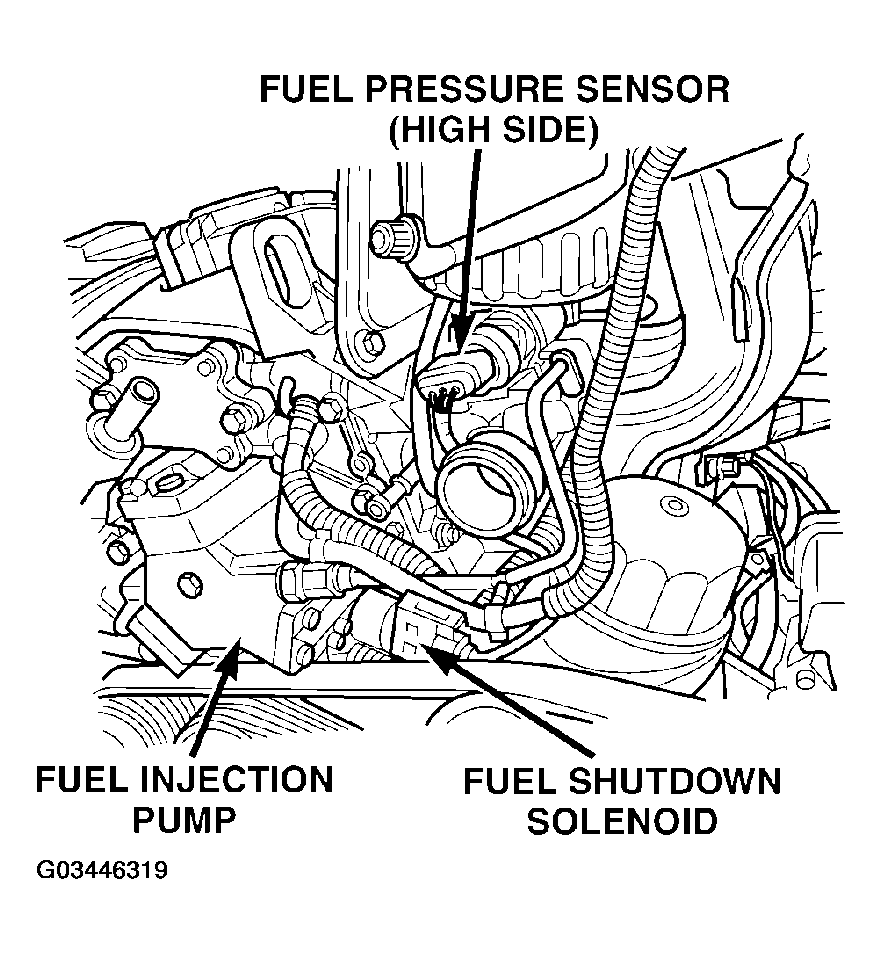

Fig 6: Identifying Fuel Pressure Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
