Remote Keyless Entry Module Connector End View
Remote Keyless Entry Module Connector End View

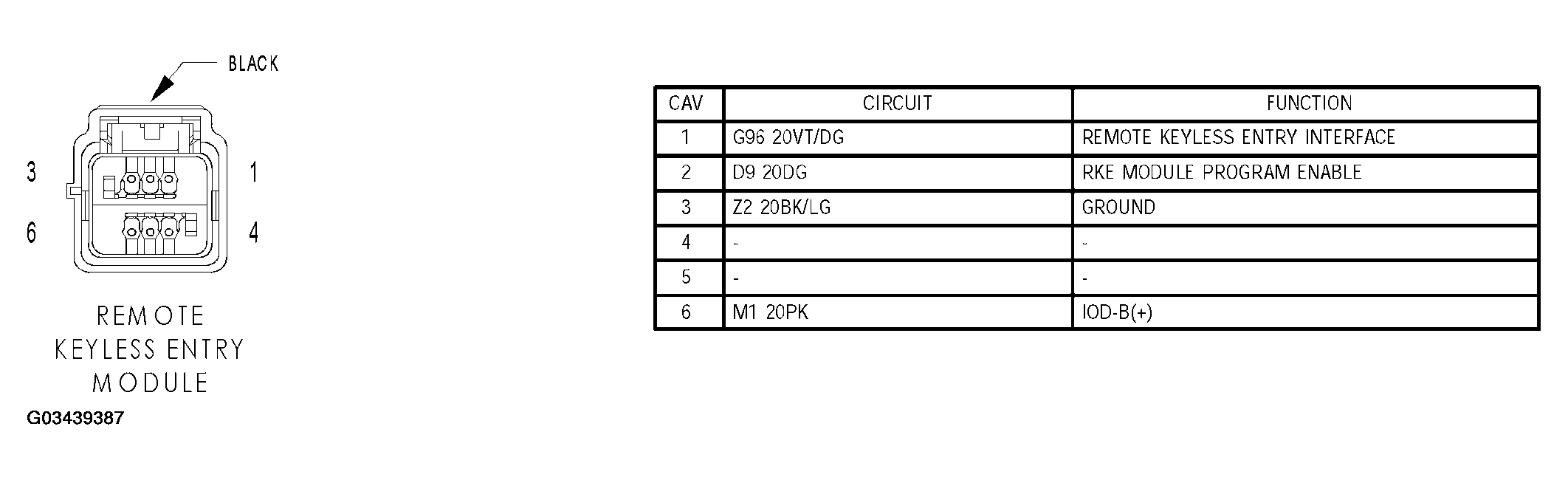

Fig 1: Remote Keyless Entry Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
