Wiper Control Module Connector End View
Wiper Control Module Connector End View

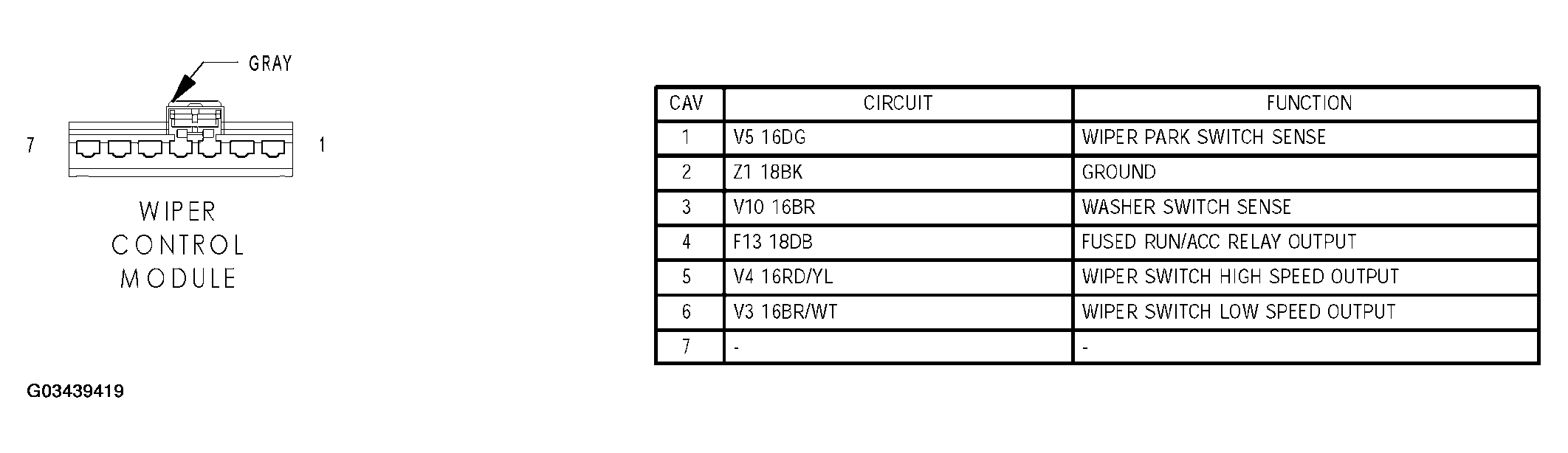

Fig 1: Wiper Control Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
