Body Control Module Connector End View (C2)

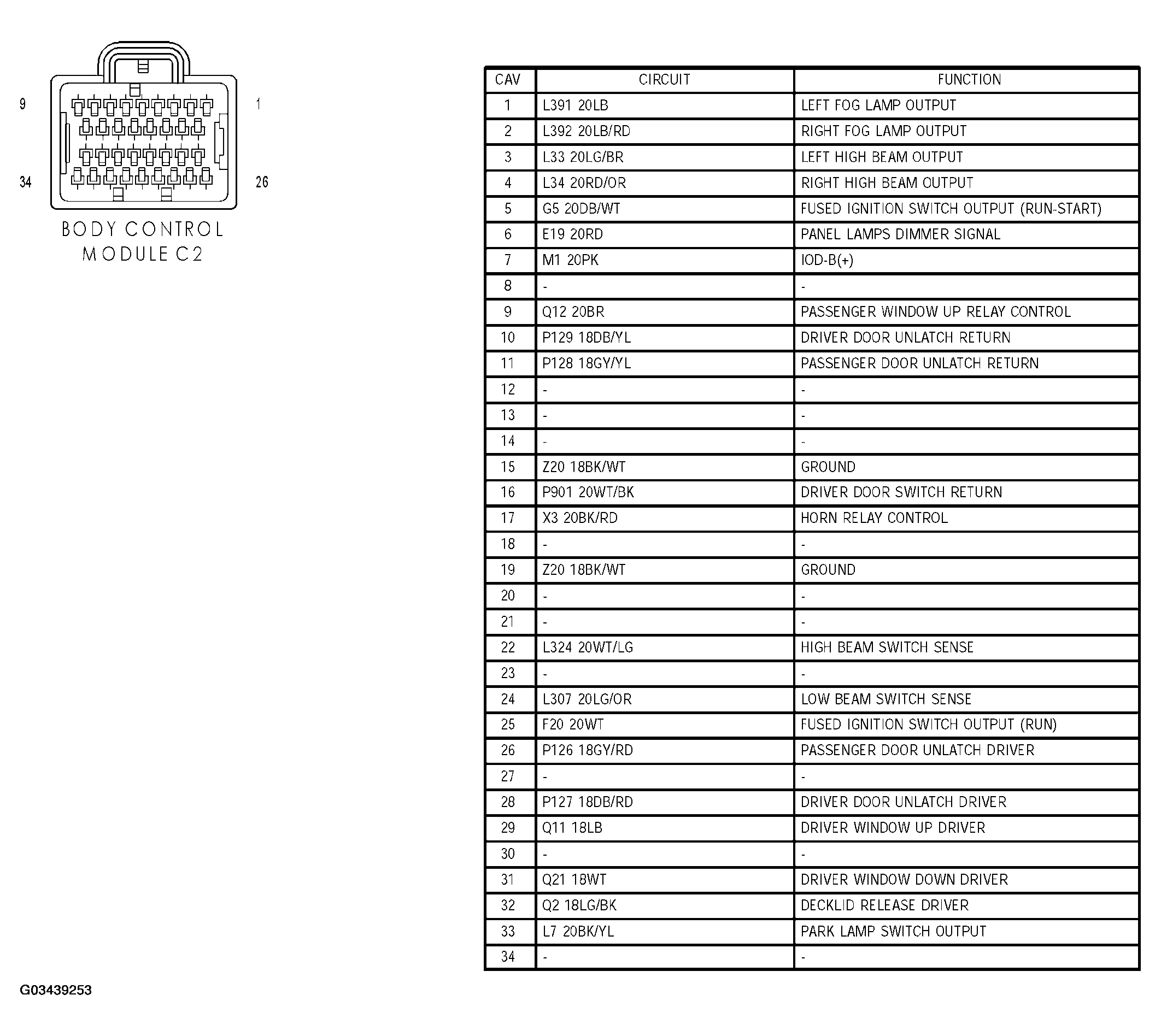

Fig 1: Body Control Module Connector End View (C2)
G03439253Courtesy of DAIMLERCHRYSLER CORP.
