Body Control Module Connector End View (C5)

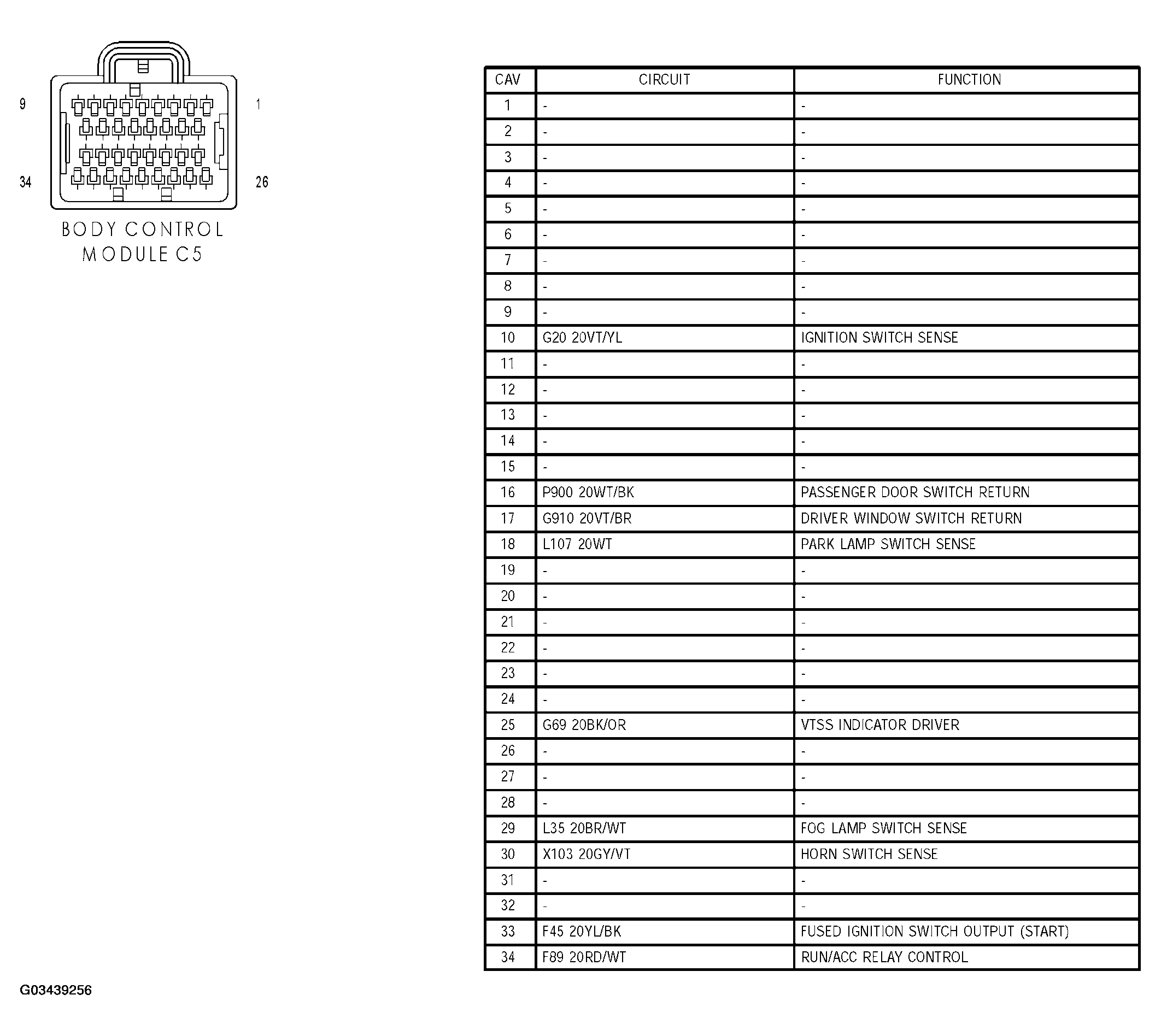

Fig 1: Body Control Module Connector End View (C5)
G03439256Courtesy of DAIMLERCHRYSLER CORP.
