Fuel Tank Module Connector End View
Fuel Tank Module Connector End View

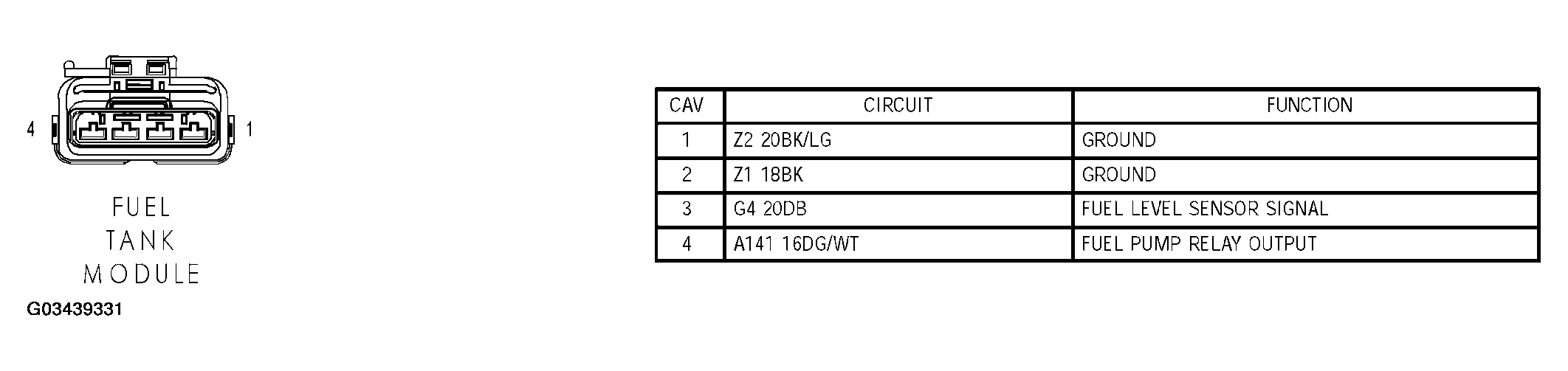

Fig 1: Fuel Tank Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
