Multifunction Switch Connector End View
Multifunction Switch Connector End View

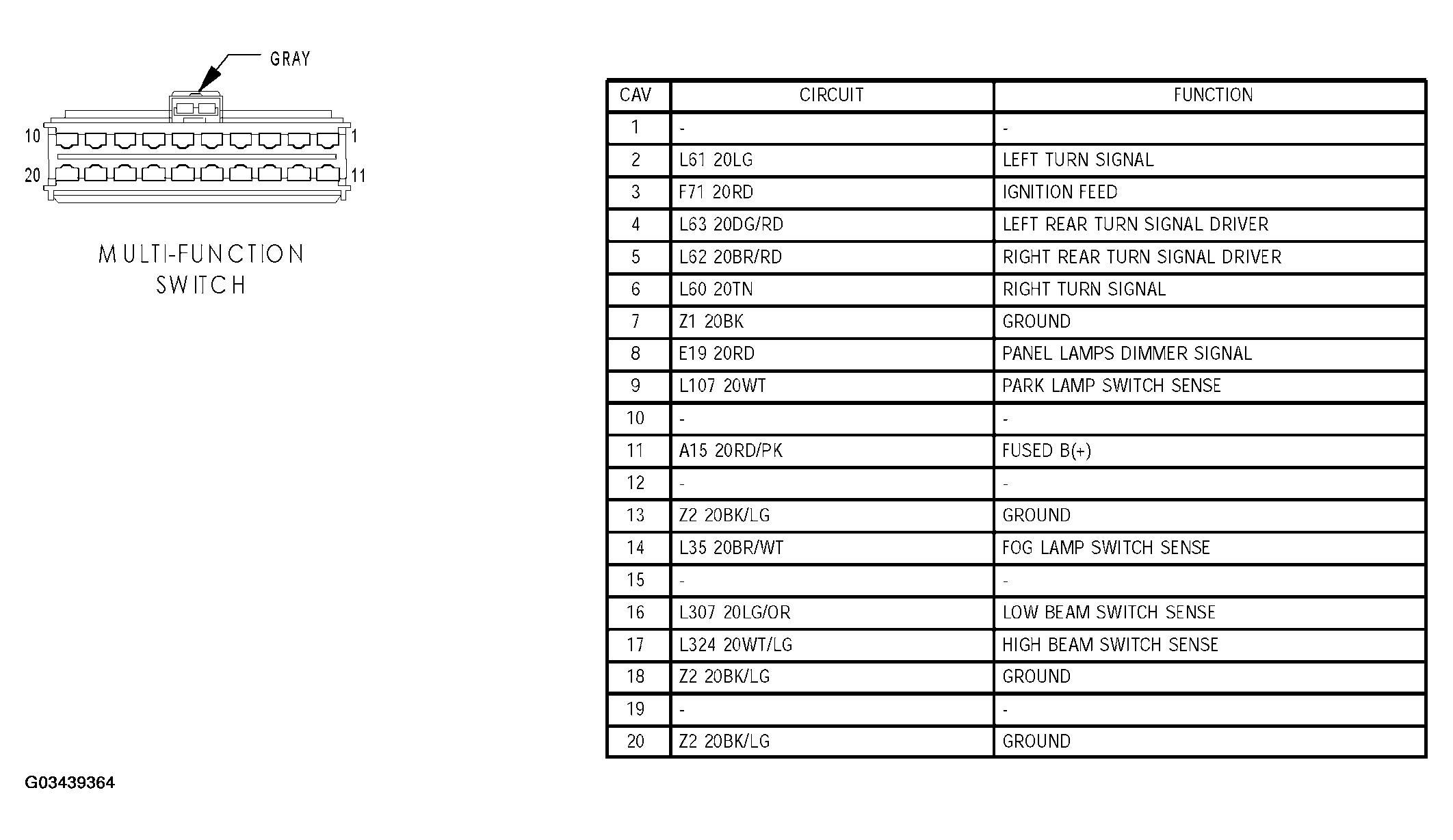

Fig 1: Multifunction Switch Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
