Powertrain Control Module Connector End View (C1)

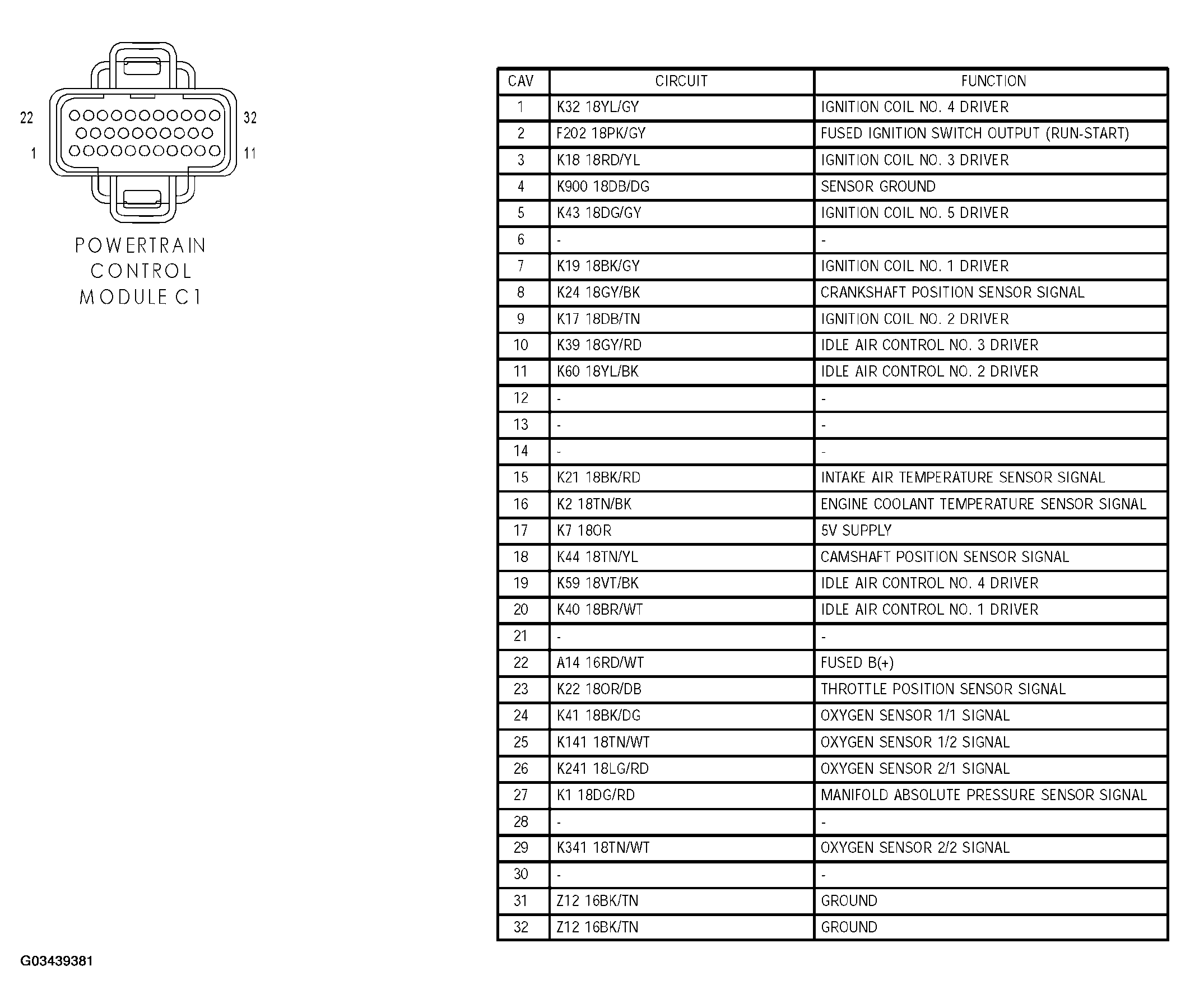

Fig 1: Powertrain Control Module Connector End View (C1)
G03439381Courtesy of DAIMLERCHRYSLER CORP.
