Powertrain Control Module Connector End View (C2)

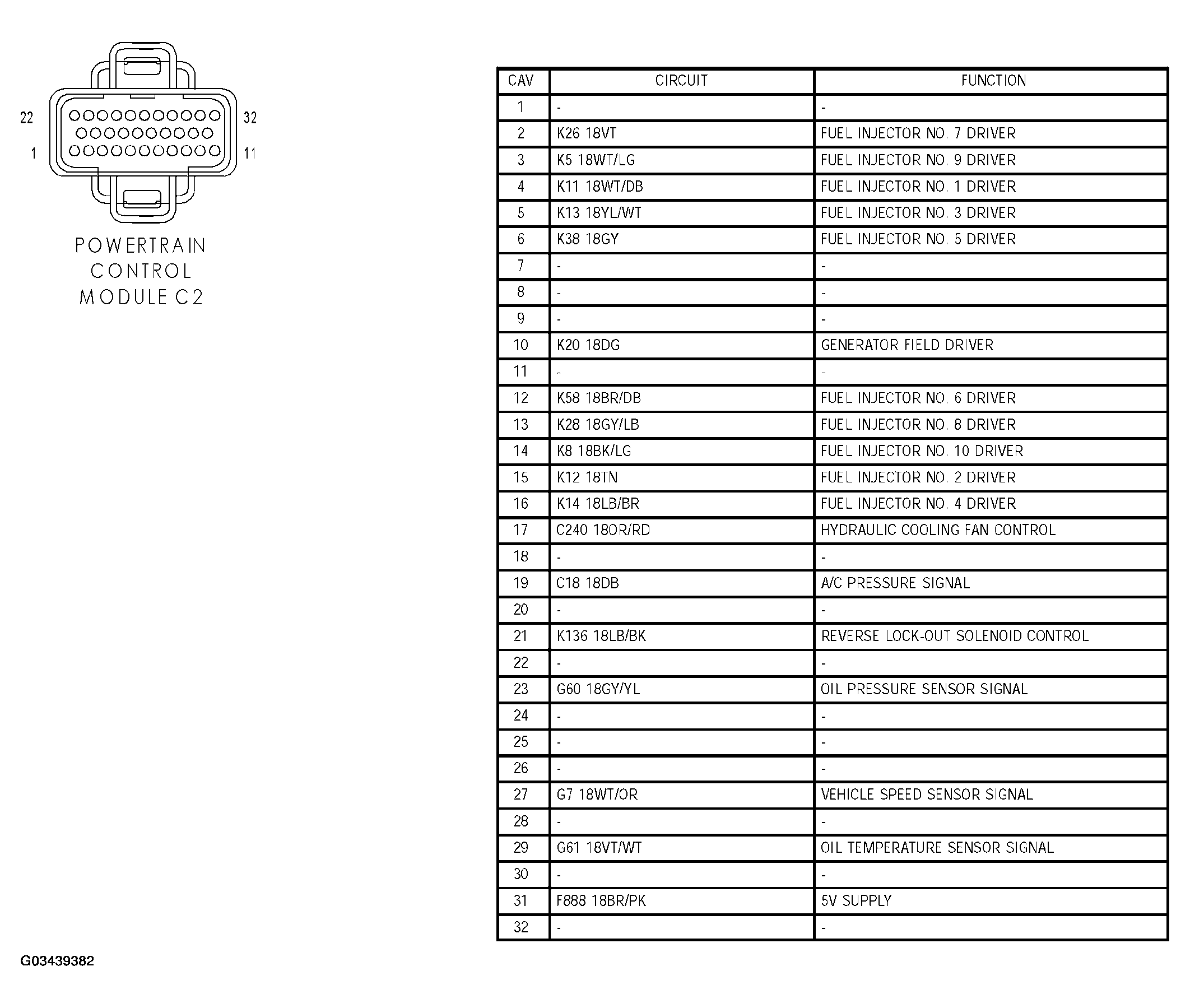

Fig 1: Powertrain Control Module Connector End View (C2)
G03439382Courtesy of DAIMLERCHRYSLER CORP.
