Powertrain Control Module Connector End View (C3)

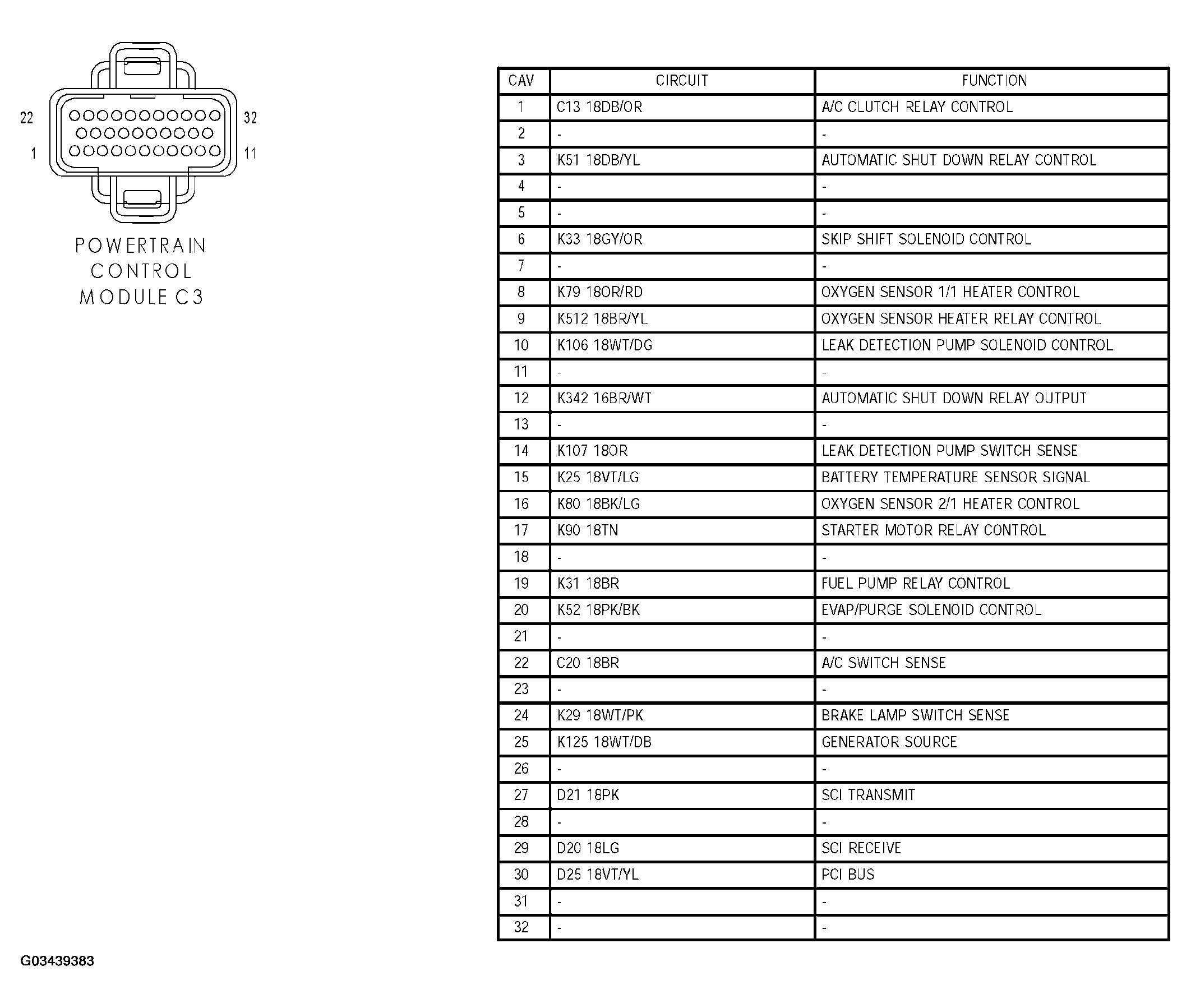

Fig 1: Powertrain Control Module Connector End View (C3)
G03439383Courtesy of DAIMLERCHRYSLER CORP.
