Push Button Starter Switch Connector End View

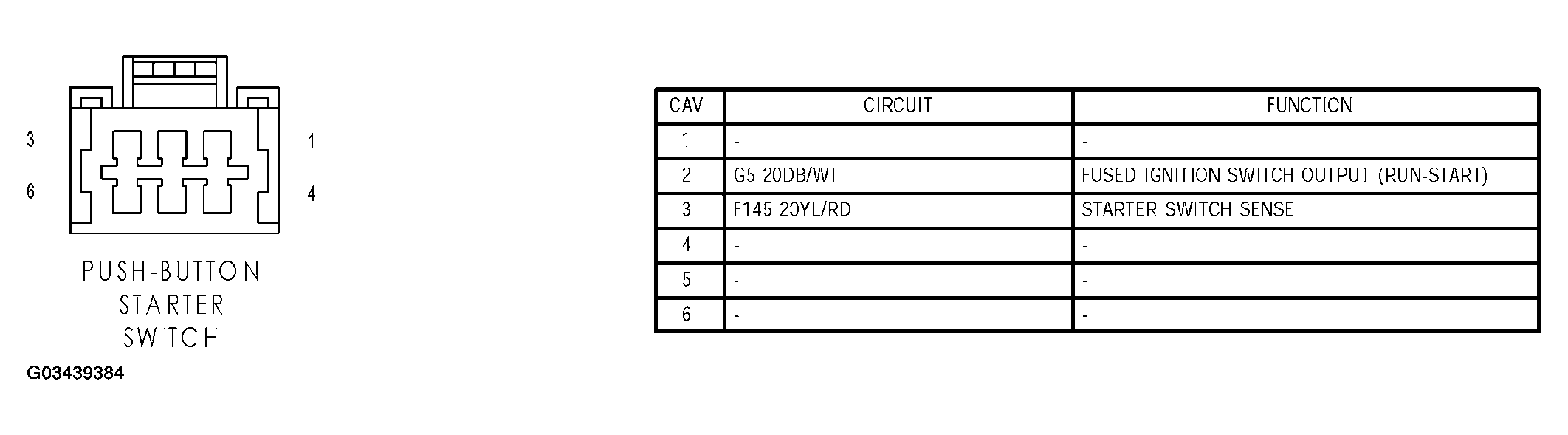

Fig 1: Push Button Starter Switch Connector End View
G03439384Courtesy of DAIMLERCHRYSLER CORP.
