Power Outlet: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Look inside and note position of the retaining bosses (Fig 1 ).
  3. Using external snap ring pliers with 90 degree tips. Insert pliers with tips against bosses and squeeze forcing bosses out of base.

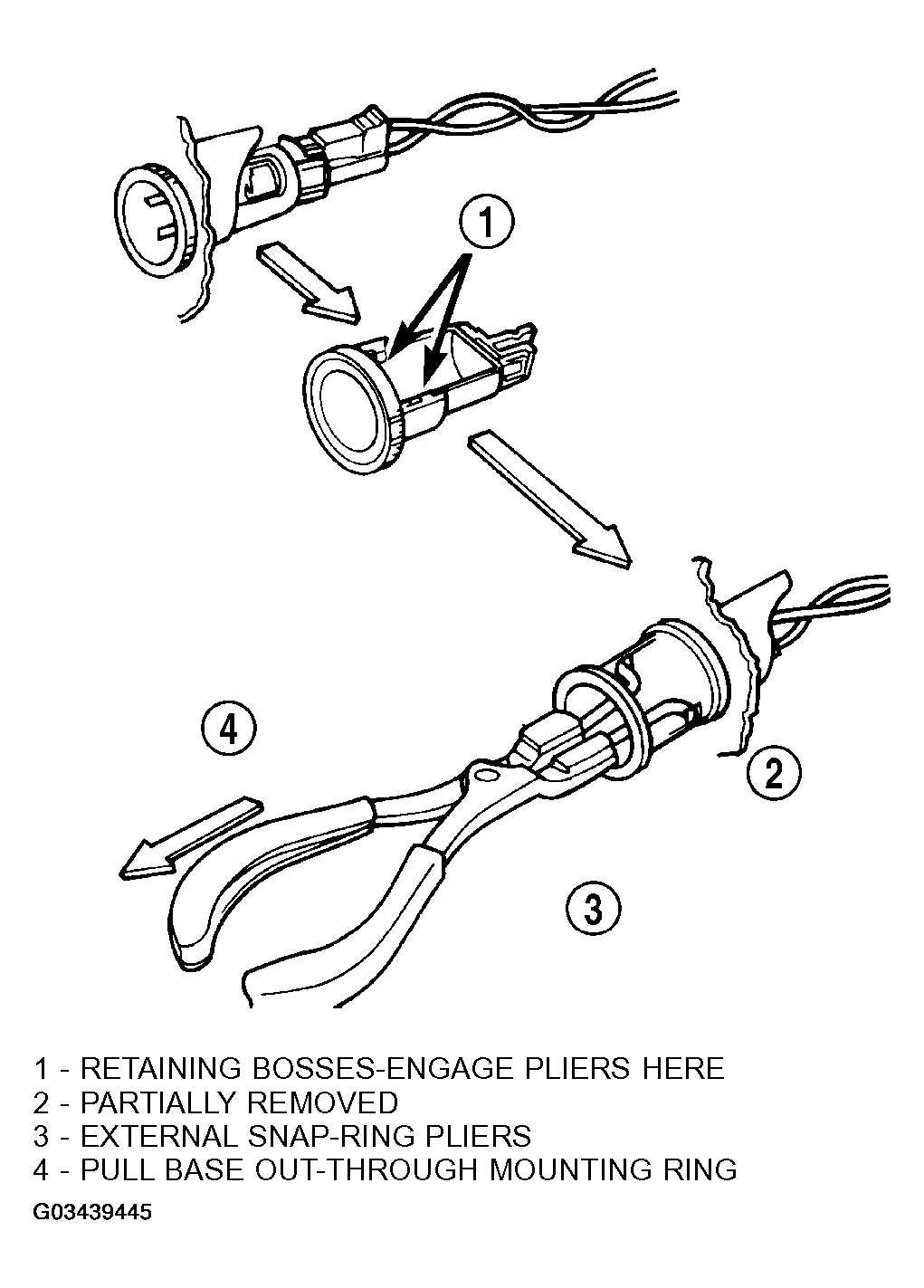

    Fig 1: Removing Power Outlet
    G03439445Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the base wires.
  5. Set base aside and remove base mount ring.
