Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| C100 (40 Pin) | Left toe box. |
| C101 (Natural, 24 Pin) | Left kick panel. |
| C102 (Black, 14 Pin) | At left rear of engine compartment. See Figure. |
| C103 (Gray, 14 Pin) | At left rear of engine compartment. See Figure. |
| C104 (Black, 14 Pin) | At left side of engine compartment. See Figure. |
| C106 (24 Pin) | At left front of engine compartment. |
| C107 (6 Pin) | At right front of engine compartment. |
| C200 (30 Pin) | Right kick panel. |
| C201 (Yellow, 4 Pin) | Right kick panel. |
| C202 (19 Pin) | Under left side of dash. |
| C203 (13 Pin) | Under right side of dash. |
| C204 (13 Pin) | Right kick panel. |
| C205 (Black, 4 Pin) | Under left side of dash. |
| C206 (6 Pin) | Behind center console. |
| C207 (8 Pin) | Right kick panel. |

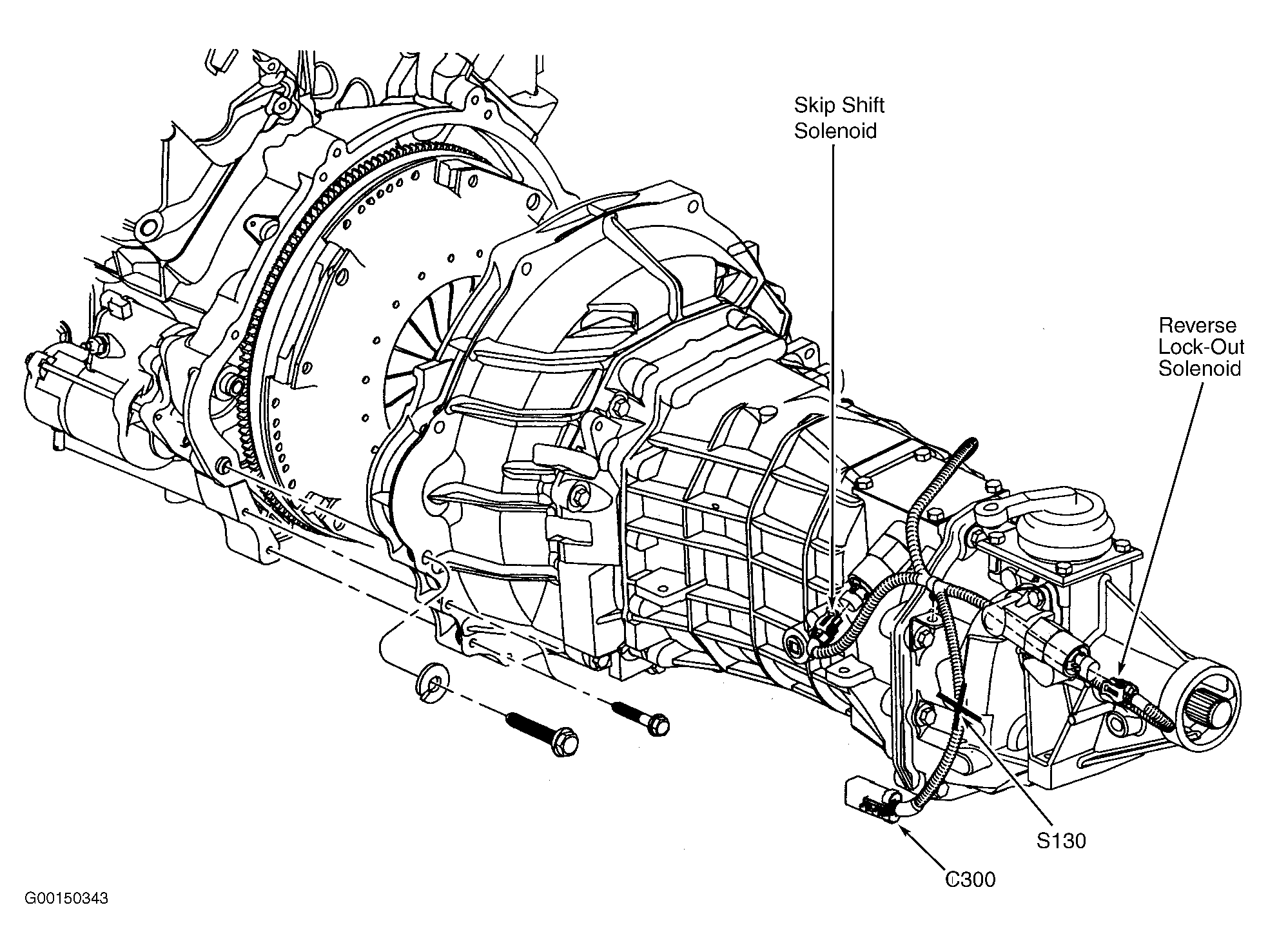

| C300 (Black, 6 Pin) | On left side of transmission. See Figure. |

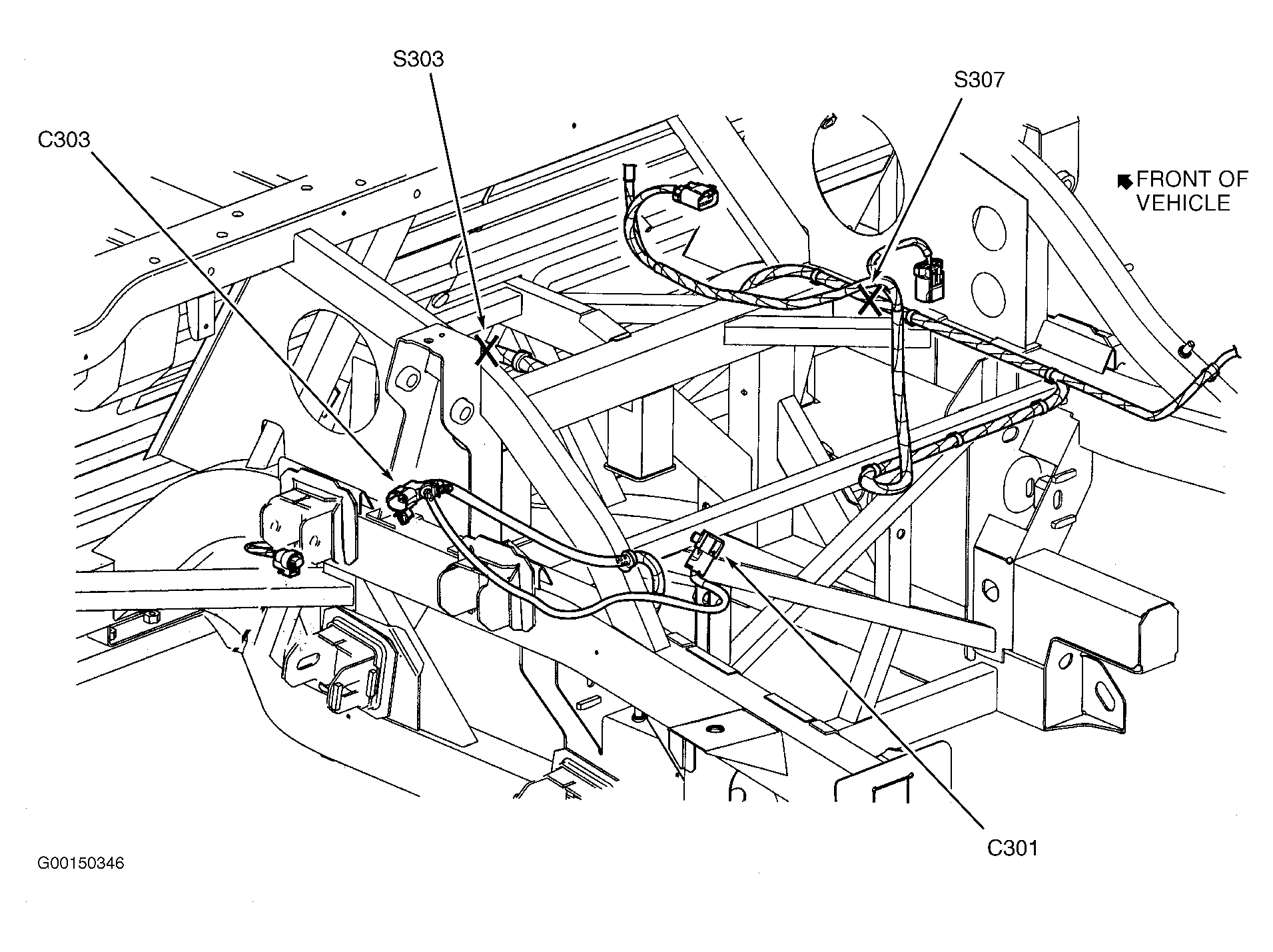

| C301 (6 Pin) | At left rear corner of vehicle. See Figure. |
| C302 (6 Pin) | At right rear corner of vehicle. |
| C303 (6 Pin) | At left side of rear deck. See Figure. |
