Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

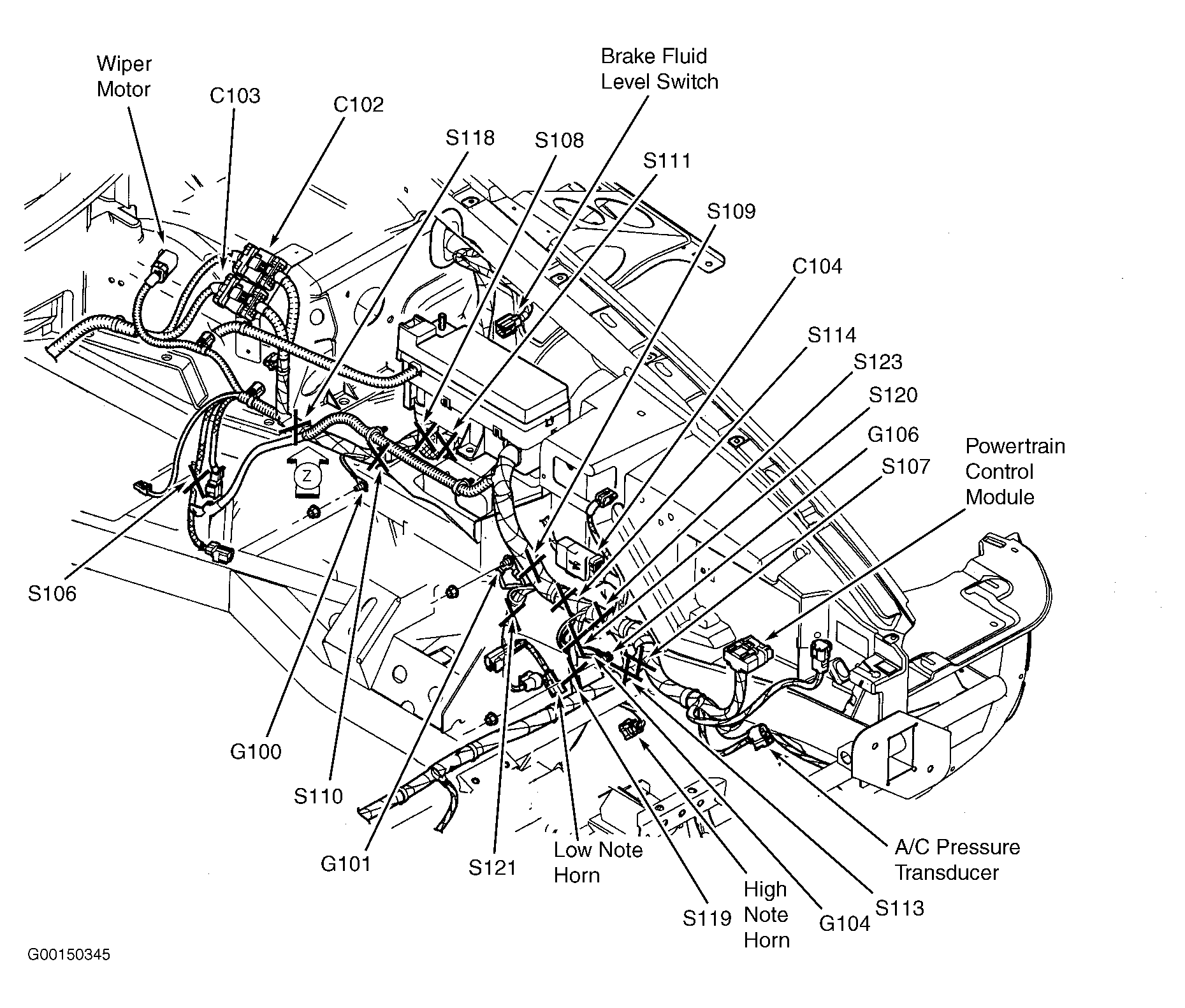

| G100 | On left front frame rail, near breakout for starter motor ground. See Figure. |
| G101 | On left front frame rail, near breakout for low note horn. See Figure. |
| G103 | In left front wheelwell. |
| G104 | On left front frame rail, near breakout for high note horn. See Figure. |
| G105 | On right front frame rail, near washer pump motor. |
| G106 | On left front frame rail, near breakout for high note horn. See Figure. |

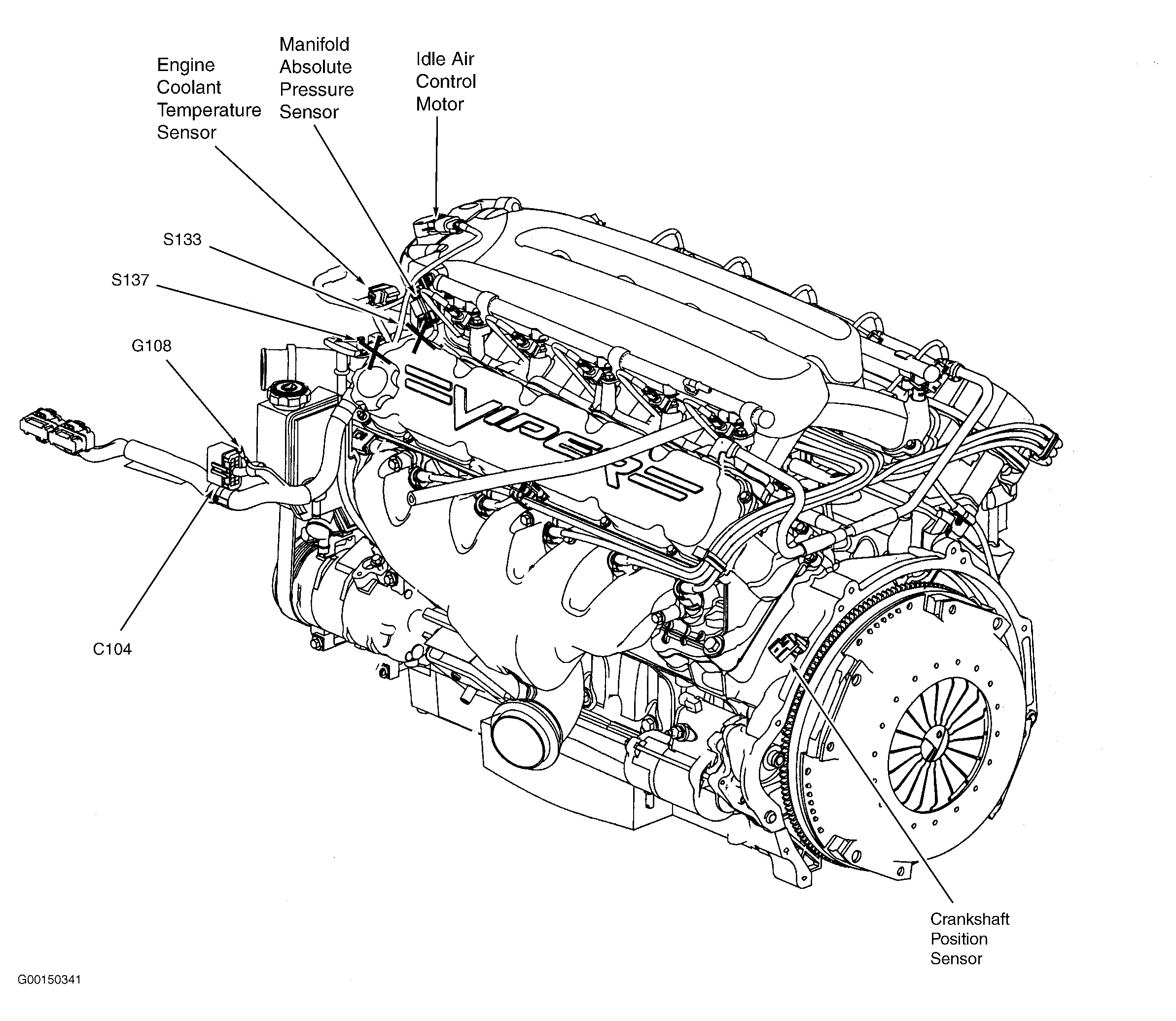

| G108 | Left side of engine compartment, near C104. See Figure. |
| G200 | Under right side of dash. |
| G201 | Under left side of dash. |
| G202 | Behind center console. |

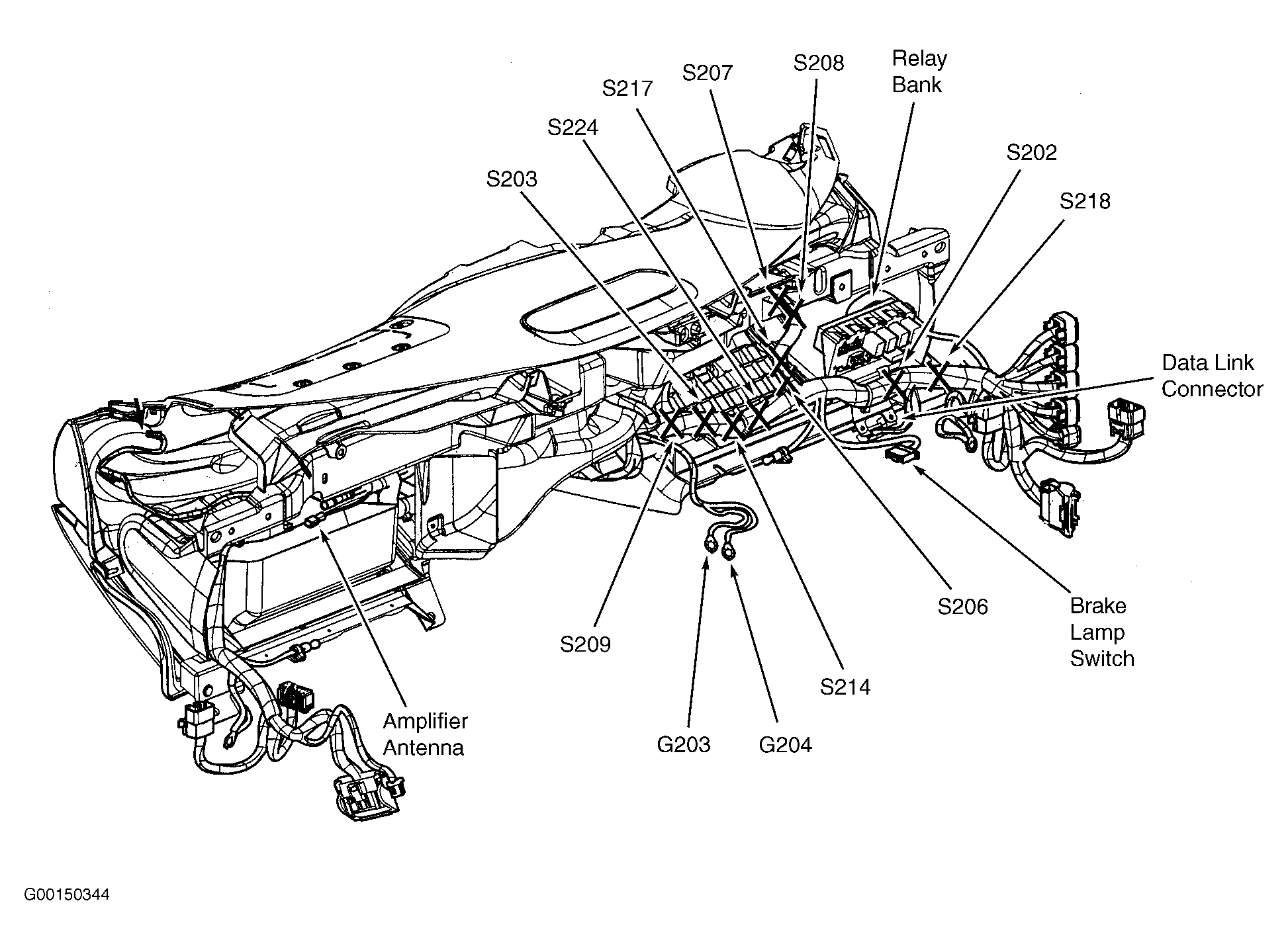

| G203 | Behind center of dash. See Figure. |
| G204 | Behind center of dash. See Figure. |
| G205 | Under passenger seat. |
| G300 | On left rear frame rail, near battery. |
| G303 | Near right rear wheel speed sensor. |
| G304 | On left rear frame rail, near battery. |
