Crankshaft Position Sensor: Removal

The sensor is located at the rear lower passenger side of motor (Fig 1 ).

Fig 1: Locating Crankshaft Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect electrical connector from crankshaft position sensor (Fig 2 ).

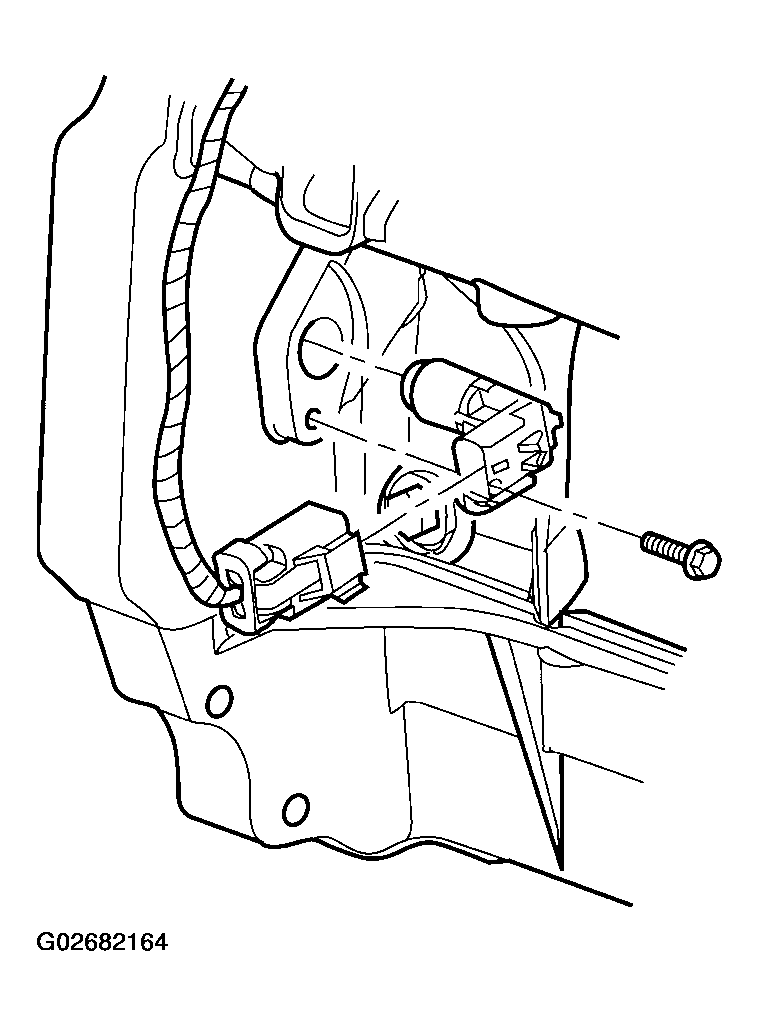

   Fig 2: Disconnecting Electrical Connector From Crankshaft Position Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
2. Remove sensor mounting bolt.
3. Pull sensor out. A light tap to top of sensor may ease removal.
