Fuel Injectors: Description

The fuel injectors are electrical solenoids (Fig 1 ).

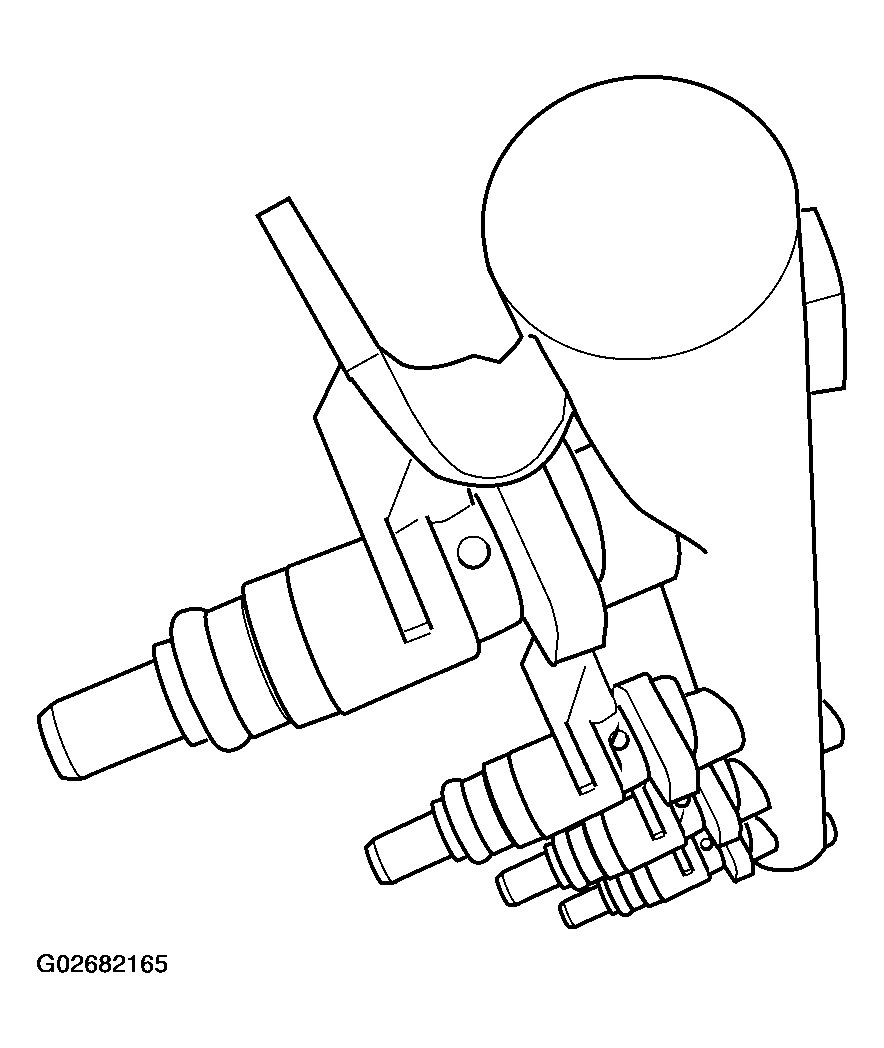

Fig 1: Identifying Fuel Injector & Clip

Courtesy of DAIMLERCHRYSLER CORP.

The injectors are positioned in the intake manifold with the nozzle ends directly above the intake valve port.
