Fuel Injectors: Removal

Release fuel system pressure. Refer to FUEL PRESSURE RELEASE PROCEDURE .
Remove the battery cover and disconnect negative battery cable.
Remove the air cleaner assembly, refer to the AIR CLEANER HOUSING for more information.
Disconnect the electrical connector to the MAP sensor and Coolant Temperature sensor (Fig 1 ).

Fig 1: Disconnecting Map & Coolant Temp. Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the electrical connector to the TPS and Idle Air Control (Fig 2 ).

Fig 2: Disconnecting TPS & Idle Air Control
Courtesy of DAIMLERCHRYSLER CORP.
Remove the wiring harness from the wiring clips under thew throttle body (Fig 3 ).

Fig 3: Removing Wiring Clip
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the electrical connector from the fuel injectors (Fig 4 ).

Fig 4: Disconnecting Fuel Injector Connector
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the fuel line quick connector (Fig 5 ).

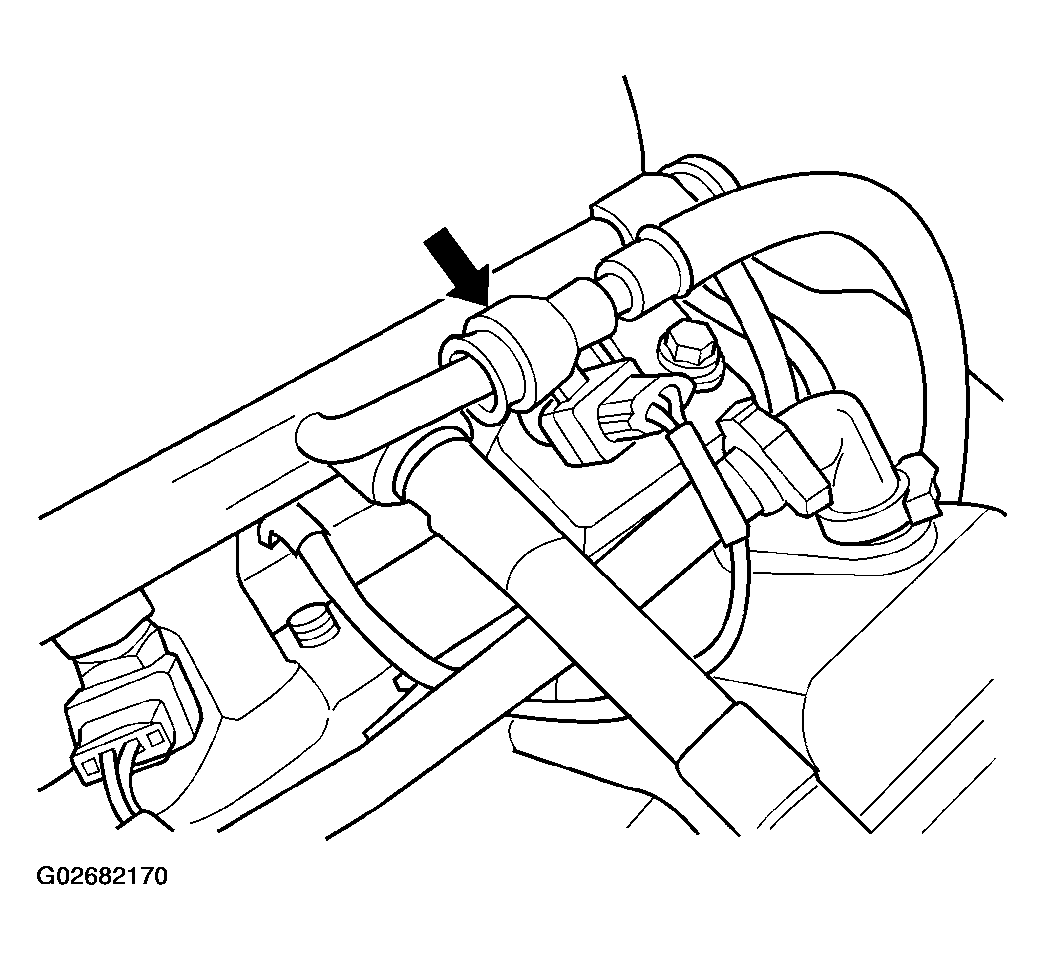

Fig 5: Disconnecting Fuel Connection
Courtesy of DAIMLERCHRYSLER CORP.
Remove the bolts for the fuel rail (Fig 6 ).

Fig 6: Removing Fuel Rail
Courtesy of DAIMLERCHRYSLER CORP.
Pull fuel rail and injectors straight up and out of the intake manifold.
Move the fuel rail forward and out from under the intake manifold and throttle body (Fig 7 ).

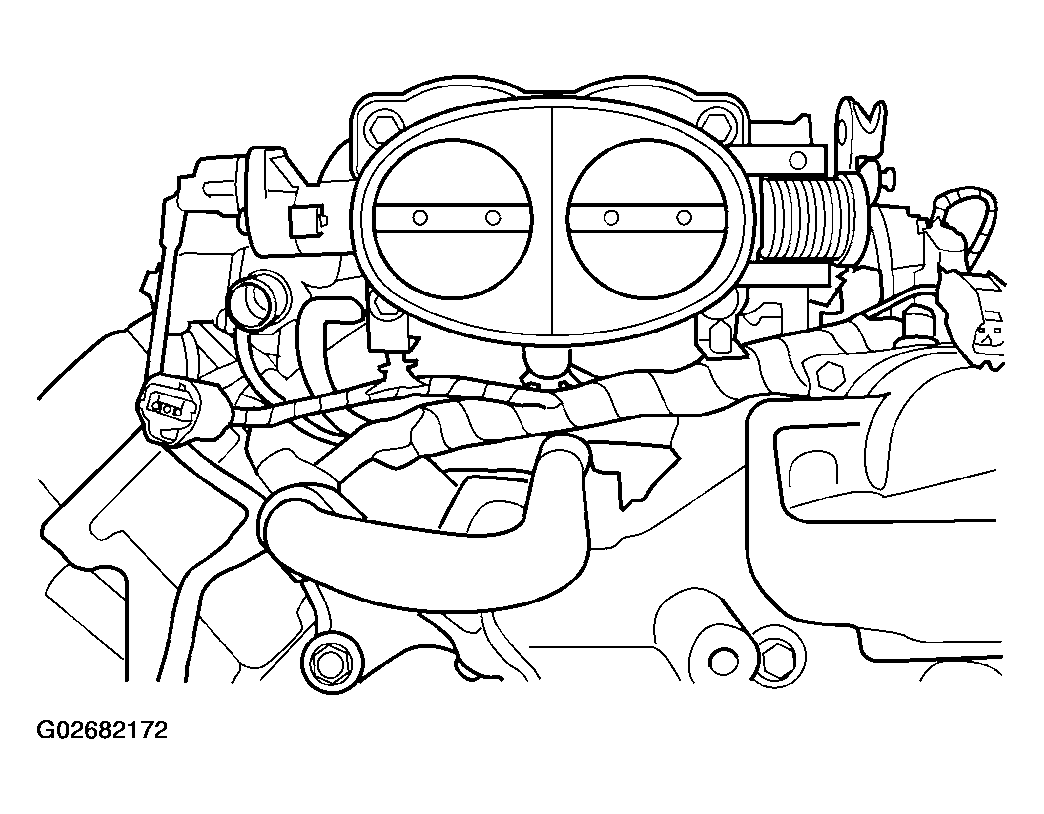

Fig 7: Identifying Throttle Body
Courtesy of DAIMLERCHRYSLER CORP.
Remove the fuel injector from the fuel rail (Fig 8 ).

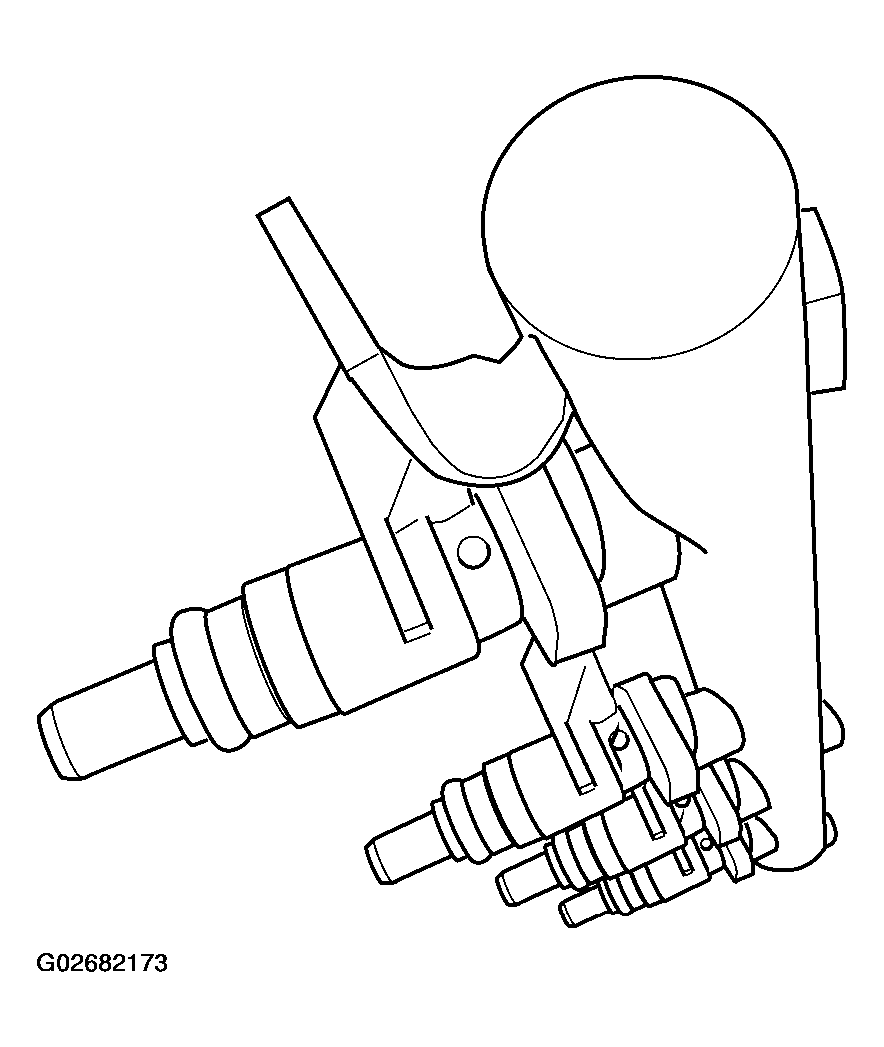

Fig 8: Identifying Fuel Injector & Clip
Courtesy of DAIMLERCHRYSLER CORP.
