Idle Air Control Motor: Installation

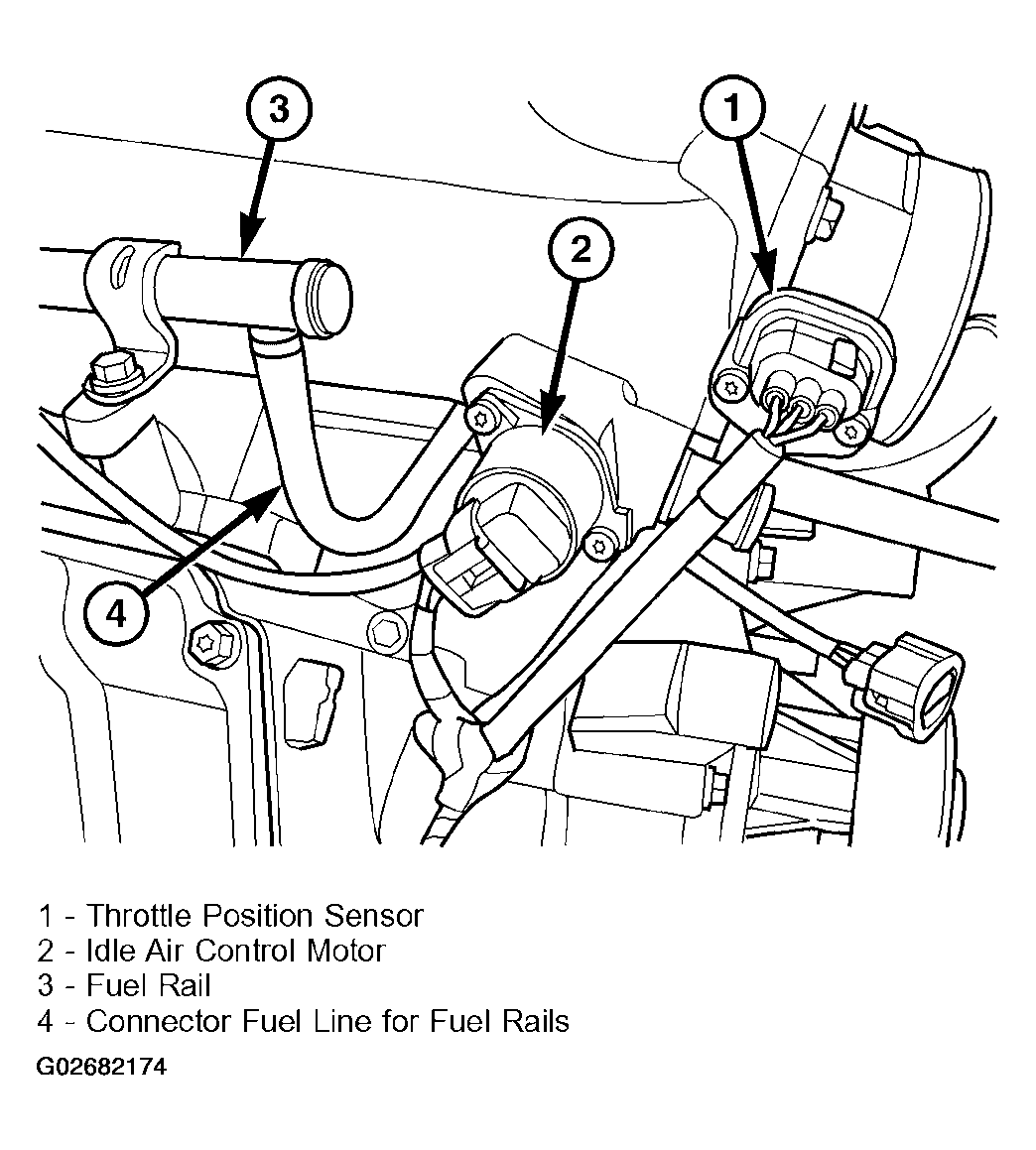

The IAC motor is inserted into a housing at the front of the intake manifold (Figure ). The IAC motor and housing are serviced together.

1. Attach electrical connector to IAC motor.
2. Install IAC motor into and housing on manifold. Tighten mounting screws to 4 N.m (35 in. lbs.) torque.
