Antilock Brake Controller Connector End View
Antilock Brake Controller Connector End View

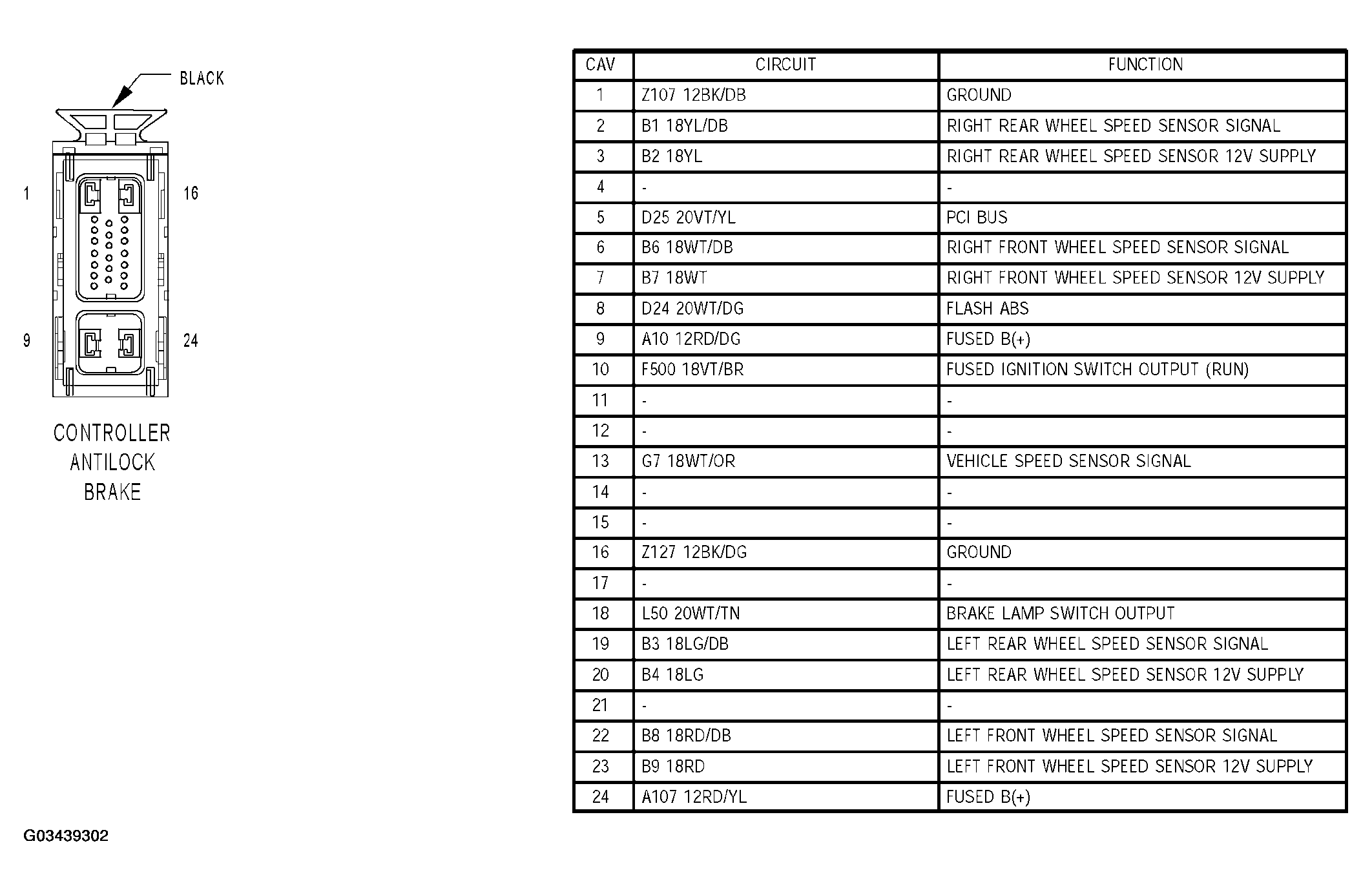

Fig 1: Antilock Brake Controller Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
