ORC Airbag Control Module Connector End View

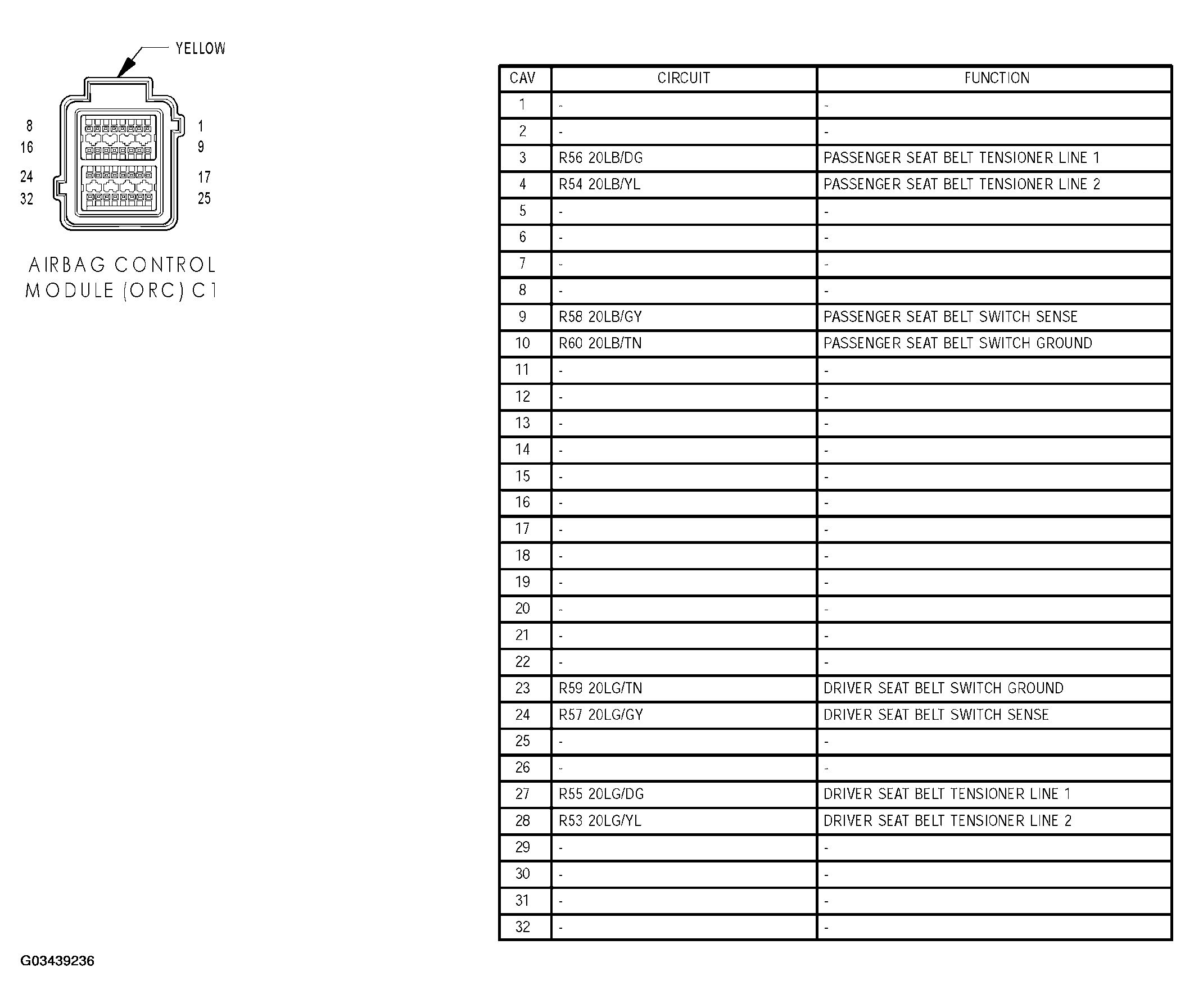

Fig 1: ORC Airbag Control Module Connector End View
G03439236Courtesy of DAIMLERCHRYSLER CORP.

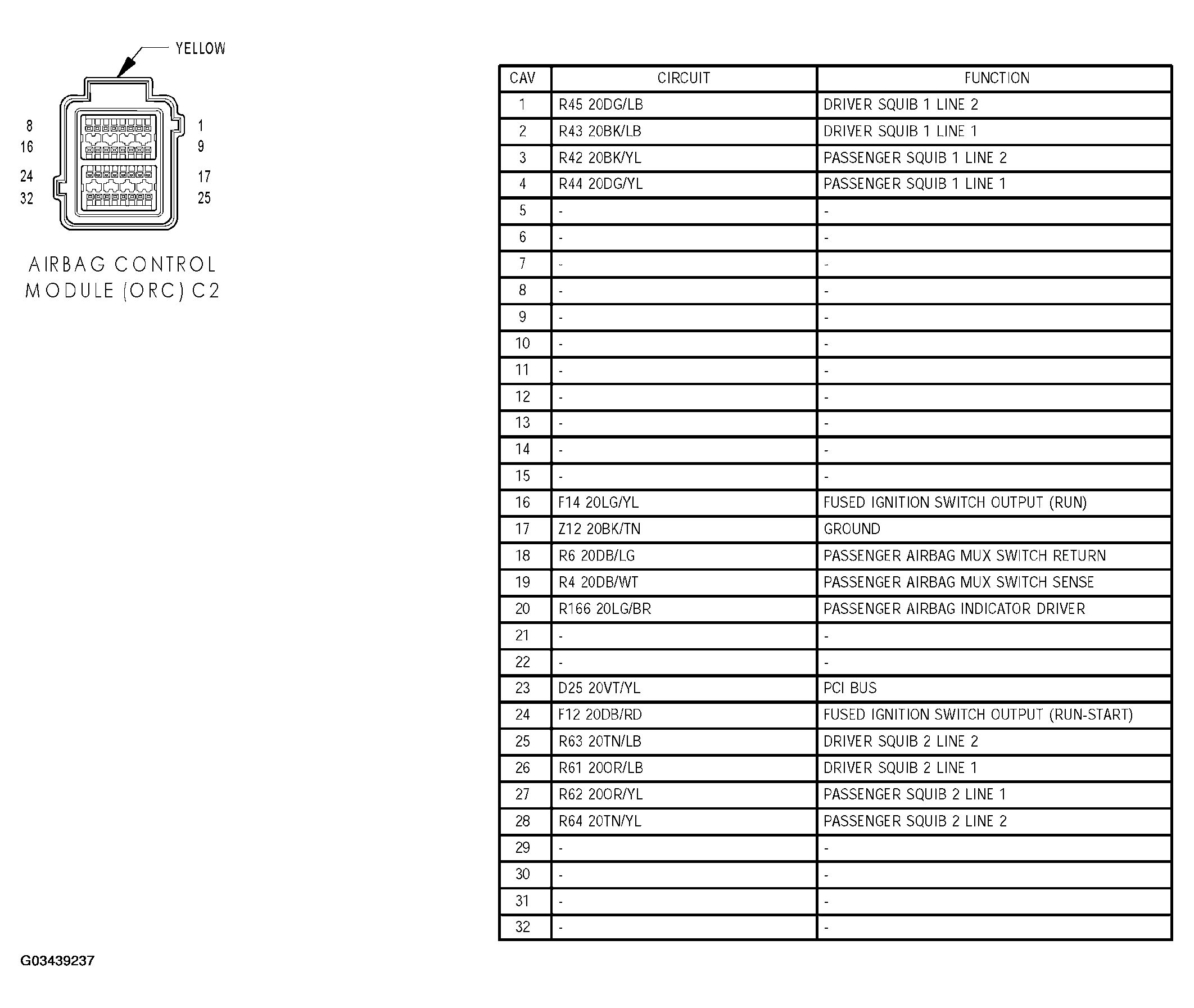

Fig 1: ORC Airbag Control Module Connector End View
G03439237Courtesy of DAIMLERCHRYSLER CORP.
