Pinch Sensor: Description

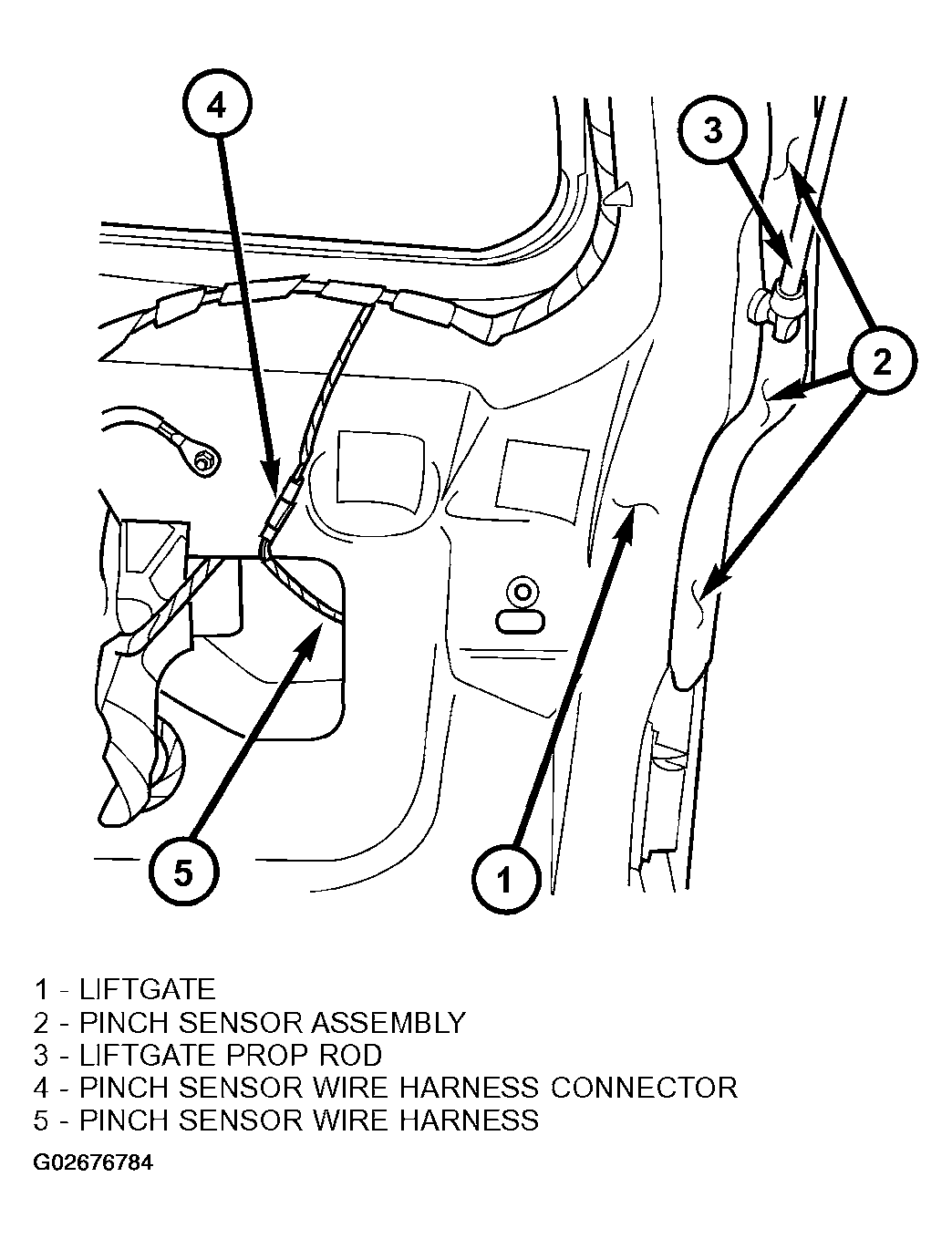

Vehicles equipped with a power liftgate utilize two pinch sensors, one is located on each side of the lift-gate (Fig 1 ). These sensors look like weather-strips, however they consist of pieces of electrically conductive rubber (tapeswitch), wires, resistor, double sided tape, and a plastic carrier. They are used to indicate an obstruction during a power close cycle.
