Firing Order

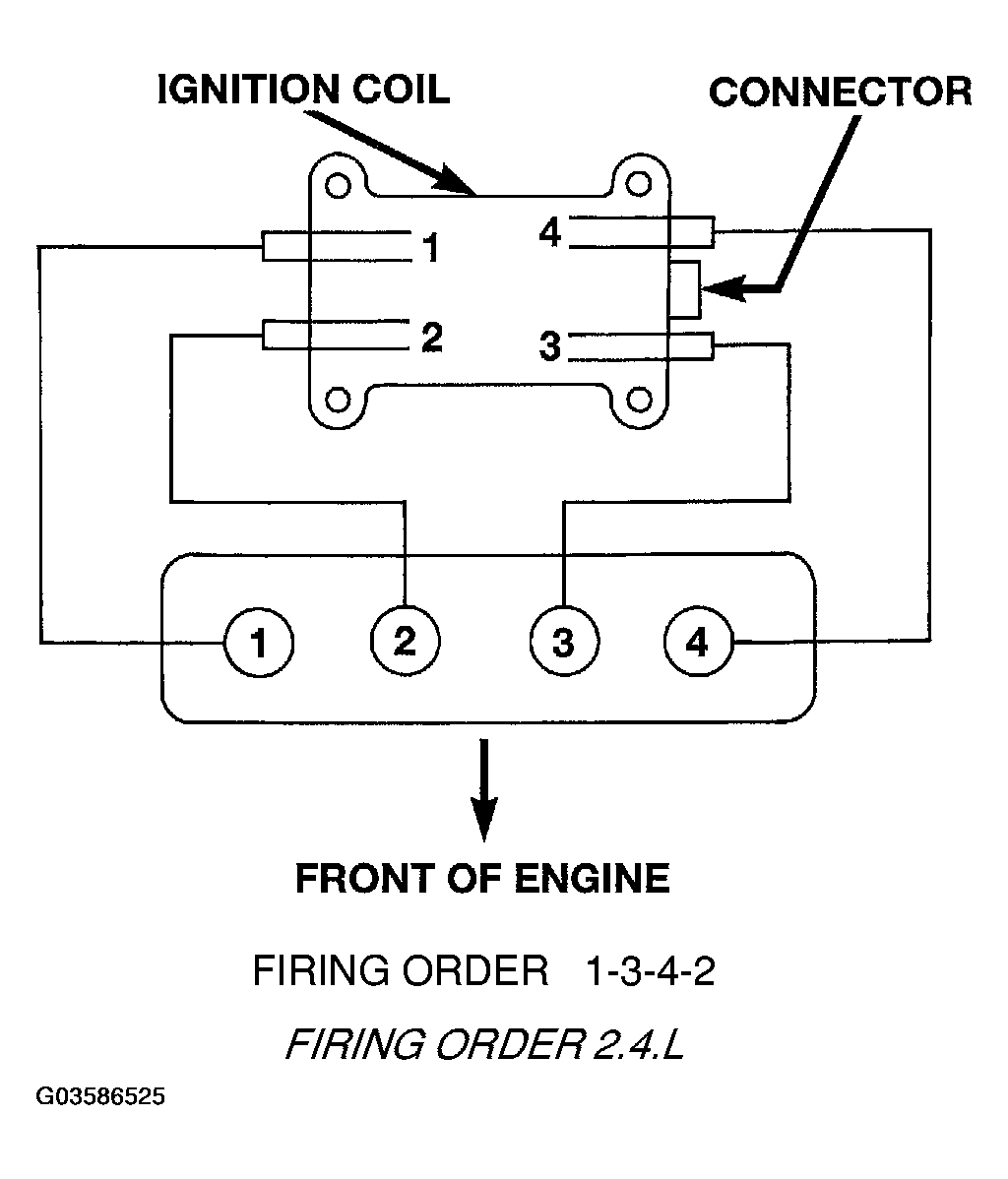

Fig 1: Identifying Firing Order 1-3-4-2 (2.4L)
G03586525Courtesy of DAIMLERCHRYSLER CORP.

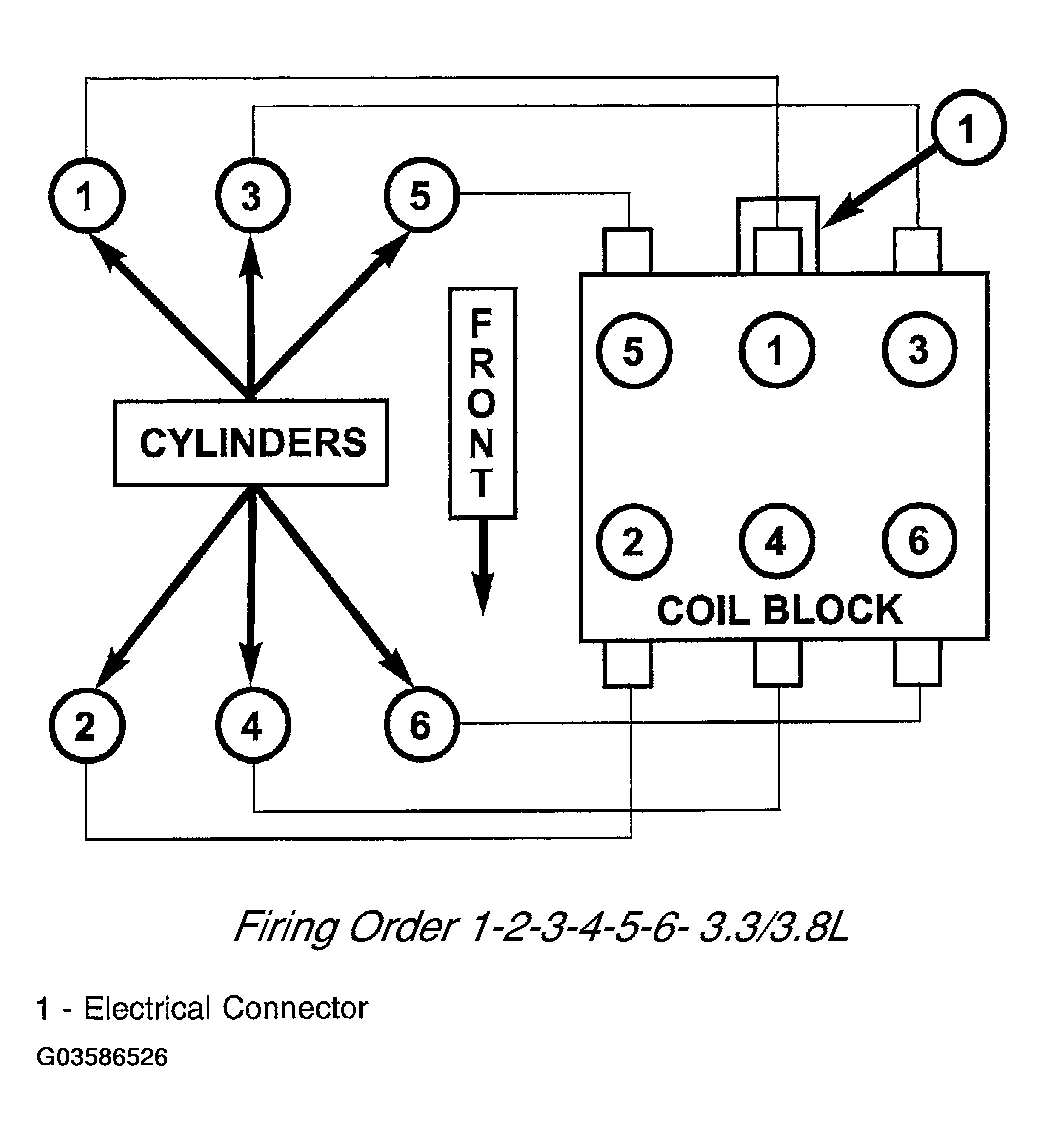

Fig 2: Identifying Firing Order 1-2-3-4-5-6 3 (3/3.8L)
G03586526Courtesy of DAIMLERCHRYSLER CORP.
