Control Modules And Fuse & Relay Center

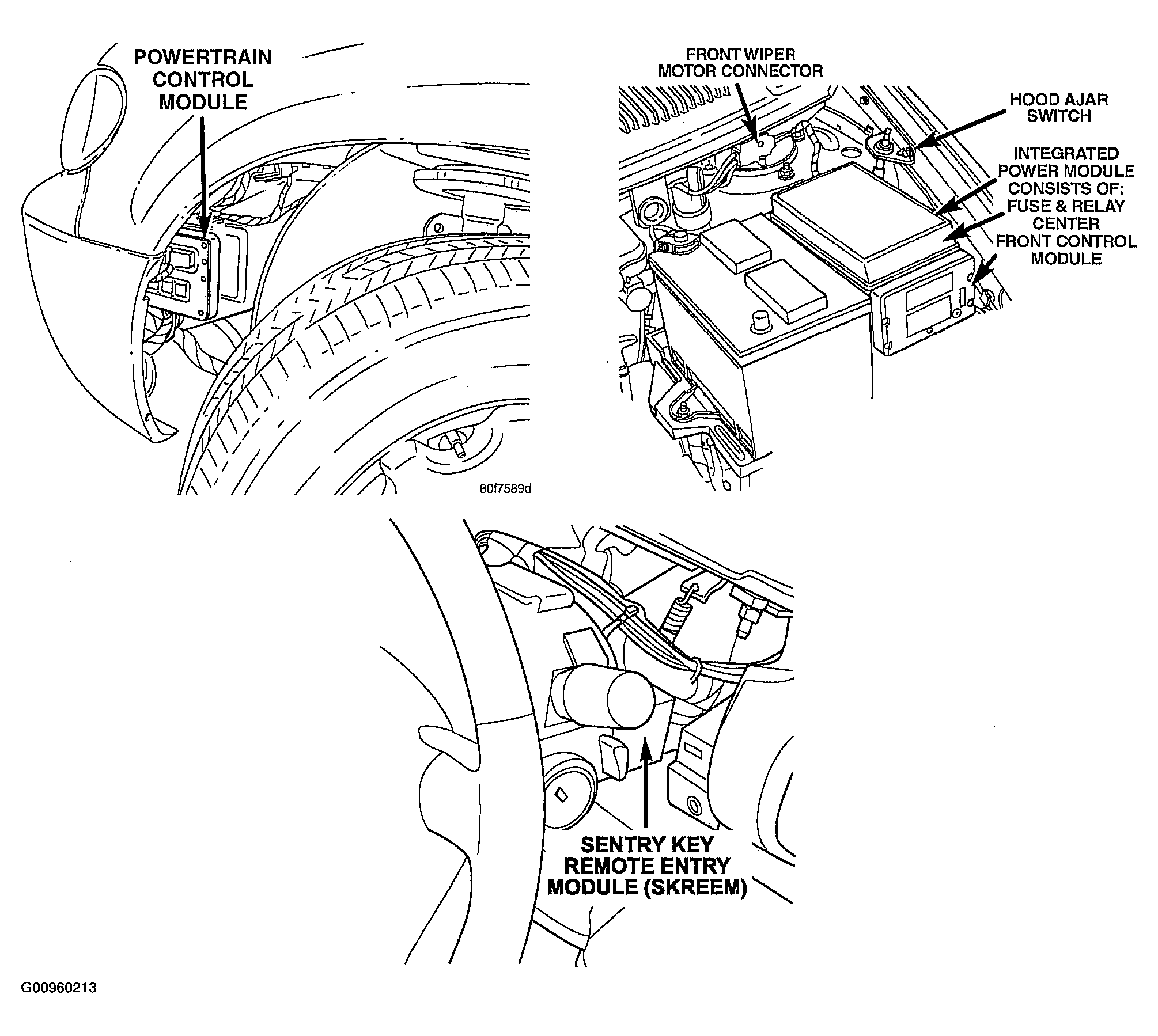

Fig 1: Identifying Control Modules And Fuse And Relay Center Location
G00960213Courtesy of DAIMLERCHRYSLER CORP.
